Beam spotlight with 1° beam angle, 150 W LED, color wheel, gobos and rotating prism
EUROLITE LED TMH-X18 Moving-Head Beam

svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
EUROLITE

Beam spotlight with 1° beam angle, 150 W LED, color wheel, gobos and rotating prism

EUROLITE LED TMH-X18 Moving-Head Beam

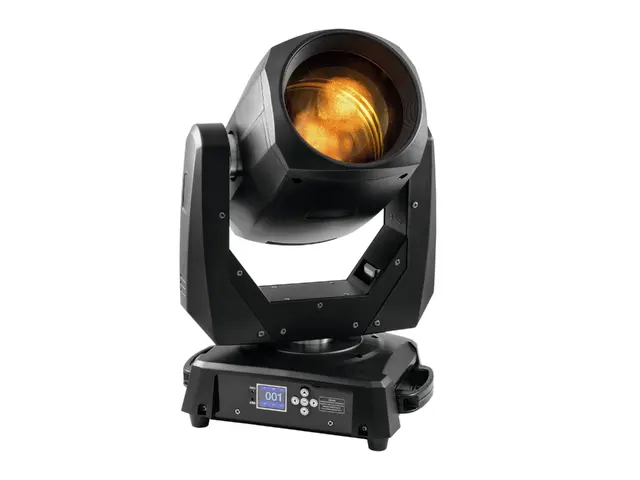

EUROLITE LED TMH-X18 cover image

TMH-X18

Powerful beam


With the TMH-X18, you get a beamlight with an extremely narrow beam angle of only 1°. Thanks to its white 150 W COB LED, the compact moving head produces a sharply defined light beam that is also very effective on larger stages.
Versatile possibilities
Multiply the sharp image with the 8-fold rotating prism or use the gobo wheel with 13 static gobos (plus open). The colour wheel with 13 dichroic colour filters, the frost filter and strobe effect provide additional options for your light design.
EUROLITE LED TMH-X18 effect image 1
EUROLITE LED TMH-X18 effect image 2
Excellent value for money
Ultimately, this beam moving head scores with its excellent mix of high-quality components, strong light output and fair price. It is particularly suitable for medium-sized stages, clubs and discotheques that want to get the most out of their financial possibilities.
Features

Beam spotlight with 1° beam angle, 150 W LED, color wheel, gobos and rotating prism

  • Equipped with a white 150 W COB LED
  • Lightbeam with 1° radiation angle
  • Positioning within 540° PAN and 270° TILT
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Rotating 8-facet prism
  • The prism rotates in both directions and at different speeds
  • Frost-filter
  • Strobe effect with 1-18 flashes per second
  • Internal programs
  • Dimmer
  • Motorized focus
  • Automatic position correction
  • Control board with LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT-Reverse, Program, Reset
  • P-Con terminals for power linking up to 8 units
  • 1 powerful LED 150 W COB (chip-on-board) color wheel
  • Auto position correction (feedback)
  • Exact positioning (16 bit resolution)
  • Gobo wheel with static gobos; Prism 8-fold; frost filter; Focus motor-driven
  • Strobe effect
  • Color wheel with 13 dichroic filters plus open
    Switchable color change (mode 1: only full colors, mode 2: color-change at every position)
  • Gobo wheel with static gobos, 13 gobos und open
    shake effect
  • The device is cooled by cooling fan
  • Control via DMX; stand-alone; Sound to light via Microphone
  • Preprogrammed in Light´J; LED PC-Control 512; Light Captain
  • Flicker-free
  • With a beam angle of 1°

Package contents

  • 1 x omega bracket
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:210 W
IP classification:IP20

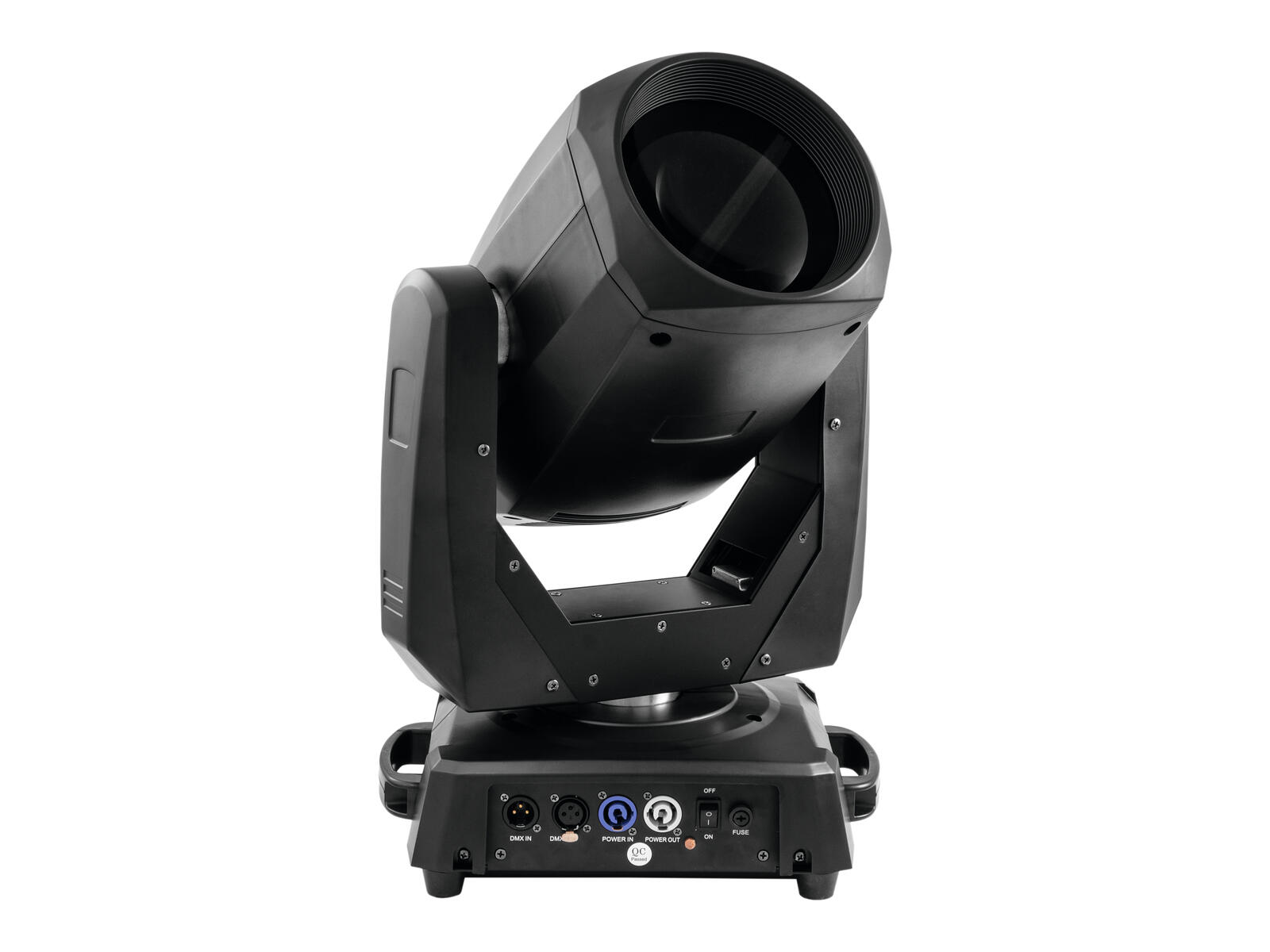

Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:1 x P-Con (gray), mounting version
Lamp type:LED lamp
LED:1 x 150 W COB (chip-on-board) color wheel
Color temperature:6000K
Max. TILT movement:270° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement:540° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate:0 - 18 Hz
Equipment:Gobo wheel with static gobos; Prism 8-fold; frost filter; Focus motor-driven
Color generation:Color wheel with 13 dichroic filters plus open
Switchable color change (mode 1: only full colors, mode 2: color-change at every position)
Gobos:Gobo wheel with static gobos, 13 gobos und open
Shake effect
DMX channels:14
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:DMX; stand-alone; Sound to light via Microphone
Preprogrammed in:Light´J; LED PC-Control 512; Light Captain
Beam angle:
Beam angle (1/2 peak):
Housing color:Black
Dimensions:Width: 33 cm
Depth: 34 cm
Height: 45 cm
Weight:14,5 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
Packaging units
PUEANWeightDimensions
1402639763291016,80 kg45cm x 43cm x 57cm
