EUROLITE TMH XB-280 Moving-Head-Beam

Name: EUROLITE TMH XB-280 Moving-Head-Beam
Uploaded: 2022-01-01
Description: Bright, narrow beam with OSD 10 280W discharge lamp, color wheel, gobos and prisms

2°

Bright, narrow beam with OSD 10 280W discharge lamp, color wheel, gobos and prisms

EUROLITE TMH XB-280 Moving-Head-Beam

Stock for approx. 12 wk(s)

899,00 €

Save money: This article is available in a bundle.

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 51786825

Print product

Product badge

Here you find the manual and downloads for
EUROLITE TMH XB-280 Moving-Head-Beam

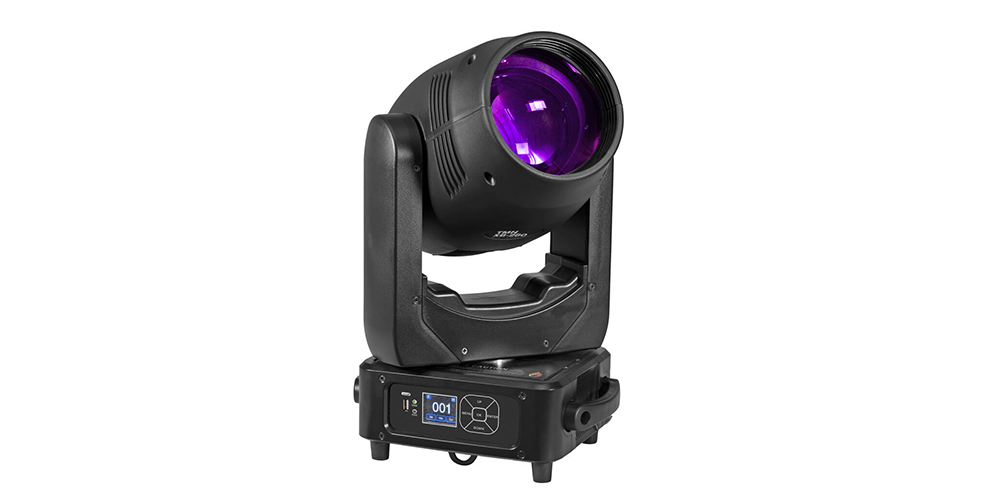

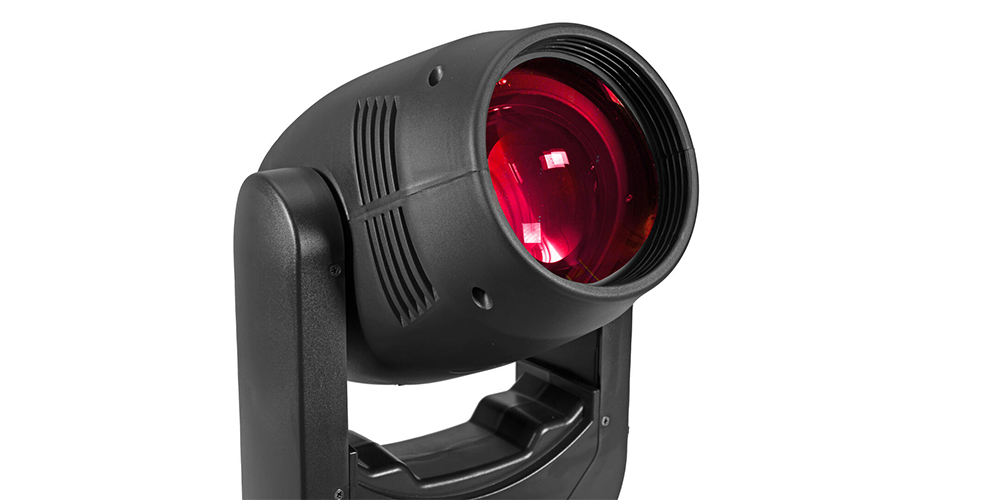

Eurolite TMH XB-280

Powerful beam at a good price

With the TMH XB-280 you get a powerful, sharply defined beam moving head with a narrow beam angle of only 2° and an excellent price-performance ratio.

Versatile design options

With the 14 dichroic colors of the color wheel, the gobo wheel with 13 static gobos and the 8- and 24-facet prisms, you have a wide range of design options.

Very good price-performance ratio

The mix of high quality components, powerful performance and narrow beam angle make this moving head the best choice for stages and discotheques. With its excellent price-performance ratio, it is ideal for all users who want to get the most out of their limited budget.

Save money: This article is available in a bundle.

Sets are loaded. Please wait...

Features

Bright, narrow beam with OSD 10 280W discharge lamp, color wheel, gobos and prisms

Equipped with an OSD 10 Reflector 280W discharge lamp
Positioning within 540° PAN and 270° TILT
Exact positioning (16 bit resolution)
Color wheel; Focus motor-driven; gobo wheel with static gobos; frost filter; Prism 8-fold rotating; Prism 24-fold rotating
Color wheel with 14 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 13 gobos und open
shake effect
The device is cooled by cooling fan
Control via DMX; stand-alone; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
With a beam angle of 2°
Multicolor LCD display
Dimmer electronic
Strobe effect
Preprogrammed in LED PC-Control 512; Light Captain
For application areas such as: Clubs/dancing school; Stage; Rental
Application possibility: Standing; suspended

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	385 W
IP classification:	IP20
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Fuse:	T 5 A Fuse replaceable
Lamp type:	Discharge lamp
Max. TILT movement:	270° Exact positioning (16 bit resolution)
Max. PAN movement:	540° Exact positioning (16 bit resolution)
Flash rate:	1 - 18 Hz
Equipment:	Color wheel; Focus motor-driven; gobo wheel with static gobos; frost filter; Prism 8-fold rotating; Prism 24-fold rotating
Color generation:	Color wheel with 14 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with static gobos, 13 gobos und open Shake effect
DMX channels:	16; 19
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	DMX; stand-alone; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:	LED PC-Control 512; Light Captain
Beam angle:	2°
Beam angle (1/2 peak):	2°
Housing color:	Black
Display type:	Multicolor LCD display
Dimensions:	Width: 30,0 cm Depth: 20,5 cm Height: 50,5 cm
Weight:	14,80 kg
Noise classification:	Class 4 (loud noises)

Packaging units

PU	EAN	Weight	Dimensions
1	4026397677171	16,35 kg	60cm x 42cm x 30cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

Pcb (Display) TMH XB-280 (HY-190812 PD002D5)

Pcb (Power supply) 36V/2,5A 12V/6A 380V/0,8A TMH XB-280 (HS-U450T380+36+12H(PFC))

Pcb (motor driver) TMH XB-280 (E476197)

More 12 spare parts
