Versatile DMX controller
EUROLITE DMX Stage Control 136 controller

EUROLITE

Versatile DMX controller

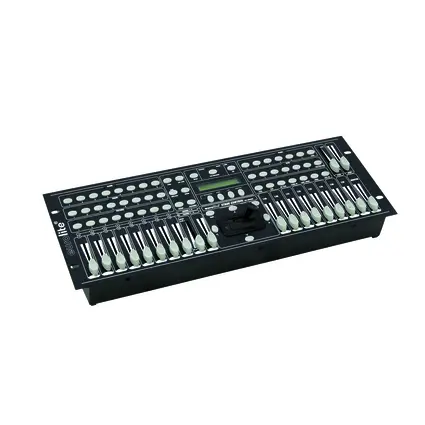

EUROLITE DMX Stage Control 136 controller

Item no. 70064535

Let's bring them together! On this DMX Stage control, parcans and movinglights can be operated simultaneously. It fits best in little clubs, hotel dicotheques or on manageable live events, where only a few programs are needed. The controler is easy to use and is seperated in 128 movinglight- and 8 parcan-channels.
Features
  • 136 control channels DMX out and MIDI in
  • 8 channel-faders with LED
  • Fade Time fader with LED for adjusting the step time
  • Master-fader with LED for adjusting the total output level
  • Speed-fader for adjusting the program-speed
  • Audio-fader with LED for adjusting the music sensitivity
  • CF memory card for programs
  • LCD display
  • External power supply
  • 6.3 mm jack connection for footswitch (scene steps)
  • 0/10 V-output via one 5-pin DIN-socket for fog machine
  • Simultaneous and independent control of scanner and parcan section
  • Dimmer: Manual control of the channels via sliders
  • Full On: all channels can be switched on together
  • Blackout-function
  • Program speed adjustable via speed-fader or Tap Sync-button
  • Sound-control via external signal or integrated microphone
  • Sound to light via RCA socket
  • Rack mounting plates included
  • Rack installation with 4 units
  • Scanner Section:
  • 128 control channels for 8 scanners with up to 16 DMX channels
  • 12 pages with up to 8 scenes can be programmed
  • 8 chasers each with up to 99 steps
  • Programmable speed and fade time
  • Patch possibility
  • Joystick with fine mode and 4 step buttons
  • Dimmer Section:
  • 8 dim fader channels and 1 master fader
  • 12 pages with up to 6 scenes can be programmed
  • 6 chasers each with 99 steps
  • Speed, tap-sync und audio fader
  • Step function
  • Standby and full-on
Technical specifications
Power supply:230 V AC, 50 Hz
via 12 V DC, 600 mA power unit included in the delivery
Number of control channels:136
Sound-control:via built-in microphone or via audio-input
Audio-input:Jack
Audio-sensitivity:0.1-1 V
DMX512 output:3-pin XLR connector with polarity selector
Free chasers:8 for scanner section and 6 for dimmer section
Dimensions (L x W x H):483 x 180 x 93 mm
Rack installation with 4 u
Minimum mounting depth:100 mm
Power consumption:6.00 W
Number of DMX channels:136
IP classification:IP20
Weight:3 kg
Color:Black
Packaging units
PU EAN Weight Dimensions
1 4026397220353 3,75 kg 58cm x 31,5cm x 16cm
2 4026397301878 8,30 kg 61cm x 33cm x 35cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00052772.pdf 1.10 de/en
Illustration
Name Version Language
00028833.pdf 0.00 de
Catalog pages
Name Version Language
00097393.pdf 25.00 de
00098162.pdf 25.00 en
All images
Name Version Language
70064535.zip
