Console for 12 light effect units (max. 20 DMX channels), 2 jog wheels
EUROLITE DMX Operator 240 Controller

svg
svg
svg
3 U
svg
svg
EUROLITE

Console for 12 light effect units (max. 20 DMX channels), 2 jog wheels

EUROLITE DMX Operator 240 Controller

Stock for approx. 12 wk(s)
135,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 70064518

Features

Console for 12 light effect units (max. 20 DMX channels), 2 jog wheels

  • DMX controller for 12 light effect units such as moving heads, scanners and LED spot lights
  • 12 fixtures with up to 20 channels each can be controlled
  • 240 DMX channels can be assigned and inverted as desired to 20 control channels (softpatch)
  • USB port for storing program data
  • 240 programmable scenes (30 banks x 8 scenes)
  • 6 programmable chases with 240 scenes each can be stored
  • Manual, time-controlled or sound-controlled chase running mode
  • Fade between scenes adjustable between 0-30 s
  • Copy function for scenes and banks
  • 2 DMX fixture levels can be controlled, each with up to 10 channels
  • 8 DMX channel faders
  • 2 jog wheels for pan/tilt
  • Blackout function
  • Sound control via built-in microphone or line input with adjustable sensitivity

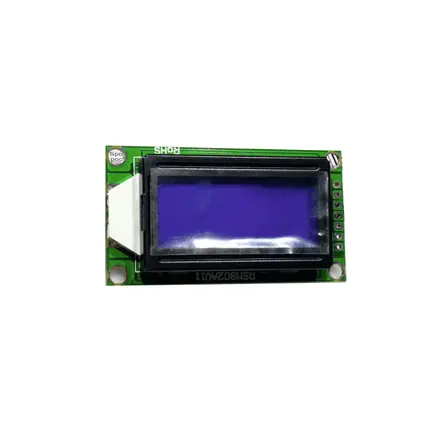

  • Backlit LCD (2 x 8 characters)
  • RDM support (DMX address setup and identify)
  • Fog machine control possible
  • Supports standard MIDI
  • 3-pin XLR connector with polarity selector
  • Firmware update via USB
  • Desktop console
  • Rack installation with 3 units
  • Controller useable for: general mix of colors; Controls KLS in general; Controls Moving Lights; Controls DMX effects; Luminaires for white
  • Control: Sound to light viaMicrophone; Sound to light viaRCA (f) mounting version; DMX
  • Housing design: (19") 48.3 cm rack installation 3 U
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
9 V DC
Power consumption:2,70 W
DMX channels:240
DMX output:1 x 3-pin XLR (F) mounting version with polarity selector
IP classification:IP20
Power connection:Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Control:Sound to light via Microphone
Sound to light via RCA (f) mounting version
DMX
Color:Black
Case color:Black
Housing design:(19") 48.3 cm rack installation 3 U
Width:48,3 cm
Height:8,9 cm
Depth:13,5 cm
Weight:2,45 kg
Storable scenes:240 (8 each in 30 memory banks)
Storable chases:6 with 240 steps each
MIDI input:5-pin DIN
Fog machine connector:5-pin DIN
Available storage media:USB devices (FAT32)
Rack installation with 3 U
Packaging units
PU EAN Weight Dimensions
1 4026397487459 2,82 kg 58cm x 18,5cm x 14,5cm
4 4026397487466 12,00 kg 60cm x 38,5cm x 30cm
Accessories
Loading accessories. Please wait...
Support

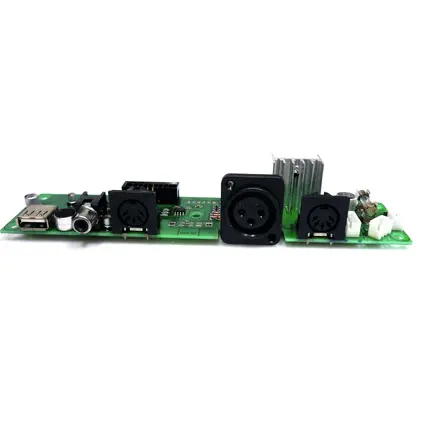

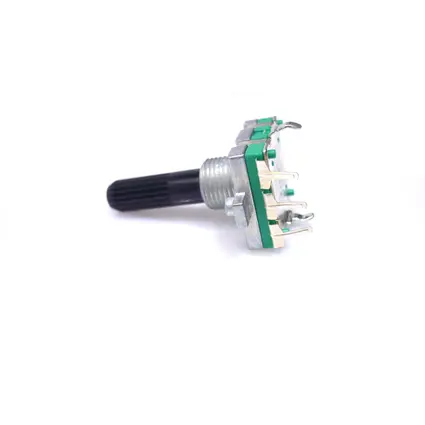

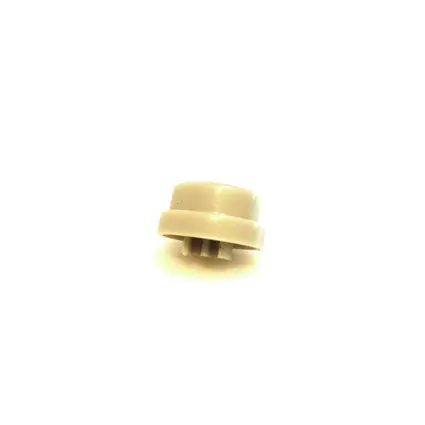

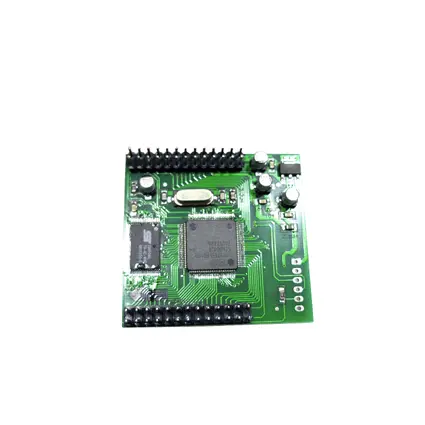

Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
70064518-Manual-81627-1.000-de_en.pdf (4 MB) 1.000 de_en
All images
Name Version Language
70064518-Images.zip
Publications
main catalog 2019 St. E #28
On page: 214
Size: 284 MB
