LED light effect bar with variable color temperature

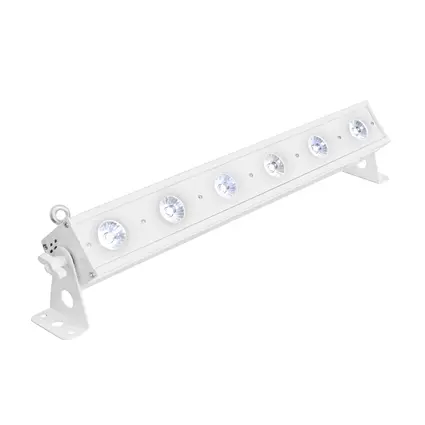

EUROLITE LED BAR-6 TCL WW/NW/CW Bar white

svg
svg
svg
17°
svg
svg
svg
svg
svg
EUROLITE

LED light effect bar with variable color temperature

EUROLITE LED BAR-6 TCL WW/NW/CW Bar white

Features

LED light effect bar with variable color temperature

  • 6 powerful LEDs 3 W high-power 3in1 TCL CW/NW/WW (homogenous color mix)
  • Dimmer electronic
  • Strobe effect
  • The device is cooled by passive convection cooling
  • Control via DMX; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
  • Preprogrammed in Light Captain
  • With a beam angle of 17°
  • Very high color rendering index (CRI)
  • With mounting bracket
  • 4 digit 7-segment LED display
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Wedding/gala/events; restaurants, bars and hotels
  • Silent operation
  • Application possibility: Suspended; wall mounting

Package contents

  • 1 x light effect, 1 x user manual, 1 x power cord, 2 x mounting bracket, 2 x screw, 2 x washer
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:15 W
IP classification:IP20
Fuse:T 1 A fuse replaceable
Lamp type:LED lamp
LED type:6 x 3 W high-power 3in1 TCL CW/NW/WW (homogenous color mix)
DMX channels:3; 7
Cooling:Passive convection cooling
Control:DMX; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:Light Captain
Beam angle:17°
Beam angle (1/2 peak):17°
Color rendering index (CRI):93 Ra
Housing color:White
Attachment system:Mounting bracket
Display type:4 digit 7-segment LED display
Dimensions:Length: 57,0 cm
Depth: 8,8 cm
Height: 10,9 cm
Weight:1,66 kg
Noise classification:Class 0 (no noise at all)
Photobiological safety:Risk Group 0
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
Packaging units
PUEANWeightDimensions
140263976807371,85 kg54cm x 14cm x 11cm
6402639768074412,10 kg57cm x 35cm x 31cm
