Mini-Moving Head
FUTURELIGHT PHS-200 PRO-Head Spot

FUTURELIGHT

Mini-Moving Head

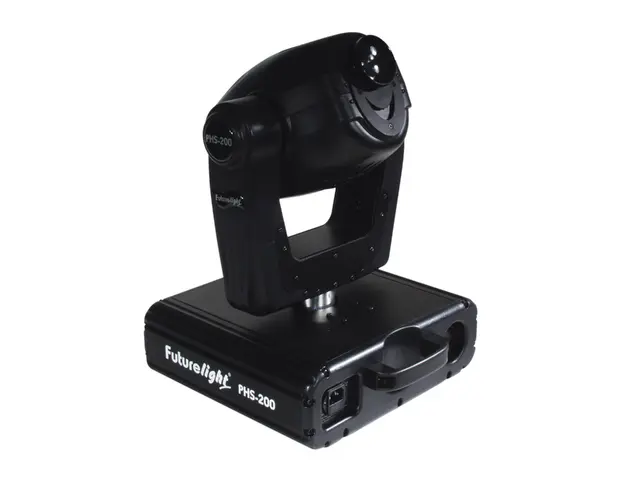

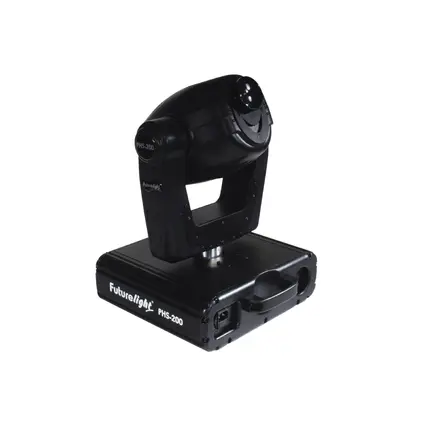

FUTURELIGHT PHS-200 PRO-Head Spot

Item no. 51838165

Features

Mini-Moving Head

  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • 48 preprogrammed scenes in Program Run for stand-alone operation
  • Number of scenes in Program Run can be changed individually
  • The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory
  • 8 built-in programs can be called up via DMX controller
  • Sound-controlled via built-in microphone
  • 9 brilliant, dichroic colors plus white
  • Switchable color change (mode 1: only full colors, mode 2: color-change at every position)
  • Rainbow effect with adjustable speed in both directions

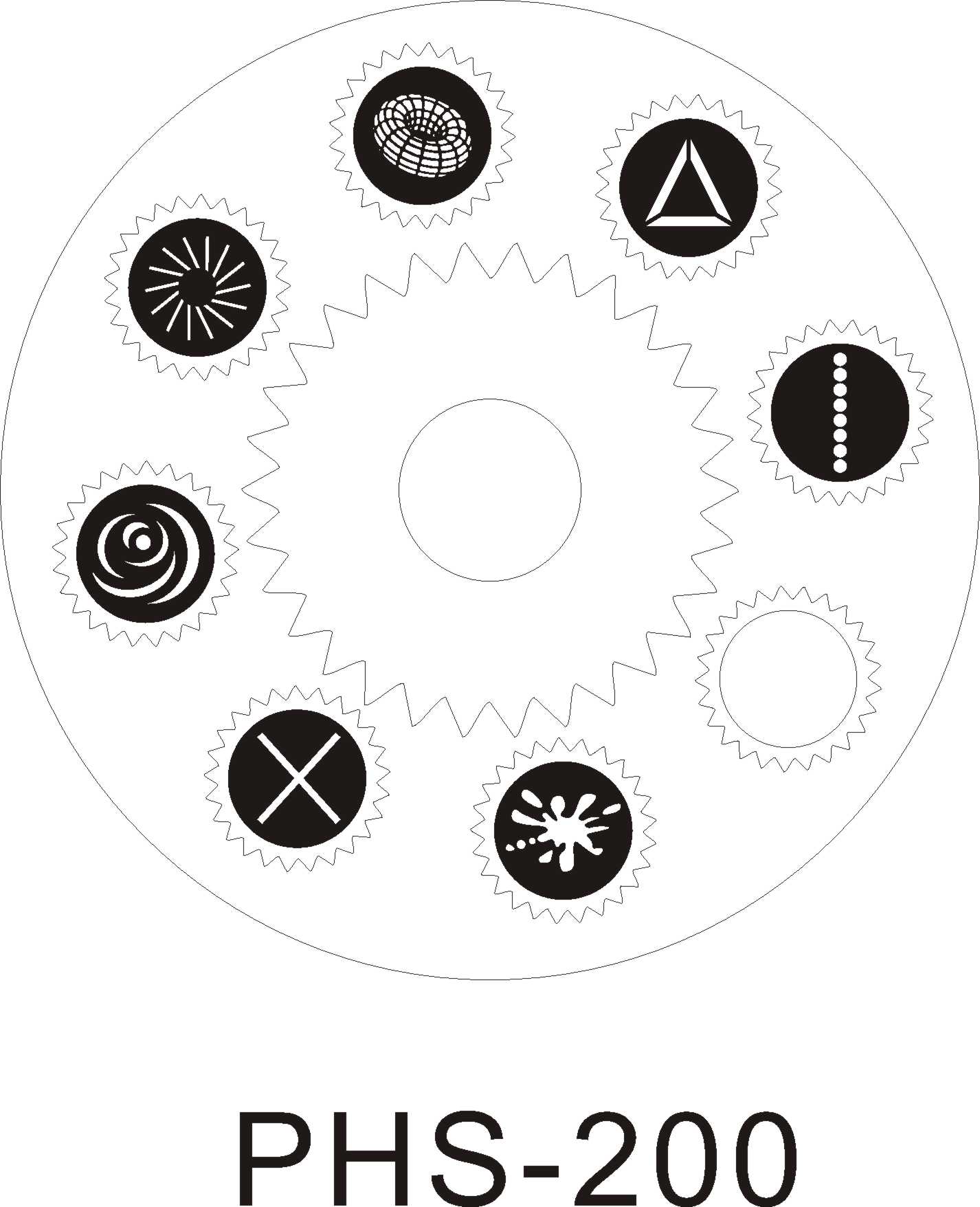

  • Gobo-wheel with 7 rotating gobos plus open
  • With gobo-shake function
  • Manual focus
  • Strobe effect with 1-10 flashes per second
  • Positioning within 360° Pan and 265° Tilt

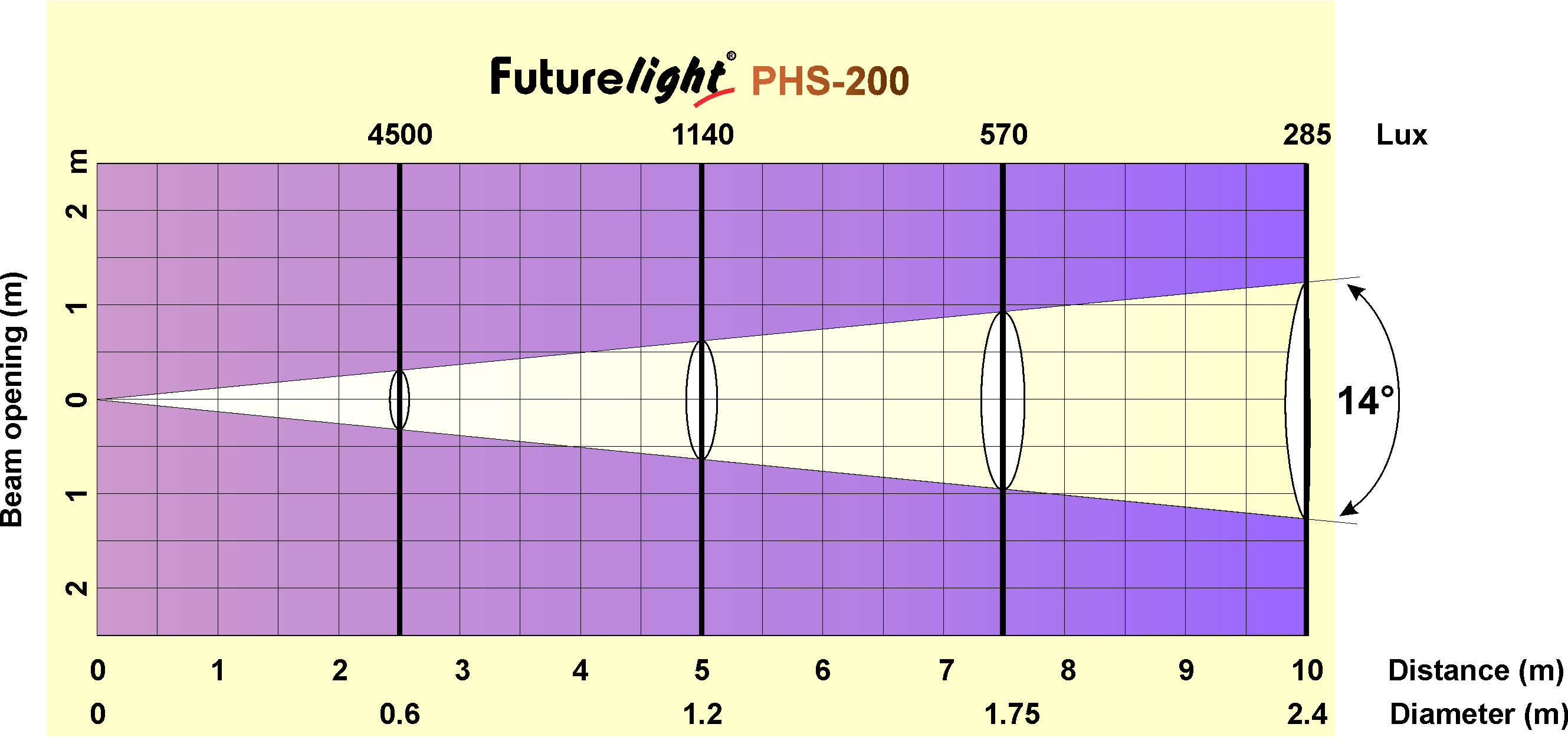

  • Lightbeam with 13° radiation angle
  • Control board with 4-digit display and foil-keyboard for adjusting the DMX-starting address, Pan/Tilt-Reverse, Program, Reset, lamp on/off
  • For MSD/HSD 250 or MSD 250/2 lamp
  • DMX control via every standard DMX controller
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:400,00 W
DMX channels:8
DMX connection:3-pin XLR
Flash-rate:10 Hz
Color-wheel:9 dichroic filters and open
Rotating gobo-wheel:7 gobos and open
Outside diameter of the gobos:25 mm
Image diameter of the gobos:20 mm
Maximum PAN-movement 360°:in 2.0 s
Maximum TILT-movement 265°:in 1.5 s
Length of base:380 mm
Width of yoke:330 mm
Height (head horizontal):450 mm
Weight:15 kg
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397125467 19,85 kg 57,5cm x 45cm x 45cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
51838165-Manual-31566-1.500-es_fr_en_de.pdf (8 MB) 1.500 es_fr_en_de
DMX protocol
Name Version Language
51838165-DMX-31558-1.100-es_fr_en_de.xls (44 KB) 1.100 es_fr_en_de
Video file
Name Version Language
51838165-Video-36360-de_en_fr_es.flv (2 MB) 0.000 de_en_fr_es
All images
Name Version Language
51838165-Images.zip
