Versatile LED Head Effect

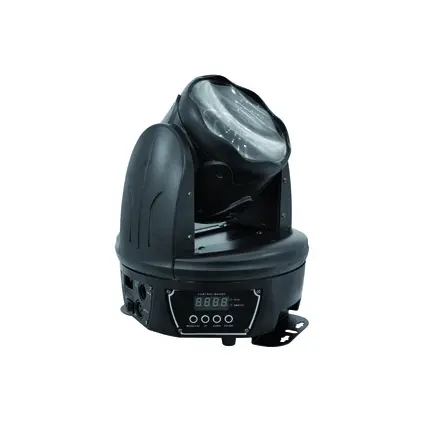

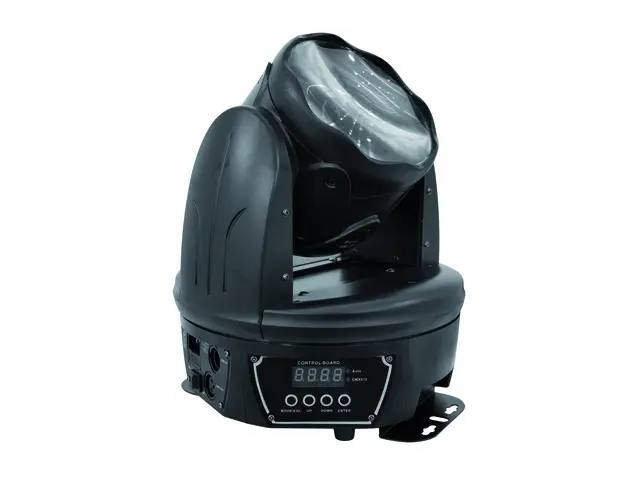

EUROLITE LED TMH-5 Moving Head Matrix

The article is no longer in our assortment.

No. 51785995

Features

Versatile LED Head Effect

Equipped with 64 x 5 mm LEDs: 24 x red, 24 x green, 16 x blue
Creates various RGB patterns via LED matrix
DMX-controlled operation or stand-alone operation with Master/Slave function
Preprogrammed scenes in Program Run for stand-alone operation
Patterns, effects and speed can be called up via DMX controller
Strobe effect with adjustable speed
Sound-controlled via built-in microphone
Fan-cooled
Exact positioning via 16 bit PAN/TILT movement resolution
Advantages of LED technology: long life, low power consumption, minimal heat emission, defacto maintenance free with brilliant light radiation
Positioning within 540° PAN and 255° TILT
High quality at a low price
Control board with 4-digit display and foil-keyboard for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
DMX control via every standard DMX controller

Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	30,00 W
Dimensions:	Width: 26,5 cm Depth: 32 cm Height: 26,5 cm
Weight:	5,35 kg
DMX channels:	9
DMX connection:	3-pin XLR
Sound-control:	via built-in microphone
LED number:	64
LED type:	5 mm
Beam angle:	20°
Ventilation fan:	Yes
Maximum PAN-movement:	540°
Maximum TILT-movement:	255°
Dimensions (L x W x H):	265 x 265 x 320 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
