MADRIX USB/DMX interface to issue a DMX universe over XLR
MADRIX NEO - USB DMX512 interface

svg
svg
svg
svg
MADRIX

MADRIX USB/DMX interface to issue a DMX universe over XLR

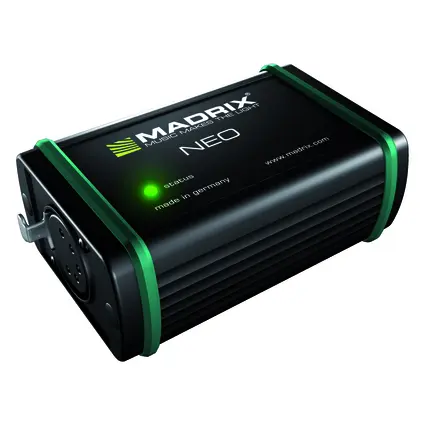

MADRIX NEO - USB DMX512 interface

MADRIX NEO is an easy to use and effective DMX512 USB interface. This DMX512 interface includes already a MADRIX 3 software license for 512 DMX channels.
You can use this interface to send or receive DMX512 using MADRIX.
MADRIX NEO comes in a robust enclosure made of light metal - ideal for the use on stages.
Features

MADRIX USB/DMX interface to issue a DMX universe over XLR

  • MADRIX NEO is a reliable, easy-to-use, and high-quality DMX512 USB hardware interface including MADRIX software for LED control and MADRIX 3 software license
  • The interface can be used for DMX input or DMX output to connect DMX512 devices to your computer
  • The MADRIX software license for 512 DMX channels per device is already included and automatically activated when connected to MADRIX
  • If you want to use DMX-IN, please use a 5-pin XLR male to 5-pin XLR male gender changer
  • The MADRIX 3 Software license for 512 DMX channels per device is already included and automatically activated when connected to MADRIX
  • Full USB 2.0 support, Power over USB, Hot Swapping, and Plug & Play
  • Multiple devices can be used together without problems for larger projects
  • Rugged metal housing with eye-catching design
  • MADRIX is a powerful, easy-to-use, and award-winning LED lighting control software
  • Allows you to realize all kinds of different LED projects and lighting designs
  • A normal PC/laptop can be used for professional LED control
  • Allows mapping in 2D (pixel mapping) as well as real, spatial 3D (voxel mapping)
  • The software generates unique effects, visuals, and animations live and in real time
  • No additional content is required
  • Already includes a multitude of stock effects that are fully customizable (in speed, color, shape, direction, size, movement, position, brightness etc.)
  • Analyzes incoming audio signals Sound2Light and Music2Light in real time
  • New lighting scenes can easily be created in seconds
  • Variety of options to combine visuals and graphical elements (layers, mix modes, filters, etc.)
  • 256 x 256 Storage Places to organize and store effects
  • DJ-like operation with 2 decks (Left/Right) and a crossfader
  • 3 real-time previews to show your visual effects in advance (incl. 2D/3D, zoom, rotation)
  • Controls up to 4 color channels per pixel/voxel (e.g. 1-channel, 2-channel, RGB, RGBW fixtures)
  • Freely configurable Cue List for automated playback of a show (incl. time, date, duration, etc.)
  • Supports Time Code from Art-Net, MIDI, SMPTE, and system time
  • Remote control available via DMX-IN, Art-Net Remote, MIDI-IN, HTTP (internet browser), CITP
  • Incl. Fixture Editor with large fixture library
  • Includes various other tools and features (DMX Fader Tool, DMX Watcher, Matrix Generator, Patch Editor, Touch Screen window, backup system, scripting, mapping, scaling, etc.)
  • MADRIX minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.0 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0
  • Installation instructions and software available in English, Spanish, French, and Simplified Chinese
  • User manuals also available at help.madrix.com
  • More information available at www.madrix.com
  • Can receive and process up to 512 DMX channels
  • Can transmit up to 512 DMX channels
  • Controlling by DMX via USB built-in
  • Built with NEUTRIK connector
  • Made in Germany

Package contents

  • 1 x Device, 1 x User manual, 1 x CD, 1 x USB cable
Technical specifications
Power supply:5 V DC 500 mA
Power connection:Mains input via USB, type B power supply cord for USB A mains connection (provided)
DMX channels:Input 512
Output 512
DMX output:1 x 5-pin XLR (F) mounting version
Control:DMX via USB built-in
USB port:USB 2.0, Typ B
Use of brands:Built with NEUTRIK connector
Dimensions:Width: 7,8 cm
Depth: 5,9 cm
Height: 3,5 cm
Weight:240 g
Packaging units
PU EAN Weight Dimensions
1 4260263421035 0,37 kg 16cm x 6cm x 20,5cm
