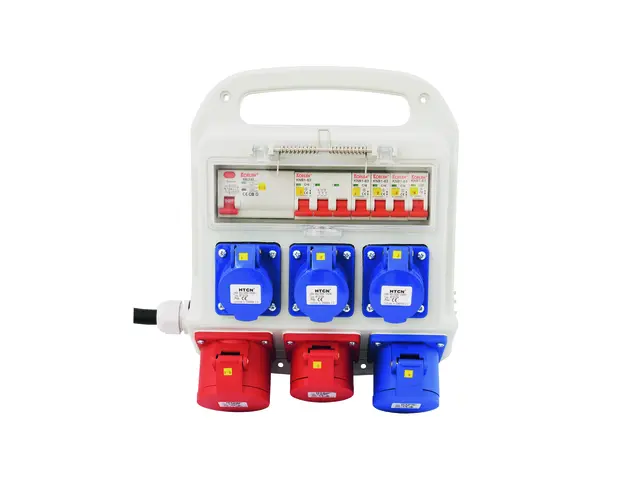

Power distributor 3 x 32 A, 1 x 16 A, 3 x 230 V
EUROLITE SBP-3210K Power Distributor

EUROLITE

Power distributor 3 x 32 A, 1 x 16 A, 3 x 230 V

EUROLITE SBP-3210K Power Distributor

Stock for approx. 12 wk(s)
269,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 30245521

Features

Power distributor 3 x 32 A, 1 x 16 A, 3 x 230 V

  • Plastic box with 3 safety sockets
  • 1 x 32 A CEE input with 2 meter cable
  • 1 x 32 A CEE output, 5-pin
  • 1 x 32 A CEE output, 3-pin
  • 1 x 16 A CEE output, 5-pin
  • The entire distributor is secured via 30 mA Residual Current Device (RCD)
  • Power connection: Fixed Power supply cord with CEE 32A 5-pin (M)
  • Power output: 3 x CEE 16A 3-pol (f) recessed mounting fused
  • Power output: 1 x CEE 32A 5-pol (f) recessed mounting Bypass
  • Power output: 1 x CEE 32A 3-pol (f) recessed mounting fused
  • Power output: 1 x CEE 16A 5-pol (f) recessed mounting fused
Technical specifications
Power supply:380-400 V AC, 50 Hz
Max. power output:22080 W
Max. total current:96 A
Max. output/phase (32 A CEE):7360 W
Max. current/phase (32 A CEE):32 A
Max. output/phase (16 A CEE):3680 W
Max. current/phase (16 A CEE):16 A
Max. output/channel (safety socket):3680 W
Max. current/channel (safety socket):16 A
Dimensions (L x W x H):350 x 340 x 130 mm
Weight:4,5 kg
Height:13 cm
Depth:35 cm
Width:34 cm
Power connection:Fixed Power supply cord with CEE 32A 5-pin (M)
Power output:CEE 16A 3-pol (f) recessed mounting fused
CEE 32A 5-pol (f) recessed mounting Bypass
CEE 32A 3-pol (f) recessed mounting fused
CEE 16A 5-pol (f) recessed mounting fused
Packaging units
PU EAN Weight Dimensions
1 4026397462357 5,05 kg 35cm x 14cm x 33cm
4 4026397462364 21,30 kg 56cm x 38cm x 35cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
30245521-Manual-70454-1.00-de_en.pdf (120 KB) 1.00 de_en
All images
Name Version Language
30245521-Images.zip
