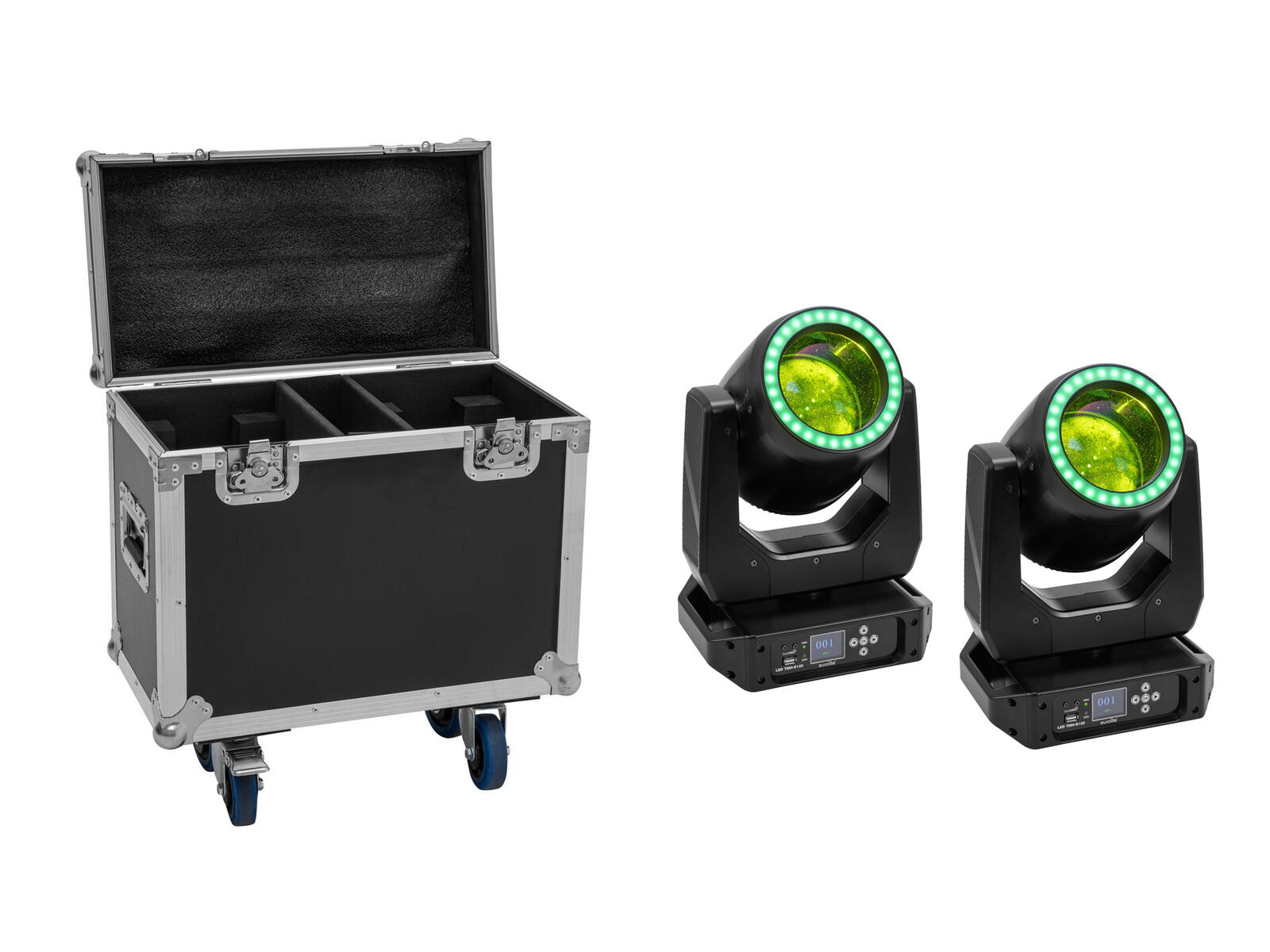

EUROLITE Set 2x LED TMH-B120 Hypno Moving-Head Beam + Flightcase with wheels

9 mm

120° ring

2° beam

EUROLITE Set 2x LED TMH-B120 Hypno Moving-Head Beam + Flightcase with wheels

only a few items available

1.599,00 €

Due to the dimensions of this article, different shipping conditions apply.

List price excl. 19% VAT
Prices in retail stores may vary.

No. 20001045

Print product

Product badge

Set consisting of:

2 x EUROLITE LED TMH-B120 Hypno Moving Head Beam

1 x ROADINGER Flightcase 2x TMH-B120 with wheels

Features

EUROLITE LED TMH-B120 Hypno Moving Head Beam

LED moving head beam with hypno ring, color wheel, static gobo wheel, prism and focus

1 powerful LED 120 W COB (chip-on-board) cold white (CW)
30 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
Positioning within 540° PAN, 240° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Color wheel; gobo wheel with static gobos; focus motor-driven; frost filter; prism 8-fold rotating
Dimmer
Beam effect
Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 13 gobos und open
shake effect
4 integrated show programs
The device is cooled by cooling fan at the base; cooling fan at the Head
Control via stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
Preprogrammed in Light Captain
Flicker-free
DMX fail mode (hold; zero values)
With a beam angle of 2°
With omega bracket
Multicolor LCD display
2 Rugged carrying handles
4 x rubber feet
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer; rental
Application possibility: Standing; suspended

Package contents

1 x moving light, 1 x power cord, 1 x omega bracket, 1 x safety eyelet, 1 x user manual

ROADINGER Flightcase 2x TMH-B120 with wheels

Trunk case

With 2 device compartment
With 1 accessory compartment
High-quality workmanship with plywood multi-layer glued 9 mm, black, laminated
Interior with foam padding
cover with foam padding
Aluminum profile frames 30mm with rounded edges
2 hinged, chromium plated case handles
2 chrome tip-over locks
2 high-quality butterfly locks
4 x castors with 2 locking brakes

Technical specifications

Weight:	30,00 kg
EUROLITE LED TMH-B120 Hypno Moving Head Beam
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	170 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable construction:	3 x 1,0 mm² H05VV-F
Cable length:	1,1 m
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 2 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 120 W COB (chip-on-board) cold white (CW) 30 x 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
Max. TILT movement:	240° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:	1 - 20 Hz
Equipment:	Color wheel; gobo wheel with static gobos; focus motor-driven; frost filter; prism 8-fold rotating
Color generation:	Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with static gobos, 13 gobos und open Shake effect
DMX channels:	21
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	1 x cooling fan at the base 1 x cooling fan at the Head
Control:	Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
Preprogrammed in:	Light Captain
Projection:	Flicker-free
DMX fail mode:	Hold; zero values
Beam angle:	2°
Beam angle (1/2 peak):	Beam 2° Ring 120°
Beam angle (1/10 peak):	Beam 2° Ring 120°
Color temperature:	8500K
Housing color:	Black
Attachment system:	Omega bracket
Display type:	Multicolor LCD display
Status LED:	DMX, fault
USB port:	Type A
Carrying handle:	2 pc/pcs
Transport aid:	4 x rubber feet
Material:	Plastic
Dimensions:	Width: 26,0 cm Depth: 23,5 cm Height: 37,5 cm
Weight:	6,95 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 2x TMH-B120 with wheels
Maximum load:	50 kg
Aluminum profile frames:	30 mm
Case handle:	2 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Transport aid:	4 x castors with 2 locking brakes
Material:	Plywood multi-layer glued, 9 mm, laminated
Color:	Black, laminated
Device compartment:	20,5 cm x 26 cm x 36 cm
Accessory compartment:	8 cm x 26 cm x 19 cm
Dimensions:	Width: 57 cm Depth: 31,5 cm Height: 59 cm
Weight:	14,00 kg
