Digital 24-Bit stereo multi-effects processor

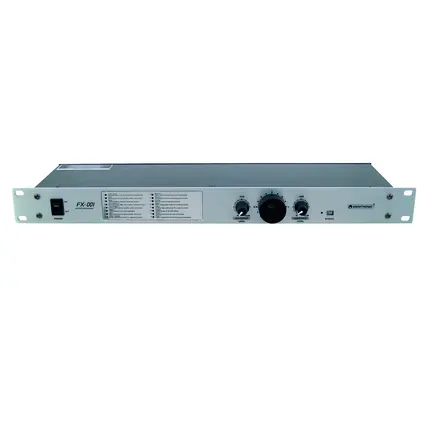

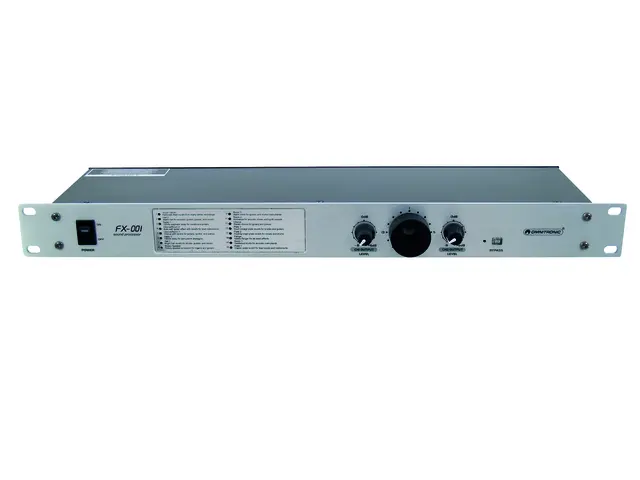

OMNITRONIC FX-001 FX processor

OMNITRONIC

Digital 24-Bit stereo multi-effects processor

OMNITRONIC FX-001 FX processor

Item no. 10356710

Enhance your music productions with the OMNITRONIC FX processors FX-001 and FX-003! The FX-001 is a dedicated and intuitive stereo multi-effects processor that adds 16 striking effects in 24-bit quality to your set-up. The FX-001 offers 2 channels, provided with level controls and a bypass switch which allows for direct comparison between the original and the processed signal. The unit is intended for rack use.
Features
  • Dedicated 2-channel effects processor for studio and stage applications
  • 16 striking effect algorithms, including vocal removal, various reverbs and delays, chorus, flanger rotary speaker and multi-effects
  • Intuitive effects selector with LEDs indicating the selected effect
  • Adjustable output level
  • Inputs and output via balanced XLR connectors and 6.3 mm jacks
  • Rack installation, 1 U
Technical specifications
Power supply:230 V AC, 50 Hz
S/N ratio:>90 dB
THD: 0.05%
Crosstalk:>80 dB, -3 dB
Gain:-~ to +6 dB
Input impedance:10/20 kohms (unbal./bal.)
Output impedance:300/150 kohms (unbal./bal.)
Connection:6.5 mm jack (unbal.), 3-pin XLR (bal.)
Dimensions (W x D x H):483 x 120 x 46 mm
Power consumption:10.00 W
Weight:2 kg
Frequency range:20 - 20000 Hz
Height:4,45 cm
Depths:12 cm
Width:48,3 cm
Packaging units
PU EAN Weight Dimensions
1 4026397306255 2,60 kg 54,5cm x 20cm x 8cm
6 4026397306262 16,50 kg 55cm x 42cm x 27cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00033681.pdf 1.00 de/en
Service document
Name Version Language
Circuit diagram00031131.pdf 1.00 de
All images
Name Version Language
10356710.zip
