OMNITRONIC Set OMNITRONIC RS-602 + M-22 + SHP-2000

svg
5,5 cm
OMNITRONIC



OMNITRONIC Set OMNITRONIC RS-602 + M-22 + SHP-2000

Item no. 09000053

Features

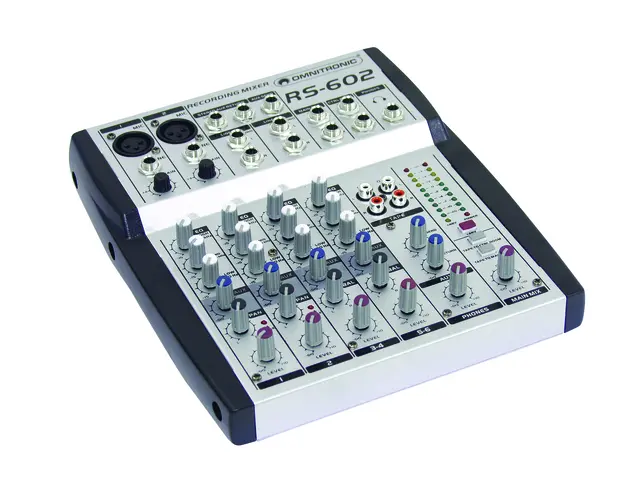

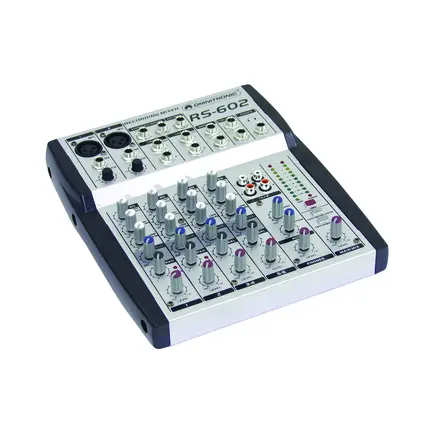

10040050 OMNITRONIC RS-602 Recording Mixer

Compact 6-channel studio and live mixer

  • Low-noise 6-channel mic/line mixer
  • 2 mono inputs with XLR sockets, +48V phantom power and balanced line inputs
  • 2 stereo inputs with balanced 6.3 mm jack sockets
  • Stereo inputs can also be operated mono
  • 3-band EQ for all inputs
  • Peak LED per mono input
  • Aux send per channel for controlling external effectors
  • Stereo aux return with balanced 6.3 mm jack sockets
  • Separate main mix, booth and headphones outputs
  • Tape inputs assignable to master, booth/headphones
  • Precise 10-fold stereo LED meter

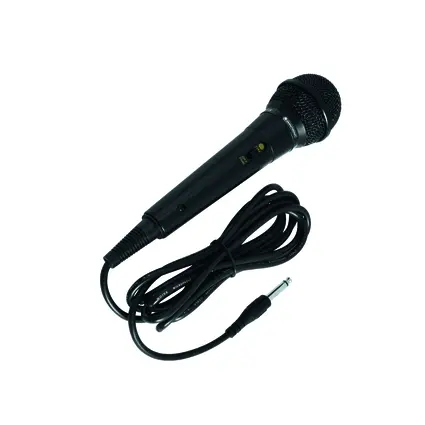

13000420 OMNITRONIC M-22 Dynamic Microphone

Unidirectional microphone with 3 m jack cable

  • Dynamic handheld microphone for studio and stage use
  • On/off switch
  • Excellent quality at a low price
  • 3 m jack cable attached to microphone
  • Polar pattern: Cardioid
  • Mute function: On/off/mute switch

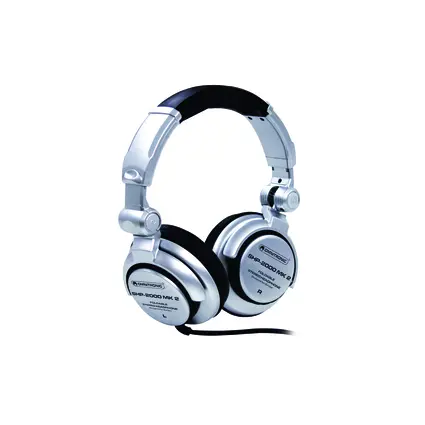

1400039F OMNITRONIC SHP-2000 MK2 DJ Headphones

Comfortable DJ stereo headphones

  • Closed dynamic stereo headphones for DJs
  • 50 mm driver
  • Distortion-free playback also at a high volume
  • Optimal wearer-comfort due to single cable (L)
  • Well-padded, adjustable headband
  • Oversized earpieces for screening undesired noise
  • Space-saving design with collapsible, rotating (180°) earcups
  • Detachable connection cable with gold-plated 3.5 mm stereo jack
  • Rugged workmanship for discotheque and stage use
  • Incl. 6.3 mm jack adapter and bag
  • Connector type: 3.5 mm jack (stereo); 6.3 mm jack (stereo)
Technical specifications
10040050 OMNITRONIC RS-602 Recording Mixer
Power consumption:15,00 W
Width:22 cm
Height:5,5 cm
Depth:25 cm
Weight:2,40 kg
Power supply:2 x 20 V AC, 50/60 Hz
via included power unit
Inputs:
2 x monoXLR or balanced 6.3 mm jack
2 x stereobalanced 6.3 mm jacks
1 x Aux Return:balanced 6.3 mm jacks
1 x Tape Instereo RCA
Outputs:
1 x Master Outbalanced 6.3 mm jacks
1 x Control Roombalanced 6.3 mm jacks
1 x Aux Send:balanced 6.3 mm jacks
1 x Tape Outstereo RCA
Frequency range:
Microphone:10-60000 Hz, ±3 dB
Mono:10-60000 Hz, ±3 dB
Stereo:10-55000 Hz, ±3 dB
Distortion:0.01 %
S/N ratio:112 dB
Tone control/channel:
Treble:±15 dB at 12 kHz
Middle:±15 dB at 2.5 kHz
Bass:±15 dB at 80 Hz
Dimensions (W x D x H):220 x 250 x 55 mm
13000420 OMNITRONIC M-22 Dynamic Microphone
Type:Vocal microphone
Polar pattern:Cardioid
Frequency range:50 - 13000 Hz
Capsule type:Dynamic
Diameter:5,5 cm
Weight:0,23 kg
Microphone
Length:22 cm
%p(maximum:) %2 %E %p(above) %3 %e(sections) %Z %p(minimum:) %1 %E %Z
Length:300 cm
Typ:Dynamic
Directivity pattern:Unidirectional
Impedance:500 ohms
Sensitivity:-53 dB (±3 dB)
Connection:6.3 mm jack
1400039F OMNITRONIC SHP-2000 MK2 DJ Headphones
Frequency range:20 - 20000 Hz
Max. SPL:95 dB
Rated power:200 mW
Cable length:1,2 m
Transducer type:Dynamic
Weight:0,44 kg
Sensitivity:95 dB
Connection:3.5 mm/6.3 mm stereo jack plug
Support
Spare parts
Loading spareparts. Please wait...
Downloads
All images
Name Version Language
09000053-Images.zip
