Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	130 W
Power connection:	Fixed supply cord with open wires
Format:	16:9
Screen:	Diagonal: (162") approx. 4 m Image size: 360 x 200 cm Gain: 1.0 Viewing angle: 100° Projection type: front projection
Roll up/down time:	40 s
Housing color:	White matte
Type of installation:	Wall mounting; ceiling mounting
Material thickness:	0.4 mm
Dimensions:	Width: 390 cm Depth: 9 cm Height: 9 cm
Weight:	18.75 kg
Power cord
Cable construction:	3 x 0.5 mm² H03VV-F
Cable length:	1.6 m
Color:	Black

Packaging units

PU	EAN	Weight	Dimensions
1	4026397414653	24,65 kg	395cm x 17cm x 16,5cm

Spare parts

Motor XR60-15C 220V/15RPM Motorized walls

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Illustration

Name	Version	Language
80901167-Illustration-37415-Wall-installation-de.pdf (29 KB)	0.0000	de
80901167-Illustration-37418-Truss-installation-de.pdf (140 KB)	0.0000	de
80901167-Illustration-37434-Attachment-Ceiling-de.pdf (21 KB)	0.0000	de
80901167-Illustration-37437-Attachment-Truss-de.pdf (21 KB)	0.0000	de

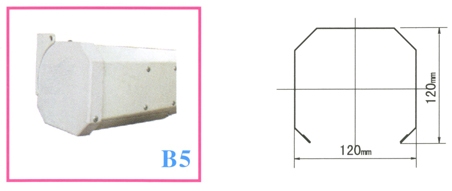

80901167-Illustration-37468-B5-Housing-de.tif (138 KB)	0.0000	de

All images

Name	Version	Language
80901167-Images-.zip

EUROLITE Motor Projection Screen 16:9 360cm x 200cm

Name: EUROLITE Motor Projection Screen 16:9 360cm x 200cm
Brand: EUROLITE
SKU: 80901167
Price: 799.00 EUR
Availability: LimitedAvailability
