4-channel lighting controller

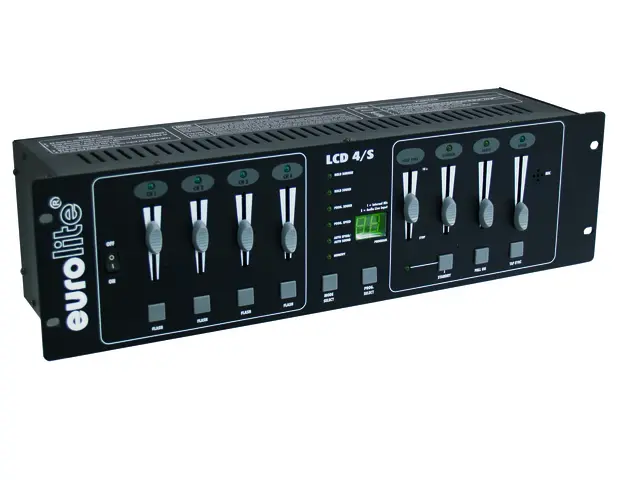

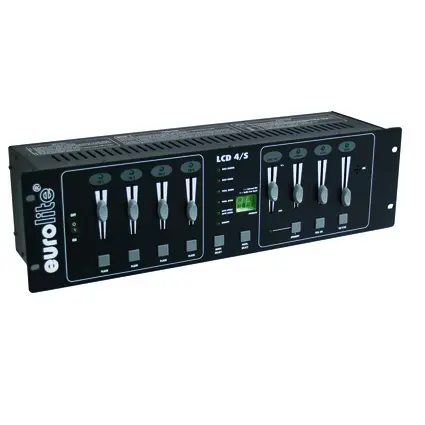

EUROLITE LCD-4/S Dimmer controller

EUROLITE

4-channel lighting controller

EUROLITE LCD-4/S Dimmer controller

Item no. 70062661

Features
  • 4 channels
  • Fade Time fader with LED for adjusting the step time
  • Master-fader with LED for adjusting the total output level
  • Audio-fader with LED for adjusting the music sensitivity
  • Flash-button per channel and master-flash (Full On-button)
  • LED-display of all modes
  • 0/10 V-output via one 8-pin DIN-socket
  • 42 built-in programs
  • Dimmer: Manual control of the channels via sliders
  • Full On: all channels can be switched on together
  • Program speed adjustable via speed-fader or Tap Sync-button
  • Sound-control via external signal or integrated microphone
  • Sound to light via RCA socket
  • Outputs via 4 safety sockets
  • Rack installation with 3 units
  • Only for professional use
Technical specifications
Power supply:230 V AC, 50 Hz
Max. power output:3680 W
Max. current:16 A
Number of control channels:4
Max. output/channel:1150 W
Max. current/channel:5 A
Integrated programs:42
Sound-control:via built-in microphone or via audio-input
Audio-input:RCA socket
Audio-sensitivity:0.1-1 V
Output sockets:4 safety sockets
Fuse:4 x F 6.3A, 250 V
Dimensions (W x D x H):482 x 145 x 132 mm
Rack installation with 3 u
Minimum mounting depth:230 mm
Weight:4.5 kg
Packaging units
PU EAN Weight Dimensions
1 4026397179095 5,15 kg 52cm x 20cm x 21,5cm
4 4026397129724 22,30 kg 54cm x 43cm x 45,5cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00053867.pdf 2.30 de/en/fr/es
Catalog pages
Name Version Language
00097416.pdf 25.00 de
00098183.pdf 25.00 en
Service document
Name Version Language
Circuit diagram00031405.pdf 1.00 de
Circuit diagram00031407.pdf 1.00 de
