ALUTRUSS SINGLELOCK SP-2500 QUICK-LOCK Pipe

ALUTRUSS



ALUTRUSS SINGLELOCK SP-2500 QUICK-LOCK Pipe

Stock for approx. 12 wk(s)
54,90
add to cart
This is a bulky product.
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 60210050

SINGLELOCK SP 1-point truss system
SINGLELOCK SP is a 1-point truss system made of aluminum. The individual elements are connected via one cone, pivots and pins.

The advantage of the conical connection system is that the cone completely fits into the main chord so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.

The main chord is made of 50 mm aluminum tube with 2 mm wall thickness and offers a good relation between strength and weight.

SINGLELOCK SP is a stable truss system for higher loads and extended durability. This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres.

With SINGLELOCK SP, decorative frames with advertising signs, transmission canvas etc. can be realized.

The documentation of this truss system is closely related to the Codes of Practice SQ P1 - Truss Systems published by the VPLT/PLASA. The load table as calculation base can be downloaded from the Internet before buying the product!

Please note: this truss system must never be combined with other systems!
Features
  • Made in Europe

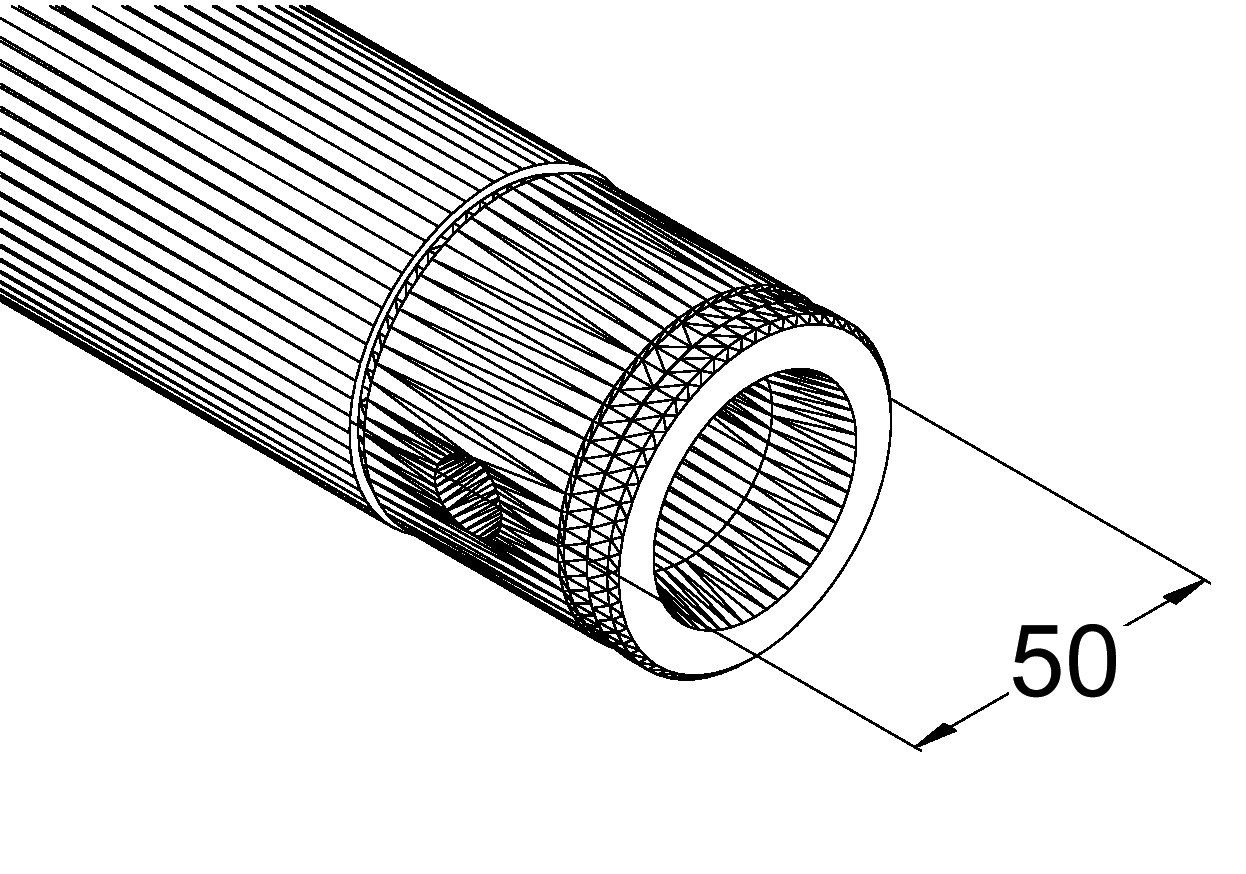

  • Trusspipe diameter: 50 mm
Technical specifications
Main chords:50 x 2 mm
Alloy:AlMgSi 0.5
Welding material:AlMg 5
Welding technique:TIG-welding
Length:2500 mm
Trusspipe:50 mm x 2 mm
Color:Alu colored
Weight:2.22 kg
Packaging units
PU EAN Weight Dimensions
1 4026397187137 2,22 kg 250cm x 5cm x 5cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
Catalog pages
Name Version Language
00097692.pdf 25.00 de
00098431.pdf 25.00 en
00115360.pdf 27.00 de
00115797.pdf 27.00 en
Data sheet
Name Version Language
Load table00015220.pdf 1.00 de
Load table00015221.pdf 1.00 en
