For problem-free installations
EUROLITE AB-410X Alu-bar 1.5m IN/OUT

EUROLITE

For problem-free installations

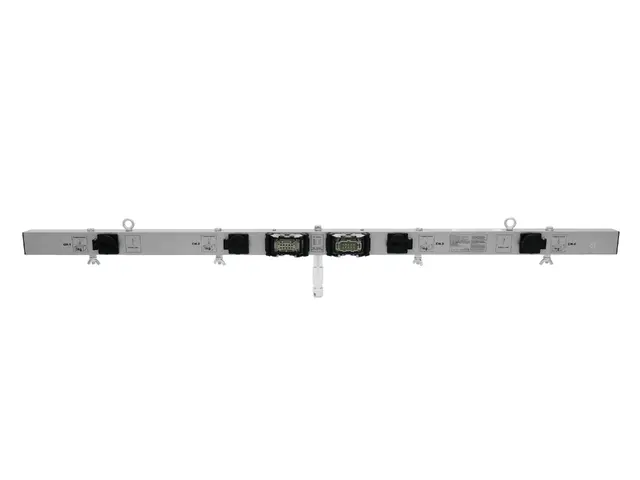

EUROLITE AB-410X Alu-bar 1.5m IN/OUT

Features

For problem-free installations

  • Makes the installation of your lighting system really easy
  • Installed directly on the stand or crossbeam
  • Fully wired
  • With 4 spot connections
  • With 4 flap safety-plugs
  • Connection via 10-pin In/Out-socket
Technical specifications
Power supply:230 V AC, 50 Hz
Output current:Max. 16 A per channal
Dimensions:Length: 1,51 m
Width: 4 cm
Height: 19,5 cm
Weight:3,60 kg
Max. power output:14490 W
Max. total current:63 A
Max. output/channel:3680 W
Max. current/channel:16 A
Maximum load per fixation point:5 kg
Max. spaced braceload:30 kg
Max. centered braceload:25 kg
TV spigot:D = 28 mm
Dimensions (L x W x H):1510 x 195 x 40 mm
Max. service life:10 years
Packaging units
PUEANWeightDimensions
140263972024274,50 kg153cm x 12,5cm x 9,5cm
4402639720243419,90 kg156cm x 28cm x 21cm
Support
Spare parts
No spare parts available.
