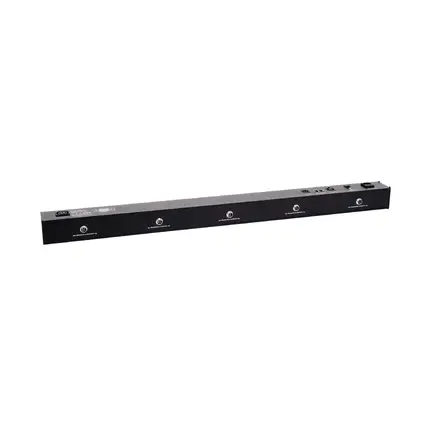

Control unit for EUROLITE LED Pixel Ball 360° 1m
EUROLITE LED PSU-5A Artnet/DMX

svg
svg
svg
svg
EUROLITE

Control unit for EUROLITE LED Pixel Ball 360° 1m

EUROLITE LED PSU-5A Artnet/DMX

Features

Control unit for EUROLITE LED Pixel Ball 360° 1m

  • Create a RGB color mixing curtain with the decorative LED Pixel Ball strings
  • For 150 pixels
  • Serial connection possible
  • Operable in stand-alone mode or via DMX and Art-Net
  • Truss installation
  • Comfortable addressing and setting via control panel with LCD display
  • Built-in functions: static colors, internal programs, dimmer, strobe, Master/Slave, string length selection
  • Master/Slave for parallel operation of several devices
  • Number of DMX channels (8, 450) selectable for numerous applications
  • Ready for connection via included IEC power cord with safety power plug
  • Switch-mode power supply for operation between 100 and 240 Volts
  • Feed-through output allows to power up to 8 devices
  • Control via stand-alone; ArtNet; DMX
  • Preprogrammed in LED PC-Control 512
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:80 W
Control:Stand-alone; ArtNet; DMX
Preprogrammed in:LED PC-Control 512
Dimensions:Length: 1 m
Depth: 7,5 cm
Height: 10 cm
Weight:2,48 kg
Output voltage:12 V AC
Outputs for pixel strings:5
Pixel control:max. 150
Serial connection:yes
Number of DMX channels:8/450
DMX connection:3-pin XLR
Art-Net connection:RJ45, CAT5e
Dimensions (L x W x H):1005 x 75 x 100 mm
Packaging units
PUEANWeightDimensions
140263975481432,79 kg107cm x 12,5cm x 12,5cm
4402639754860012,15 kg110cm x 27cm x 27cm
