DMX-controllable pixel tube

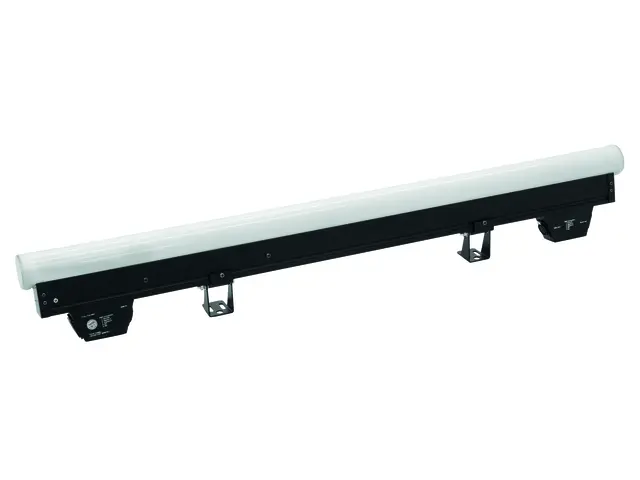

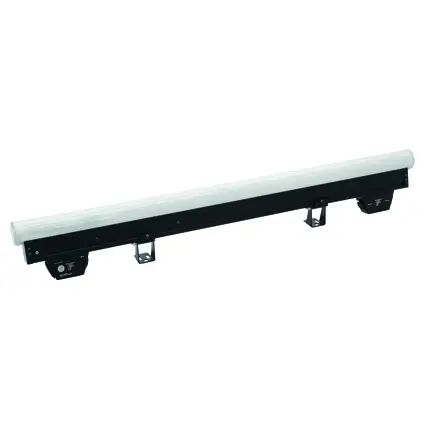

EUROLITE LED PT-100 DMX Pixel Tube

EUROLITE

DMX-controllable pixel tube

EUROLITE LED PT-100 DMX Pixel Tube

Stock for approx. 12 wk(s)
129,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 51928603

Features
  • Tube with 144 LEDs: 48 x red, 48 x green, 48 x blue
  • Subdivided into 16 pixels (illumination units à 9 LEDs) which can be controlled individually by DMX
  • Can be cascaded as desired in order to build-up large effect areas
  • Operable in stand-alone mode or via DMX interface
  • DMX512 control possible via any commercial DMX controller (occupies 48 channels)
  • DMX-512-connection via 5-pin XLR socket and plug
  • Sound-control via built-in microphone
  • Master/Slave for parallel operation of several devices
  • Comfortable addressing and setting via control panel with LED display and four operating buttons
  • Functions: static colors, automatic color change, seven internal programs with variable speed, dimmer settings via DMX
  • Adjustable white balance
  • Plastic housing with brackets for hanging as well as standing installation indoors
  • Feed-through output allows to power up to 8 devices
  • Switch-mode power supply for operation between 100 and 240 Volts
  • Ready for connection via included IEC power cord with safety power plug
  • Control: DMX
  • Control: Stand-alone
  • Color generation: RGB
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
DMX-control-channels:48
DMX-512-connection:5-pin XLR
Sound-control:via built-in microphone
LED type:5 mm
LED number:144 (R48, G48, B48)
Beam angle:120°
Dimensions (L x W x H):1006 x 52 x 153 mm
Beam angle:120 °
Cooling fan:No, cooling by convection
IP classification:IP20
Weight:2 kg
Power consumption:17 W
Height:15,3 cm
Depths:5,2 cm
Length:100 cm
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397524192 2,50 kg 105,5cm x 10cm x 19,5cm
4 4026397524208 11,00 kg 108cm x 22,5cm x 41,5cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00107322.pdf 1.20 en/de
Support
Name Version Language
51928603 LED PC Control fixtures
00105953.zip
1.00 de
Catalog pages
Name Version Language
00097507.pdf 25.00 de
00098265.pdf 25.00 en
00115243.pdf 27.00 de
00115680.pdf 27.00 en
