Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	200 W
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction:	3 x 1.5 mm² H05VV-F
Power output:	P-Con (gray), mounting version
Lamp type:	LED lamp
LED type:	6 x 60 W COB (chip-on-board) amber (A) 120 x 0.1 W SMD 5050 3in1 RGB (homogenous color mix)
Flash rate:	0.8 - 20 Hz
DMX channels:	12; 16; 43
DMX input:	3-pin XLR (M) mounting version 5-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version 5-pin XLR (F) mounting version
Cooling:	2 x temperature-controlled fan
Control:	Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Fixtures available for:	Light Captain
Projection:	Flicker-free
PWM frequency:	4000 Hz
Beam angle (1/2 peak):	120°
Beam angle:	120°°
Beam angle (1/10 peak):	120°
Color temperature:	1800K
Housing color:	Black
Attachment system:	Bracket for floor use Omega bracket
Display type:	4 digit 7-segment LED display
USB port:	Type A
Use of brands:	Built with SEETRONIC connector
Material:	Metal
Dimensions:	Width: 100.0 cm Depth: 14.0 cm Height: 15.0 cm
Weight:	5.10 kg
Noise classification:	Class 0 (no noise at all)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397755725	5,85 kg	105cm x 17cm x 24cm
4	4026397755732	24,60 kg	108cm x 37cm x 51cm

Spare parts

Pcb (Power supply) 36V+12V LED RETRO 6 Spot ABL (HS-U400D36+12)

LED COB 60W 2000K RETRO 6 Spot ABL

Fan 12V LED RETRO 6 Spot ABL

Pcb (Control) LED RETRO 6 Bar ABL

Pcb (Treiber) LED RETRO 6 Bar ABL

EUROLITE Omega bracket 70

Pcb (LED) LED RETRO 6 Bar ABL (H-923)

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
51916645-Images-.zip

Video link

https://www.youtube-nocookie.com/embed/S9-lYZ38rLc

EUROLITE LED RETRO 6 Bar ABL

Name: EUROLITE LED RETRO 6 Bar ABL
Uploaded: 2022-01-01
Description: Warm white blinder with additional colored LEDs for atmospheric lighting

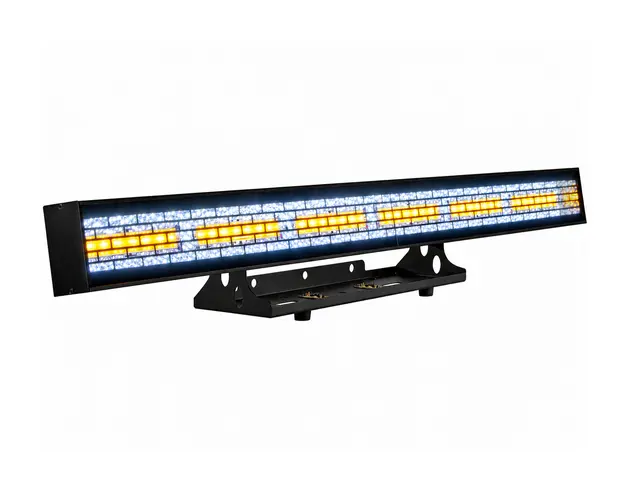

Warm white blinder with additional colored LEDs for atmospheric lighting-MainBild

Warm white blinder with additional colored LEDs for atmospheric lighting-Bild-1

EUROLITE LED RETRO 6 Bar ABL

Stock for approx. 12 wk(s)

249,00 €

Stock for approx. 12 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 51916645

120°

This 100 cm bar combines modern lighting technology with a distinctive retro look. Six powerful LED strips produce a very warm, almost orange-toned white light.

Each strip is equipped with a 60 W LED and can be controlled individually. The reflective sections between them are illuminated by a total of 120 RGB LEDs, which are divided into 12 segments and can be controlled individually.

A range of DMX modes is available. In the most advanced mode, all elements can be controlled individually, while reduced modes still offer a wide variety of effects even with smaller DMX controllers.

The series is complemented by a matching spot fixture that delivers the same effects in a different form factor.

Warm white blinder with additional colored LEDs for atmospheric lighting

6 LEDs 60 W COB (chip-on-board) amber (A)
LEDs controlled separately
120 LEDs 0.1 W SMD 5050 3in1 RGB (homogenous color mix)
10 segments controlled separately
Blinder effect; strobe effect
With a beam angle of 120°
Silent operation
Flicker-free
Control via stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
3 integrated show programs
With bracket for floor use; with omega bracket
Mains input and output for power linking up to 8 units
Built with SEETRONIC connector
For application areas such as: Clubs/dancing school; wedding/gala/events; mobile use; stage; theater; mobile djs / entertainer; restaurants, bars and hotels; rental
Application possibility: Standing; suspended
Can be operated in 12; 16; 43 CH mode
