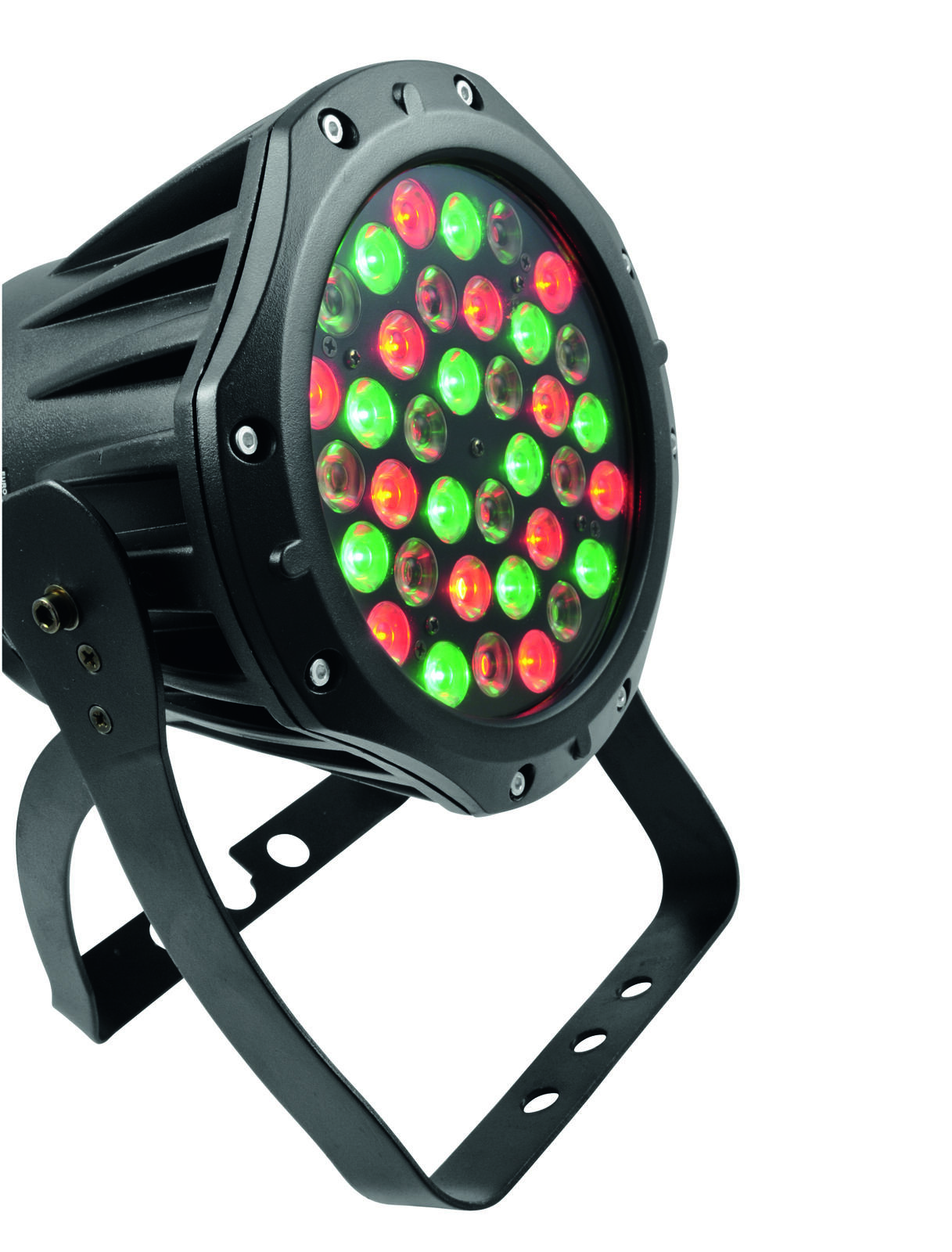

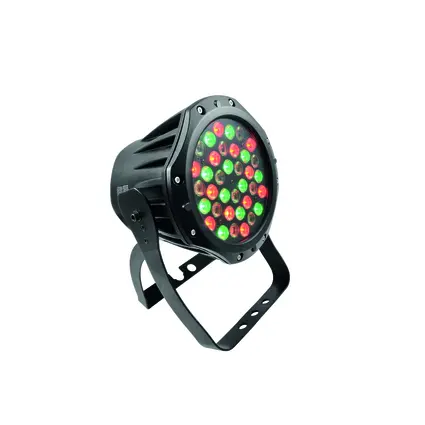

Weather-proof DMX spotlight (IP65) with 36 x 1 W LED in red, green and blue
EUROLITE LED IP PAR 36x1W RGB

svg
svg
svg
svg
svg
svg
15°
svg
svg
svg
EUROLITE

Weather-proof DMX spotlight (IP65) with 36 x 1 W LED in red, green and blue

EUROLITE LED IP PAR 36x1W RGB

Features

Weather-proof DMX spotlight (IP65) with 36 x 1 W LED in red, green and blue

  • Equipped with 36 x 1 W LED: 12 x red, 12 x green and 12 x blue
  • 3 or 5 DMX channels selectable for numerous applications
  • Beam angle approximately 15°
  • Locking possibility at the mounting bracket

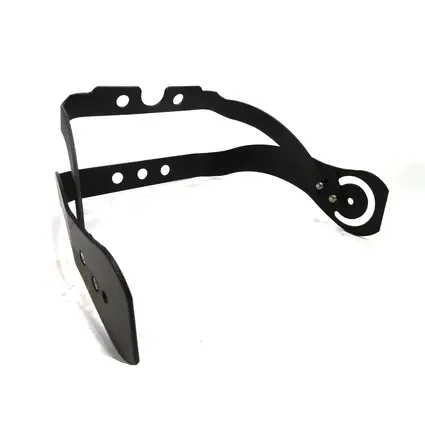

  • Ideal as floor spot via additional bracket
  • Stepless RGB color change
  • 7 color presets and 4 built-in programs
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Dimmer and strobe settings via DMX
  • Suitable for external use (IP65)
  • Perfect for architectural lighting in public places and buildings

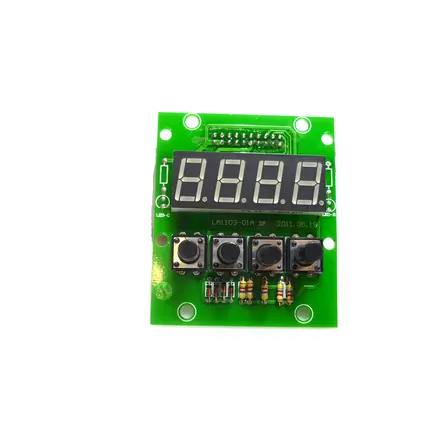

  • Addressing via control panel with 4-digit LED display
  • Control via control panel with display or any regular DMX controller
  • Feed-through output allows to power another device
  • After every 8 spot the fixtures must have a renewed connection with the power mains
  • 36 powerful LEDs 1 W high-power R/G/B (homogenous color mix)
  • Strobe effect
  • The device is cooled by passive convection cooling
  • Control via stand-alone; DMX
  • Preprogrammed in Light´J; LED PC-Control 512
  • With a beam angle of 15°

Package contents

  • 1 x adapter cable
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:50 W
IP classification:IP65
Power connection:Mains input via 3-pin screw plug connector (M) IP power supply cord with safety plug (provided)
Power output:1 x 3-pin screw plug connector (F) IP
Lamp type:LED lamp
LED type:36 x 1 W high-power R/G/B (homogenous color mix)
DMX channels:3; 5
DMX input:1 x 3-pin screw plug connector (M) IP
DMX output:1 x 3-pin screw plug connector (F) IP
Cooling:Passive convection cooling
Control:Stand-alone; DMX
Preprogrammed in:Light´J; LED PC-Control 512
Beam angle:15°
Beam angle (1/2 peak):15°
Housing color:Black
Dimensions:Width: 24 cm
Depth: 20 cm
Height: 32 cm
Weight:3,85 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
Packaging units
PUEANWeightDimensions
140263974348424,30 kg27cm x 27cm x 32cm
240263974348739,30 kg58cm x 30cm x 35,5cm
Support
Downloads
Loading the documents. Please wait...
Manufacturer information
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
