LED zoom effect bar with RGBW color mixing, incl. IR remote control
EUROLITE Zoom4Bar QCL Bar

download image
Detail images (29 overall)
svg
svg
5 - 80°
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
EUROLITE

LED zoom effect bar with RGBW color mixing, incl. IR remote control

EUROLITE Zoom4Bar QCL Bar

Stock for approx. 12 wk(s)
629,00 €
add to cart
Find a dealer
List price excl. 19% VAT
Prices in retail stores may vary.
Item no. 51913896
Print product
Product badge
Here you find the manual and downloads for
EUROLITE Zoom4Bar QCL Bar

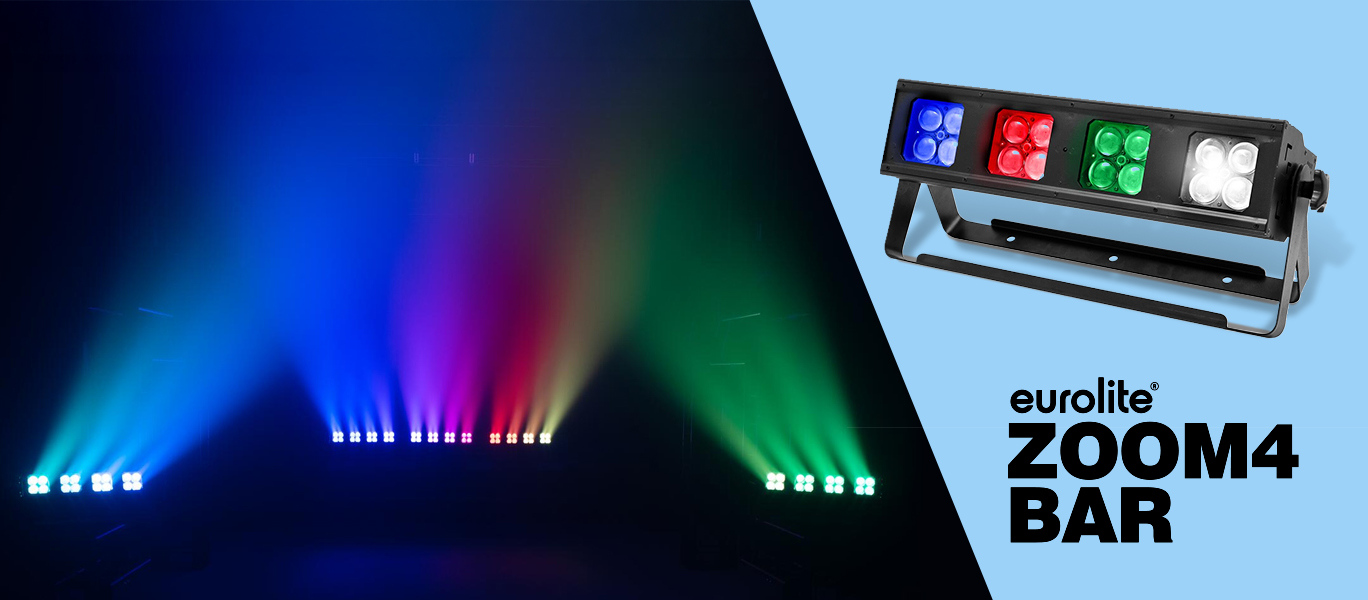

EUROLITE Zoom4Bar title image

Eurolite Zoom4Bar

The Zoom4Bar is a spotlight bar that stands out for its impressive motorized zoom. It can be adjusted individually for each of the four lenses from a beam angle of 5° to 75° (from very narrow to very wide). Thanks to this flexibility, you can use the Zoom4Bar for a wide range of lighting purposes: Use the bar as backlight, uplight or eye-catching show effect.
Creative lighting design
You can achieve a special effect by having the zoom of the four lenses become narrower and wider at different times: Especially in combination with fog, waves and patterns of light are created. When used in this way, the Zoom4Bar is also an effective show effect.

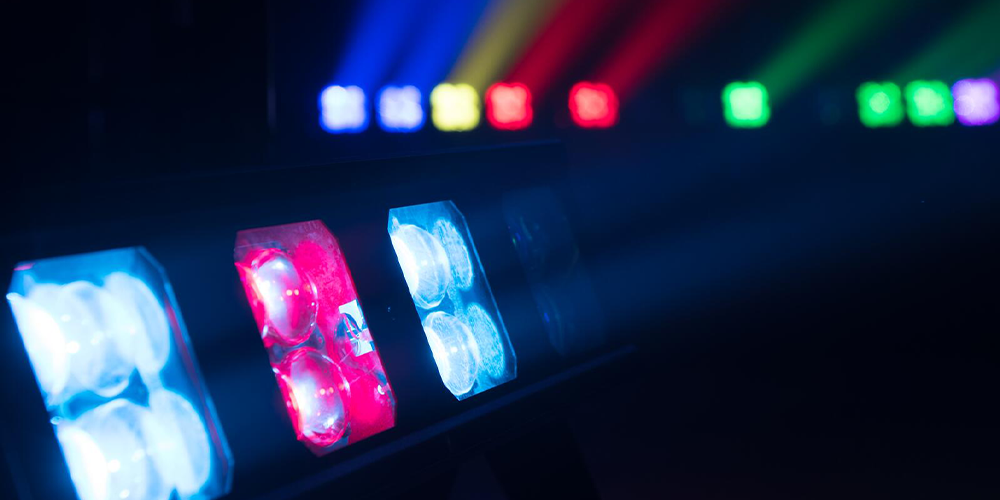

EUROLITE Zoom4Bar effect image 1

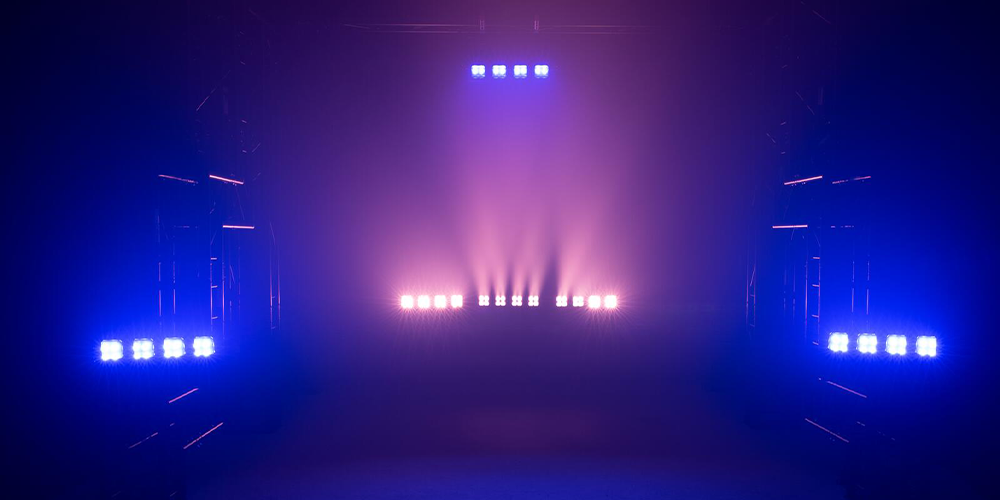

EUROLITE Zoom4Bar effect image 2
Color mixture
You can adjust the color for each of the 4 lenses individually. This allows you to create either absolutely congruent color mixes or multicolor effects with the 4 lenses.

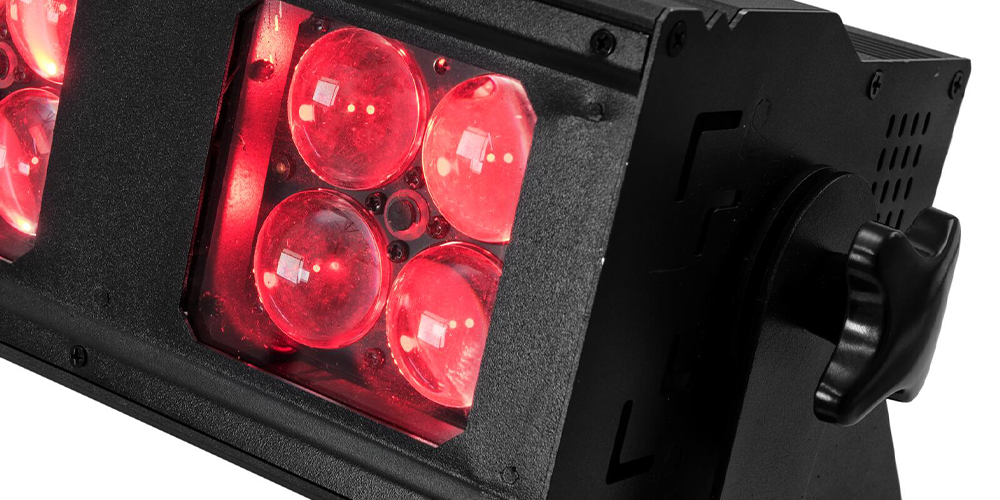

EUROLITE Zoom4Bar close-up
Features

LED zoom effect bar with RGBW color mixing, incl. IR remote control

  • 4 segments for dynamic running lights
  • 16 powerful LEDs 10 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
    4 segments controlled separately
  • Zoom motor-driven
  • Strobe effect
  • Integrated show programs
  • Direct color selection for 17 preset colors
  • The device is cooled by cooling fan
  • Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); Master/slave function
  • Flicker-free
  • With a beam angle of 5° - 80°
  • With double bracket
  • Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
  • Preprogrammed in Light´J; LED PC-Control 512; Light Captain
  • For application areas such as: Clubs/dancing school; Stage; mobile djs / entertainer
  • Application possibility: Standing; suspended; on stand

Package contents

  • 1 x remote control
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:140 W
IP classification:IP20
Protection class:Protection class I
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:1 x P-Con (gray), mounting version
Lamp type:LED lamp
LED:16 x 10 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
Flash rate:0 - 20 Hz
Equipment:Zoom motor-driven
DMX channels:5; 7; 9; 20; 26
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:Stand-alone; DMX; IR remote control; Sound to light via Microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); Master/slave function
Preprogrammed in:Light´J; LED PC-Control 512; Light Captain
Projection:Flicker-free
Beam angle:5° - 80°
Beam angle (1/2 peak):5 - 75°
Beam angle (1/10 peak):10 - 80°
Housing color:Black
Attachment system:Double bracket
Dimensions:Width: 57,5 cm
Depth: 19,5 cm
Height: 23 cm
Weight:8,95 kg
Noise classification:Class 2 (slight noise)
Photobiological safety:Risk Group 0
Remote control
Battery:1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
Packaging units
PUEANWeightDimensions
1402639764361910,25 kg65cm x 20cm x 36cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
E3000021
Locking screw M8X25 cross handle, large
