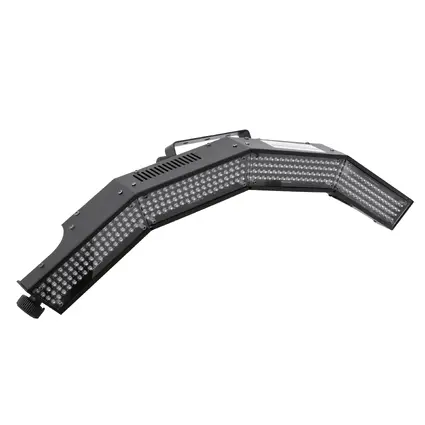

LED Bow Bar 288/4 MCL

Unusual design, powerful performance!

Item no. 51913890

  • DMX512 control via regular DMX controller (occupies max. 27 channels)
  • 4, 6, 9, 15, 24, 27 DMX channels selectable for various applications
  • Controller connection and synchronisation via two 3-pin XLR plugs
  • Comfortable addressing and setting via control panel with LED display and four operating buttons
  • Further display settings possible: Display on or off, display upside-down
  • Equipped with 288 x 5 mm LEDs (red: 96, green: 96, blue: 96) distributed in 4 segments, and 24 subsegments, respectively
  • Operable in Stand-Alone Mode or DMX interface
  • DMX-512 control possible via any commercial DMX-controller
  • Sound-control via built-in microphone
  • Functions: static colors; RGB color change, color mix settings, 10 built-in programs and strobe effect with variable speed; Master/Slave
  • 4 LED Bow Bars make an LED circle
  • One pair of knurled-head screws included in delivery with each device
  • Locking possibility at the mounting bracket
  • Ready for connection via IEC power cable included in delivery
Power supply:230 V AC, 50 Hz
Power consumption:90 W
DMX channels:max. 27
DMX connection:3-pin XLR
LED type:5 mm
LED number:288
Beam angle:30┬░
Dimensions (L x W x H):710 x 200 x 150 mm
Weight:2.5 kg
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
PU EAN Weight Dimensions
1 4026397403060 3.250 kg 76cm x 24cm x 17cm
4 4026397403077 14.950 kg 77.5cm x 49cm x 35.5cm
