High performance LED Moving Head

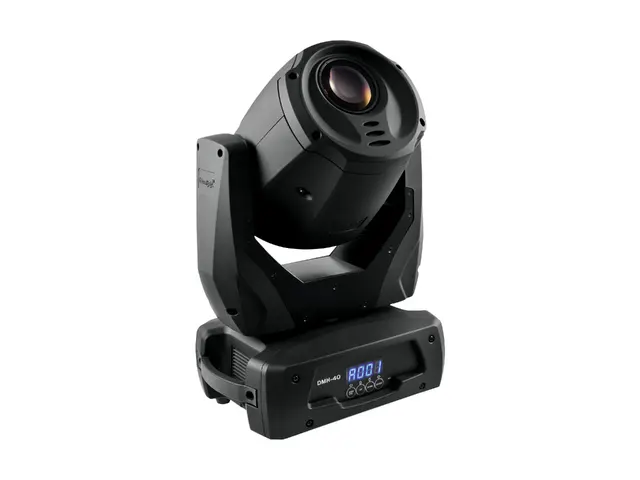

FUTURELIGHT DMH-40 LED Moving Head

FUTURELIGHT

High performance LED Moving Head

FUTURELIGHT DMH-40 LED Moving Head

Item no. 51841835

Features
  • 1 extra bright 40 W LED for best luminance
  • Comparable to the light output of 250 W discharge lamp
  • Effect wheel with rotating 3-facet prism and 3D prism and frost filter
  • Macro function for rotating gobos/rotating prism combinations
  • Color wheel with 8 different dichroic color filters plus white
  • Switchable color change (mode 1: only full colors, mode 2: color change at every position)
  • Rainbow effect with adjustable speed in both directions
  • Gobo wheel with 7 rotating gobos plus open
  • All gobos can be interchanged
  • Slot-in gobo system for exchanging gobos without tools
  • With gobo shake function
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Motorized focus
  • Dimmer
  • Strobe effect with adjustable speed
  • Random strobe effect
  • RDMX (Remote DMX Addressing): DMX address setting via controller possible
  • Power standby mode
  • PAN angle switchable between 630° and 540°
  • Switch-mode power supply, automatic power supply adaption between 100 and 240 Volts without power selector
  • Control board with 4-digit display and foil-keyboard for adjusting the DMX starting address, PAN/TILT Reverse, Program, Reset
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • 56 preprogrammed scenes in Program Run for stand-alone operation
  • Number of scenes in Program Run can be changed individually
  • The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory
  • 7 built-in programs can be called up via DMX controller
  • Software upload by optional FUTURELIGHT ULB-1 upload box via DMX link
  • Sound-controlled via built-in microphone
  • DMX control via every standard DMX controller
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
DMX channels:14
DMX connection:5-pin and 3-pin XLR
Sound-control:via built-in microphone
Flash-rate:22 Hz
LED type:LUMINUS SST-90
LED number:1
Beam angle:15°
Color-wheel:8 dichroic filters plus open
Rotating gobo-wheel:7 gobos and open
Outside diameter of the gobos:27 mm
Image diameter of the gobos:22 mm
Length of base:301 mm
Width of yoke:247 mm
Height (head horizontal):406 mm
Weight:11 kg
Color:Black
Beam angle:15 °
Power consumption:150 W QC sample report
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397420708 12,70 kg 46,5cm x 34cm x 39cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00077944.pdf 1.10 de/en
DMX protocol
Name Version Language
00056370.xls 1.00 de/en/fr/es
Support
Name Version Language
00060900.dsp 1.00 en
EUROLITE LED PC-Control
00060926.lpp
1.00 en
Catalog pages
Name Version Language
00067195.pdf 21.00 de
00067954.pdf 21.00 en
00086519.pdf 23.00 de
00087097.pdf 23.00 en
Service document
Name Version Language
00060647.pdf 1.00 en
Video file
Name Version Language
00058549.flv 0.00 de/en/fr/es
All images
Name Version Language
51841835.zip
