Kaleidoscopic deco effect
FUTURELIGHT EVO-7 lighting effect

FUTURELIGHT

Kaleidoscopic deco effect

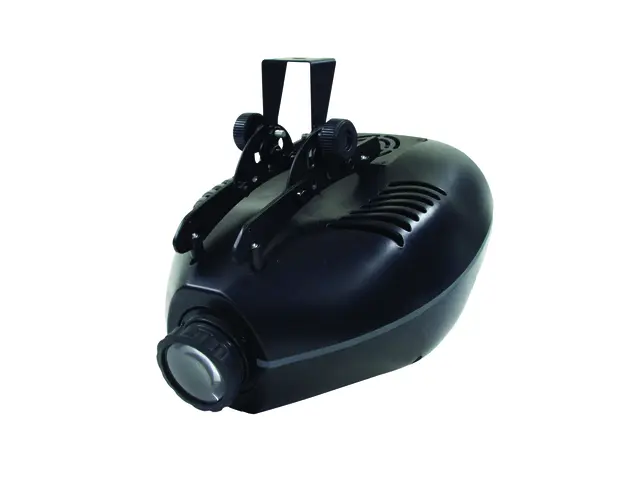

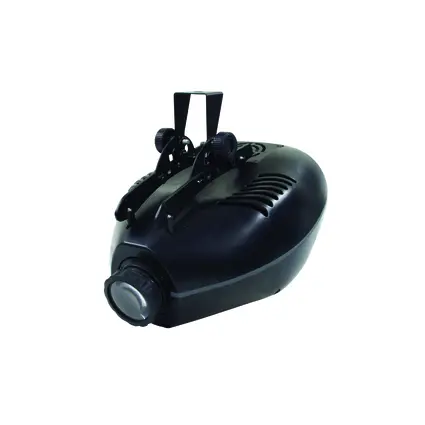

FUTURELIGHT EVO-7 lighting effect

Item no. 51837560

Features
  • DMX-controlled operation or stand-alone operation with Master/Slave function (1 slave)
  • Special designed gobo / color wheel
  • Variable rotation speed of Kaleidoscope
  • Sound-controlled via built-in microphone
  • For MSD/HSD 250, MSD 250/2 or MSD/HSD 200 lamp
  • DMX control via every standard DMX controller
Technical specifications
Power supply:230 V AC, 50 Hz
Beam angle:30°
DMX channels:4
DMX connection:3-pin XLR
Sound-control:via built-in microphone
Dimensions (L x W x H):360 x 300 x 290 mm
Weight:10 kg
Beam angle:30 °
Power consumption:375 W
Number of DMX channels:4
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397174670 11,75 kg 50cm x 38cm x 34cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00005951.pdf 1.40 de/en/fr/es
DMX protocol
Name Version Language
00006938.xls 0.00 es/fr/en/de
Support
Name Version Language
00014156.dsp 0.00 es/fr/en/de
Data sheet
Name Version Language
00006010.pdf 0.00 en
00006107.pdf 0.00 fr
00006136.pdf 0.00 es
00006170.pdf 0.00 de
Press report
Name Version Language
Soundcheck_06_05
0.00 de
Service document
Name Version Language
00036204.pdf 1.10 en
Video file
Name Version Language
00040120.flv 0.00 de/en/fr/es
All images
Name Version Language
51837560.zip
