Scanner with 20 W COB LED, rotating gobos and color wheel
EUROLITE LED TSL-200 Scan COB

svg
13°
svg
svg
svg
svg
EUROLITE

Scanner with 20 W COB LED, rotating gobos and color wheel

EUROLITE LED TSL-200 Scan COB

Stock for approx. 2 wk(s)
179,00 €
150,42
-16% valid until 31.01.2020
Save money: This article is available in a bundle.
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 51786123

Save money: This article is available in a bundle.
Sets are loaded. Please wait...
Features

Scanner with 20 W COB LED, rotating gobos and color wheel

  • Equipped with a 20 W COB LED
  • Long LED life
  • Comparable to the light output of a 250 W halogen lamp
  • DMX-controlled operation or stand-alone operation with Master/Slave function (up to 4 slaves)
  • 14 motion macros can be called up via DMX controller
  • Sound-controlled via built-in microphone
  • Microphone-sensitivity adjustable via rotary-control
  • Fuzzy sound control: program continues automatically during periods without music or bass-beat
  • 7 brilliant, dichroic colors plus white
  • Rainbow effect with adjustable speed
  • Gobo-wheel with 7 rotating gobos plus open
  • With gobo-shake function
  • Strobe effect with 1-18 flashes per second
  • Strobe effect with adjustable speed
  • Random strobe effect
  • Manual focus
  • Dimmer
  • Fan-cooled
  • Small and portable
  • Lightbeam with 13° radiation angle
  • Control board with 4-digit display for adjusting the DMX-starting address, Pan/Tilt-Reverse
  • 6.3 mm jack socket for remote control
  • Blackout, gobos, colors and Auto/Manual Mode applicable in Stand Alone mode via optional EUROLITE RC-1 remote control
  • Advantages of LED technology: long life, low power consumption, minimal heat emission, defacto maintenance free with brilliant light radiation
  • DMX control via every standard DMX controller
  • Color generation: Color wheel 7 dichroic filters plus open
  • Control: Sound to light via Microphone; DMX; Stand-alone
  • Effect: Gobo effect
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:70 W
IP classification:IP20
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)

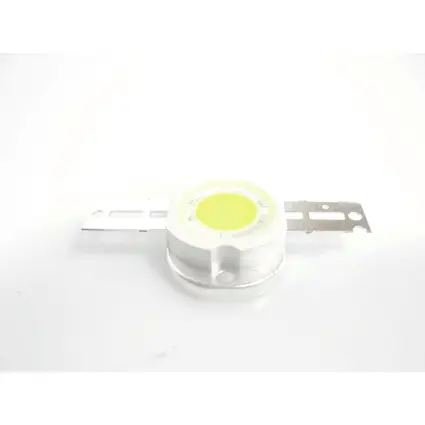

LED:1 x COB (chip-on-board) 20 W Color wheel
Beam angle:13°
Flash rate:0 - 18 Hz
Equipment:Focus manual
Color generation:Color wheel 7 dichroic filters plus open
Gobos:fehlt, 7 gobos and open
outside diameter 25mm
image diameter 20mm
Shake effect
DMX channels:9
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling fan:Yes
Control:Sound to light via Microphone
DMX
Stand-alone
Housing color:Black
Width:20,5 cm
Height:30 cm
Depth:39 cm
Weight:6,20 kg
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397390742 7,20 kg 48cm x 28,5cm x 30cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
51786123-Manual-76190-1.100-de_en.pdf (351 KB) 1.100 de_en
DMX protocol
Name Version Language
51786123-DMX-48755-1.000-de_en_es_fr.xls (60 KB) 1.000 de_en_es_fr
Video file
Name Version Language
51786123-Video-51080-de_en_es_fr.flv (25 MB) 0.000 de_en_es_fr
All images
Name Version Language
51786123-Images.zip
Publications
main catalog 2019 St. E #28
On page: 122
Size: 284 MB
