Bright spot with 60 W LED, 2 gobo wheels, color wheel and prism

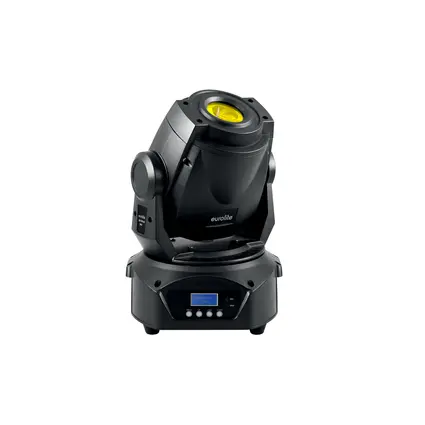

EUROLITE LED TMH-60 MK2 Moving Head Spot COB

svg
svg
svg
14°
svg
svg
svg
svg
svg
svg
EUROLITE

Bright spot with 60 W LED, 2 gobo wheels, color wheel and prism

EUROLITE LED TMH-60 MK2 Moving Head Spot COB

available in approx. 9 wk(s)
375,00
Save money: This article is available in a bundle.
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 51785983

TMH-60 MK2

Functional eye-catcher

A powerful spotlight with a 60 watt LED. 7 dichroic colors (plus white), 2 gobo wheels with a total of 14 gobos (plus open) and goboshake function as well as a rotating 3-facet prism provide variety. An electronic dimmer and a motorised focus are also on board.
Save money: This article is available in a bundle.
Sets are loaded. Please wait...
Features

Bright spot with 60 W LED, 2 gobo wheels, color wheel and prism

  • Compact lightweight
  • 14, 11 or 2 DMX channels selectable
  • Equipped with a 60 W COB LED
  • 7 brilliant, dichroic colors plus white
  • Rainbow effect with adjustable speed in both directions
  • Gobo-wheel 1 with 6 rotating gobos plus open
  • With gobo-shake function
  • Gobo-wheel 2 with 8 static metal gobos plus open
  • 3-facet prism (rotating)
  • Preprogrammed scenes in Program Run for stand-alone operation
  • Electronic dimmer
  • Motorized focus
  • Programmable color-change speed and strobe effect
  • Sound-controlled via built-in microphone
  • Fan-cooled
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • PAN-angle switchable between 540°, 360° and 180° (in sound and auto mode)
  • TILT-angle switchable between 270°, 180° and 90° (in sound and auto mode)
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Control board with LC display and foil-keyboard for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
  • Switch-mode power supply for operation between 100 and 240 Volts
  • DMX control via every standard DMX controller
  • LED: 1 x COB (chip-on-board) 60 W Color wheel
  • Control: Stand-alone; Sound to light viaMicrophone; DMX
  • Effect: Gobo effect; Single Beam
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:135 W
LED:1 x COB (chip-on-board) 60 W Color wheel
Max. TILT movement:Exact positioning (16 bit resolution) 270° Positioning switchable to 180° and 90° Auto position correction (feedback)
Max. PAN movement:Exact positioning (16 bit resolution) 540° Positioning switchable to 360° and 180° Auto position correction (feedback)
Equipment:rotating gobo wheel; static gobo wheel; Prisma 3-fold; Focus motor-driven
Gobos:static gobo wheel with 8 gobos and open
rotating gobo wheel with 6 gobos and open
DMX channels:2; 11; 14
IP classification:IP20
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Cooling fan:Yes
Control:Stand-alone
Sound to light via Microphone
DMX
Beam angle:14°
Case color:Black
Width:25 cm
Height:31,5 cm
Depth:24,5 cm
Weight:7,40 kg
DMX connection:3-pin XLR
Color-wheel:7 colors and open
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397526844 8,30 kg 36cm x 31cm x 30cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
51785983-Manual-84438-1.000-de_en.pdf (817 KB) 1.000 de_en
DMX protocol
Name Version Language
51785983-DMX-84426-1.000-de_en.xls (71 KB) 1.000 de_en
Video file
Name Version Language
51785983-Video-91396-es_fr_en_de.flv (24 MB) 0.000 es_fr_en_de
All images
Name Version Language
51785983-Images.zip
Publications
main catalog 2019 St. E #28
On page: 114
Size: 284 MB
