EUROLITE FBL-20 showlaser RGY

EUROLITE

High-power laser

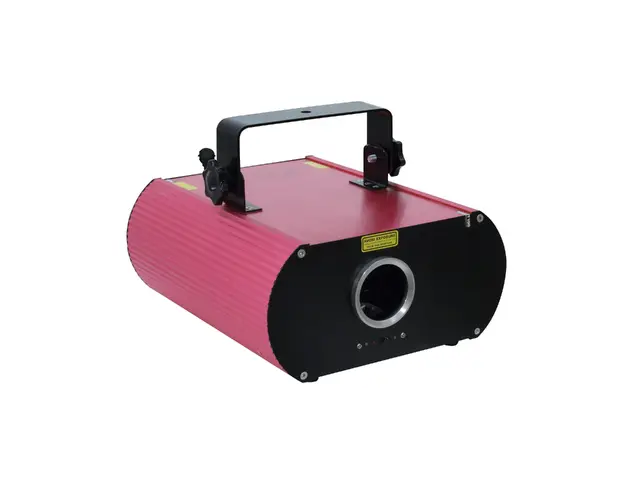

EUROLITE FBL-20 showlaser RGY

Item no. 51741405

Features
  • Laser with the classification 3B
  • RGY-color-mixture
  • Operation: MCU, DMX512, auto, sound-active
  • Effects: layers, grids, tunnels, waves, writing, graphics, animation
  • Laser diode: 650 nm red, 532 nm green
  • Laser safety by key switch for locking startup and connection for emergency off
  • EUROLITE NOT-01 Laser interlock (51741435) must be ordered separately in order to operate this laser!
  • Read user manual before use. Laser installation, alignment and operation only by qualified and trained personell! Never open the housing!
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
DMX channels:9
DMX connection:3-pin XLR
MCU-connection:9-pin SUB-D
Maximum optical power:20 mW
Laser classification:3B
Wavelength:650/532 nm
Laser-modules:Red 20 mW, green 10 mW
Beam:approx. 12 mm / 1 mrad
Scanning speed:2000 pps
Dimensions without bracket (L x W x H):335 x 270 x 135 mm
Weight:5.5 kg
Power consumption:30.00 W
Packaging units
PU EAN Weight Dimensions
1 4026397353945 6,00 kg 40cm x 33cm x 25cm
4 4026397365030 26,05 kg 68cm x 43cm x 54,5cm
