Silent haze machine X-310II

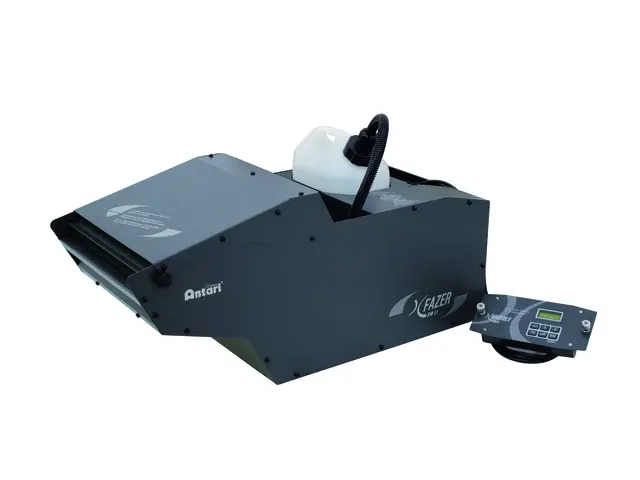

ANTARI X-310II Fazer w. controller X-10II

ANTARI

Silent haze machine X-310II

ANTARI X-310II Fazer w. controller X-10II

Item no. 51702625

Features
  • Produces fine, translucent haze without nebulizing the room at the same time
  • Ideal for accentuating light and laser beams
  • Combines the reliability of a fog machine with the extremely silent operation of a haze machine
  • Low-noise operation without air compressor
  • Twin fan, adjustable in 3 steps
  • Efficient: <1 liter fluid per 2 hours continuous fog (30 % output)
  • Operates on standard waterbased fluid
  • Removable tank
  • Fluid level indication with low fluid control indicator
  • Control via integrated DMX interface or supplied cable control module X-10II with LCD screen
  • X-10II functions: timer with interval, duration and output volume; continuous output; manual activation; DMX starting address, heater and fan
  • DMX interface with 3- and 5-pin connectors
  • Metal housing with carrying handles
  • Floor-mounted operation only
  • Optional flightcase for touring applications
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:1000 W
Tank capacity:2.4 l
Warm-up time:12 min.
Fluid consumption:45 min./liter (100 % output)
2 hrs/liter (30 % output)
Output volume:3500 cft/min. (approx. 100 m³/min.)
Output pressure:0.686 pa
Dimensions (L x W x H):635 x 275 x 280 mm
Weight:20.5 kg
Packaging units
PU EAN Weight Dimensions
1 4026397132014 21,75 kg 77cm x 38cm x 37cm
2 4026397230338
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
MKI
00000797.pdf
0.00 en
MKI
00000798.pdf
0.00 de/en/fr
MKII
00055932.pdf
1.10 de/en/fr
