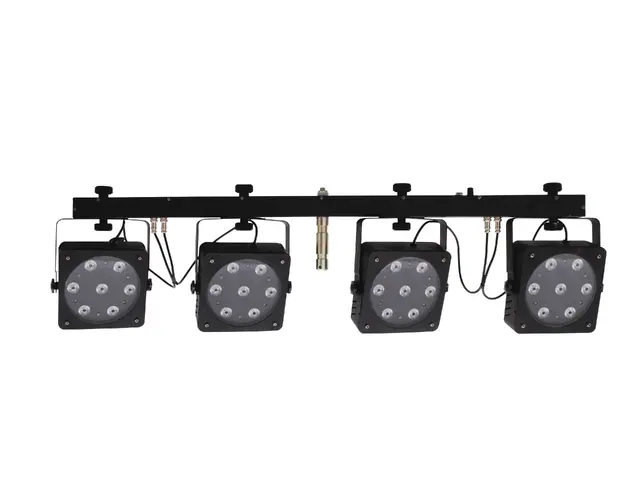

DMX LED spotlight set with 28 tri-color LEDs for mobile use
EUROLITE LED KLS-800 Compact lightset

EUROLITE

DMX LED spotlight set with 28 tri-color LEDs for mobile use

EUROLITE LED KLS-800 Compact lightset

Third time is a charm!
A combination of its own kind. Because the KLS-800 combines popular features of the KLS series with an outstanding illumination power. Instead of using common LEDs, highly-modern Tricolor LED chips (TCL) are encased in the four spots. Every chip is accommodated with three LEDs, each having an one watt power output. What is the advantage of the TCL? The multichip technology, where the LEDs close ranks and light escapes through a collective lens, guarantees a homogeneous color mixture, even on short distances. The colors are concentrated and therefore seem to be more saturated. At the same time, the Tricolor LEDs do mix a pure white, impossible to create with conventional RGB LEDs.
The KLS-800 really is powerful and can be compared to a bar of PAR-56 spots with different colors. And despite this improvement, the well-known amenities remain with the series of course. The spots are unbelievable flat, the systems only weighs a few kilograms and has very compact measures. A bag is still included in the delivery, so transportation is easy. Altogether, the system is not bigger as a guitar case. This combination really has got what it takes!
Features

DMX LED spotlight set with 28 tri-color LEDs for mobile use

  • Complete LED light set consisting of slimline 4 spots and a crossbar with integrated DMX control unit and stand adaptor
  • Ultra-light ideally suited for mobile use
  • Comes pre-assembled with pratical transport bag
  • 7 x tri-color LED (TCL) per spot
  • Through the close chip placement of the multichip technology, an exquisite color mix even with short distances to the illuminated surface is provided
  • Movable and tiltable spotlights
  • DMX-controlled operation or stand-alone operation with processor-controlled color change
  • Master/Slave operation
  • Sound-control via built-in microphone with sensitivity control
  • Convenient control possible via optional 4-pedal foot pedal FP-1 (preset, sound control, freeze, blackout)
  • DMX512 control via regular DMX controller (occupies 15 channels)
  • Optimized for control with the optional control panel DMX LED Operator 4
  • Via DMX, each spot can be individually controlled
  • DMX functions: dimmer, automatic mode, music control, strobe effect
  • Addressing and setting via control panel with 4-digit LED display
  • Suited for installation on a lighting stand (not included) or truss
  • Black lacquered metal version
  • Ideal for bands, stages or solo entertainers
  • Ready for connection with power cord and safety plug
  • Is in EASY SHOW already preprogrammed
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:90,00 W
Control:EASY SHOW
Dimensions:Width: 1,2 m
Depth: 6,5 cm
Height: 31,5 cm
DMX channels:15
DMX connection:3-pin XLR
Sound-control:via built-in microphone
LED type:3 W TCL
LED number:28
Beam angle:30°
TV spigot:D = 28 mm
Dimensions (L x W x H):1200 x 65 x 315 mm
Dimensions case (L x W x H):1250 x 120 x 380 mm
Weight:11.5 kg
Legal specifications
Ecodesign regulation:yes
Special product:Not designed for household room illumination
intended use:show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397393361 12,20 kg 126cm x 11,5cm x 40cm
