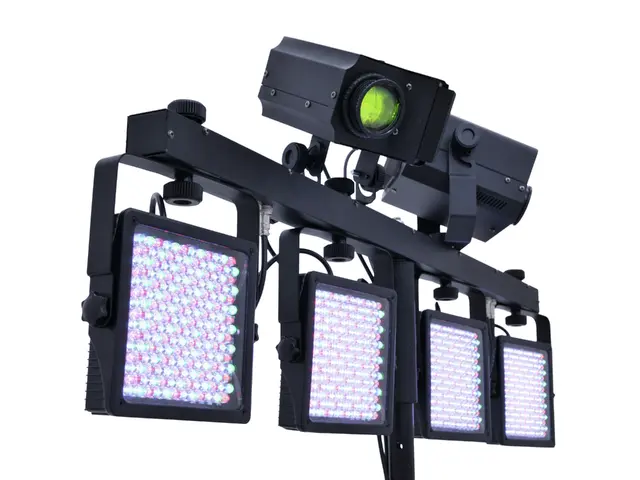

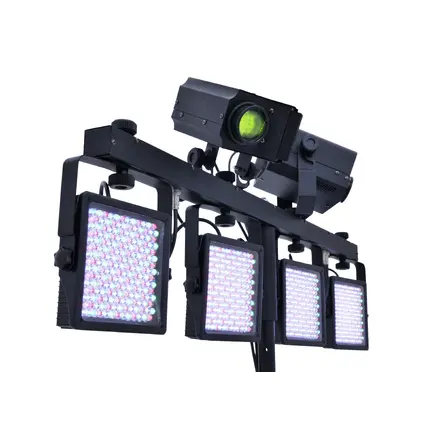

EUROLITE KLS-Kombo Pack 4

EUROLITE



EUROLITE KLS-Kombo Pack 4

Item no. 42109544

Features

42109781 EUROLITE LED KLS-401 Compact Light Set

Bar with 4 spots with 108 LEDs (RGB) each, inclusive transport bag

  • Complete LED light set with four slimline LED spots
  • Crossbar with integrated DMX control unit
  • Installation via TV pin for tripods with 28 mm interior diameter
  • Ultra-light ideally suited for mobile use
  • Comes pre-assembled with practical transport bag
  • 180 x 10 mm LED per spot (60 x red, 60 x green, 60 x blue)
  • Movable and tiltable spotlights
  • DMX-controlled operation or stand-alone operation with processor-controlled color change
  • Master/Slave operation
  • Sound-control via built-in microphone with sensitivity control
  • Convenient control possible via optional 4-pedal foot pedal FP-1 or IR remote control
  • DMX512 control via regular DMX controller (occupies 15 channels)
  • Optimized for control with the optional control panel DMX LED Operator 4
  • Via DMX, each spot can be individually controlled
  • DMX functions: dimmer, automatic mode, music control, strobe effect
  • Addressing and setting via control panel with 4-digit LED display
  • Suited for installation on a lighting stand (not included)
  • Black lacquered metal version
  • Ideal for bands, stages or solo entertainers
  • Ready for connection with power cord and safety plug
  • 4 IEC outputs for power supply of further devices
  • Color generation: RGB

60004120 OMNITRONIC Speaker System Stand alu bk

High-quality speaker stand

  • Stable speaker stand for mobile use
  • The telescopic tube is additionally fixed with a safety pin

59007081 EUROLITE STV-3529 Adapter long

Massive adapter for 35 mm tube, with 28 mm TV spigot, max. load WLL 100 kg

  • For stands with 35 mm telescopic tube
  • Connection element for cross beam with 28 mm spigot
  • With M6 and M8 fixation screw
  • Heavy version for highest stability

51918537 EUROLITE LED GF-10 Gobo flower effect

Deco flower effect with a white 10 W LED

  • Built-in mirror disc and color gobo disc with 14 gobos offers a lovely effect
  • Equipped with a white 10 W LED
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Dimmer
  • Strobe effect
  • Manual focus
  • Sound-control via built-in microphone
  • Microphone-sensitivity adjustable via rotary-control
  • Ready for connection with power cord and safety-plug
  • Addressing via control panel with 4-digit LED display
  • Perfect for use with EUROLITE KLS spotlight sets with IEC outputs
  • DMX control via every standard DMX controller

51918543 EUROLITE LED WF-10 Water effect

LED deco effect

  • Produces projections like moving water
  • Built-in effect wheel offers a lovely water effect with 5 colors plus white
  • Equipped with a white 10 W LED
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Dimmer
  • Manual focus
  • Ready for connection with power cord and safety-plug
  • Addressing via control panel with 4-digit LED display
  • Perfect for use with EUROLITE KLS spotlight sets with IEC outputs
  • DMX control via every standard DMX controller
Technical specifications

42109781 EUROLITE LED KLS-401 Compact Light Set

Power supply:230 V AC, 50 Hz
DMX channels:15
DMX connection:3-pin XLR
LED type:10 mm
LED number:720 (240 red, 240 green, 240 blue)
Beam angle:25°
TV spigot:D = 28 mm
Dimensions (L x W x H):1200 x 55 x 310 mm
Weight:7 kg
Beam angle:25 °
Power consumption:55.00 W
Lamp type:LED lamp
IP classification:IP20
Laser class:Without laser
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting

60004120 OMNITRONIC Speaker System Stand alu bk

Maximum load:30 kg
Maximum load (DIN15560):18 kg
Minimum height:1.40 m
Maximum height:2.20 m
Max. Height:2.30 m
Min. height:1.40 m
Weight:3.5 kg
Color:Black
Maximum carrying capacity:30 kg

59007081 EUROLITE STV-3529 Adapter long

Maximum load WLL (4-fold):100 kg
Maximum load BGV C1 (8-fold):50 kg
Receiver:D = 36.5 mm
Receiver:L = 80 mm
Adapter receiver:D = 30 mm
Adapter receiver:L = 115 mm
Strength:6 mm
Dimensions (L x W x H):85 x 50 x 195 mm
Weight:1.5 kg

51918537 EUROLITE LED GF-10 Gobo flower effect

Power supply:230 V AC, 50 Hz
DMX channels:3
DMX connection:3-pin XLR
LED type:10 W
LED number: 1
Beam angle: 35°
Sound-control:via built-in microphone
Dimensions:240 x 190 x 185 mm
Weight:2.2 kg
Power consumption:30.00 W
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting

51918543 EUROLITE LED WF-10 Water effect

Power supply:230 V AC, 50 Hz
DMX channels:2
DMX connection:3-pin XLR
LED type:10 W
LED number: 1
Beam angle: 35°
Dimensions:220 x 265 x 190 mm
Weight:2.6 kg
Power consumption:34.00 W
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting

30220400 OMNITRONIC XLR cable 3pin 0.5m bk

Color:Black
Plug A:1 x 3-pole XLR (M)
Plug B:1 x 3-pole XLR (F)
