EUROLITE Set 2x LED TSL-1000 Scan + Case with trolley function

svg
svg
svg
6,5 mm
svg
svg
svg
svg
svg
20°
svg
svg
svg
svg
svg
svg
svg
svg
svg
EUROLITE



EUROLITE Set 2x LED TSL-1000 Scan + Case with trolley function

No. 20000879

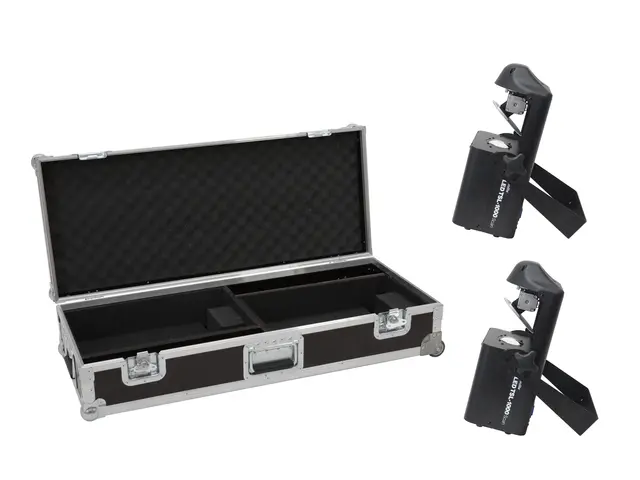

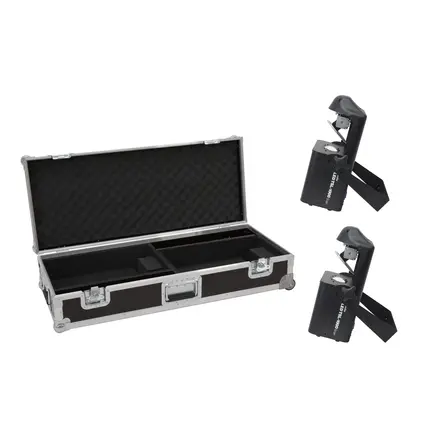

Set consisting of:
mpn51786122
2 x EUROLITE LED TSL-1000 Scan
mpn31005196
1 x ROADINGER Flightcase 2x LED TSL-1000 with trolley function
Features

EUROLITE LED TSL-1000 Scan

Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus

  • One high-power 100 W COB LED in cold white
  • Positioning within 160° PAN and 50° TILT
  • Exact positioning via 16-bit PAN/TILT movement resolution
  • Auto, music, master/slave and DMX mode
  • Built-in auto and music show programs
  • 3-facet prism
  • Gobos interchangable
  • Strobe effect with adjustable speed
  • Motorized focus
  • Electronic dimmer (0-100%) (0-100%) (0-100%) (0-100%) (0-100%)
  • Narrow beam angle of 20°
  • Control panel with OLED display for easy configuration
  • Mains input and output for power linking up to 8 units
  • Additional rubber feet protect the device when positioned on the floor
  • 1 powerful LED 100 W COB (chip-on-board) cold white (CW)
  • Exact positioning (16 bit resolution)
  • Focus motor-driven; color wheel; gobo wheel with rotating gobos; prism 3-fold
  • Gobo effect
  • Color wheel with 8 dichroic filters plus open
    rainbow effect with adjustable speed in both directions
  • Gobo wheel with rotating gobos, 7 gobos and open
    shake effect
  • The device is cooled by cooling fan
  • Control via stand-alone; DMX; master/slave function; sound to light via microphone
  • Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3
  • Flicker-free
  • With a beam angle of 20°
  • OLED display

Package contents

  • 1 x device, 1 x user manual, 1 x power cord, 1 x safety eyelet

ROADINGER Flightcase 2x LED TSL-1000 with trolley function

Trolley case, PRO version

  • High-quality workmanship with birch multiplex 6,5 mm,
  • Interior with foam padding
  • Aluminum profile frames 25mm with rounded edges
  • 3 hinged, chromium plated case handles
  • 2 chrome tip-over locks
  • 2 high-quality butterfly locks
  • Trolley
  • Branded hardware
  • Made in Europe
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Technical specifications
Weight:21,70 kg
EUROLITE LED TSL-1000 Scan
Power supply:100-240 V AC, 50/60 Hz
Power consumption:110 W
IP classification:IP20
Protection class:Protection class I
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:P-Con (gray), mounting version
Fuse:T 2 A fuse replaceable
Lamp type:LED lamp
LED type:1 x 100 W COB (chip-on-board) cold white (CW)
Max. TILT movement:50° exact positioning (16 bit resolution)
Max. PAN movement:160° exact positioning (16 bit resolution)
Flash rate:1 - 25 Hz
Equipment:Focus motor-driven; color wheel; gobo wheel with rotating gobos; prism 3-fold
Color generation:Color wheel with 8 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
Gobos:Gobo wheel with rotating gobos, 7 gobos and open
Shake effect
DMX channels:10; 15
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:Stand-alone; DMX; master/slave function; sound to light via microphone
Preprogrammed in:Light Captain; EASY SHOW 2; EASY SHOW 3
Projection:Flicker-free
Beam angle:20°
Beam angle (1/2 peak):20°
Color temperature:8000K
Illuminance in Lux (lx):Cold white (CW) 1m: 35679 lx, 3m: 4265 lx, 6m: 1055 lx
Housing color:Black
Display type:OLED display
Dimensions:Width: 25,1 cm
Depth: 14,1 cm
Height: 37,7 cm
Weight:5,80 kg
Noise classification:Class 2 (slight noise)
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
ROADINGER Flightcase 2x LED TSL-1000 with trolley function
Maximum load:25 kg
Aluminum profile frames:25 mm
Case handle:3 pc/pcs
Stop hinge:2 pc/pcs
Lock:Butterfly lock: 2 pc/pcs
Transport aid:Trolley
Use of brands:Branded hardware
Material:Birch multiplex, 6,5 mm
Accessory compartment:44 cm x 7 cm x 13 cm
Device compartment:36 cm x 25,5 cm x 13 cm
Inside dimensions:86,5 cm x 32,5 cm x 13 cm
Weight:10,10 kg
Packaging units
PUEANWeightDimensions
1402639769485725,00 kg120cm x 80cm x 50cm
