DJ controller and interface incl. software Virtual DJ LE

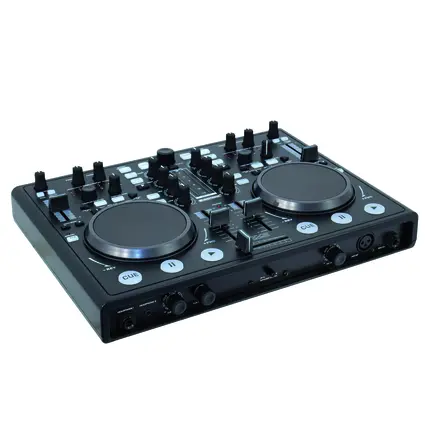

OMNITRONIC TMC-2 Interface incl. VDJ

OMNITRONIC

DJ controller and interface incl. software Virtual DJ LE

OMNITRONIC TMC-2 Interface incl. VDJ

Item no. 11045042

Features

DJ controller and interface incl. software Virtual DJ LE

  • USB controller with integrated audio interface for DJs - play, mix and scratch digital audio like vinyl records plus input and output options
  • Optimized for control of the powerful audio and video mixing software Virtual DJ
  • Supplied with Virtual DJ 6 Limited Edition, can be upgraded at discount price
  • Supports all standard codecs, e.g. MP3, WAV, WMA, OGG, M4A, AAC, AVI, MPEG
  • Integrated plug&play audio interface with high-resolution AD/DA converters (16 bits/48 kHz) for ultra-low latency operation under Windows XP/Vista/7 and Mac OS X
  • Adjustable DJ microphone input (XLR and 6.3 mm jack) and line input (stereo RCA) for the master signal
  • Master output (stereo XLR and stereo RCA) and booth output (stereo RCA) for PA applications with separate level controls and selectable source (PC signal or line input)
  • Master output bass control
  • Additional recording output (stereo RCA)
  • Headphones output (3.5 mm and 6.3 mm jack) with level control for direct monitoring
  • 2-channel mixer section:
  • 3-band EQ, gain control and level fader per channel
  • Ultra-smooth crossfader with adjustable curve
  • Cue function with 3 hot cues
  • Stereo LED level display
  • Extra large track encoder for quick music library browsing
  • Dual player section:
  • Touch-sensitive jog dials with mode selector: pitch bend, scratch, fast search
  • Dedicated sync function (auto beatmatching)
  • Master Tempo (tonal pitch remains constant)
  • Beat-accurate seamless loop
  • Effect units with controls for selection and parameters
  • Sample players with LED display, and controls for selection and level
  • Powered via USB or included PSU
  • Incl. USB cable
  • Fully functional home version of the software available online under virtualdj.com
  • Minimum system requirements PC: Windows XP(SP2)/Vista/7, Pentium IV , 1.6 GHz processor, 1 GB RAM
  • Minimum system requirements Mac: OS X 10.4.11, Core Duo, 1.66 GHz processor, 1 GB RAM
Technical specifications
Width:36 cm
Height:7 cm
Depth:26 cm
Type:USB controller
Power supply:
5 V DC, 500 mA via USB port or
5 V DC, 1000 mA via supplied PSU
Inputs:
DJ microphone:3-pin XLR and 6.3 mm jack, bal.
Line:stereo RCA
Outputs:
Master:3-pin stereo XLR and stereo RCA
Booth:stereo RCA
Rec:stereo RCA
Headphones output:3.5 mm and 6.3 mm jack, bal.
USB port (type B):2.0
Converter:16 bits
Sample rate:48 kHz
Dimensions:360 x 260 x 70 mm
Weight:1.7 kg
Packaging units
PU EAN Weight Dimensions
1 4026397407570 2,70 kg 41,5cm x 31cm x 13cm
5 4026397407655 14,70 kg 65cm x 44cm x 35cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
Service document
Name Version Language
11045042-Service-69232-1.000-en.pdf (471 KB) 1.000 en
All images
Name Version Language
11045042-Images.zip
