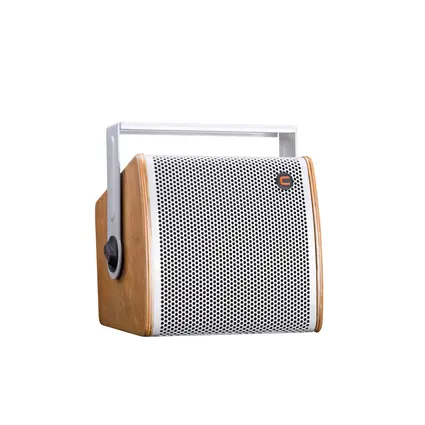

Big sound in small package, mounting bracket included
| Rated power: | 150 W RMS |
| Program power: | 300 W |
| Frequency range: | 95 - 18000 Hz |
| Sensitivity: | 94 dB (1W/1m) |
| Max. SPL: | 122 dB |
| Dispersion angle: | 80° Omnidirectional |
| Crossover frequency: | Passive |
| high-pass 2200 Hz, 12db/oct on LF | |
| low-pass 2200 Hz, 18db/oct on HF | |
| Recommended | |
| Cannot run full range | |
| Bi-amp mode only with external DSP processor | |
| high-pass 90-130 Hz, 24db/oct with iFIX13S or iFIX17S subwoofer | |
| Impedance: | 12 ohms |
| Color: | Nature, painted; any RAL color available on request |
| Attachment system: | Panning and tilting mounting bracket for ceiling or wall installation in most varying angles |
| Connections: | Input: Speakers via screw terminal |
| Speakers: | 1 x woofer (8") approx 20 cm with Ferritmagnet |
| Voice coil lows (2") approx. 5 cm | |
| 1 x compression tweeter highs (1") approx 2,5 cm | |
| Voice coil compression tweeter highs (1.75") approx 4.5 cm Diaphragmmaterial: treated titanium | |
| Material: | Birch multiplex, 15 mm, CNC made with tongue and grove assembly |
| Flying points: | 4 x M8 thread |
| Width: | 25 cm |
| Height: | 24.3 cm |
| Depth: | 25 cm |
| Weight: | 7.85 kg |
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397662641 | 9,10 kg | 33cm x 33cm x 33cm |
