Rugged full-range speaker system for PA and DJ applications

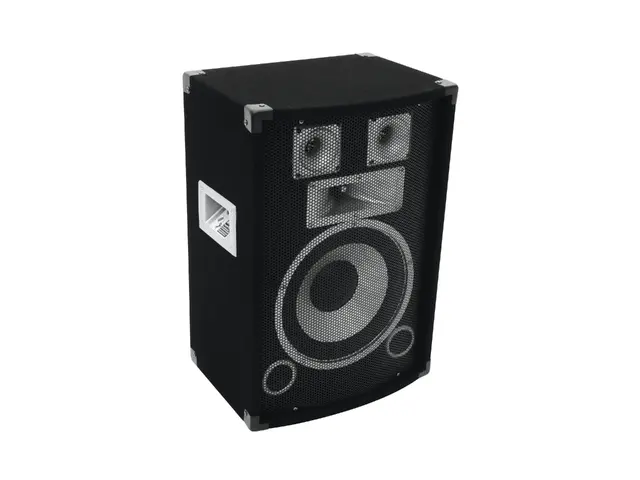

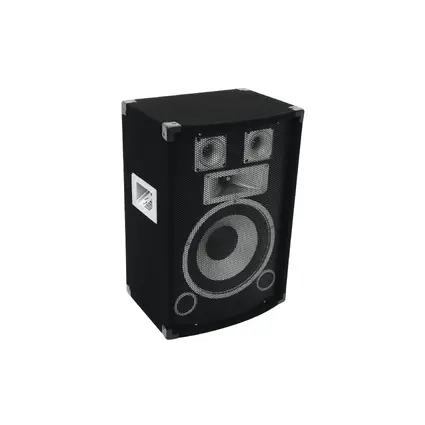

OMNITRONIC DS-103 MK2 3-Way Speaker 400W

The article is no longer in our assortment.

Features

Party speaker system for disco and rock music
Improved version with more power
3-way bass-reflex system
Speaker connections
Piezo super tweeter for powerful treble
High-quality horn for smooth mid-range
Optional subbass provides a powerful bass
Stable wooden housing with protective grille and tray handles
Scratch-resistant black felt covering
Stable protective steel corners
Flange for stand installation
Applicable as floor monitor, on a subwoofer, standing, on a speaker stand or wall holder
Compact dimensions for car transport
For mobile live and DJ applications

Technical specifications

Components:	25 cm woofer (10"), horn, 2 tweeters
Connection:	2 Speaker sockets
Sensitivity:	94 dB
Dimensions (H x W x D):	228 x 384 x 562 mm
Weight:	9,5 kg
Frequency range:	45 - 20000 Hz
Rated power:	200 W RMS
Program power:	400 W
Size of woofer:	(10") ca. 25 cm
Height:	22,8 cm
Depth:	56,2 cm
Width:	38,4 cm
Loudspeaker control (Impedanz):	8 Ohm

Packaging units

PU	EAN	Weight	Dimensions
1	4026397449211	11,75 kg	40cm x 31cm x 59,5cm

Support

Spare parts

Loading spareparts. Please wait...

Downloads

User manual

Name	Version	Language
11037111-Manual-66333-1.00-de_en.pdf (1 MB)	1.00	de_en

Catalog pages

Name	Version	Language
11037111-Page-97783-25.00-de.pdf (243 KB)	25.00	de
11037111-Page-97884-25.00-en.pdf (242 KB)	25.00	en
