Rugged full-range speaker system

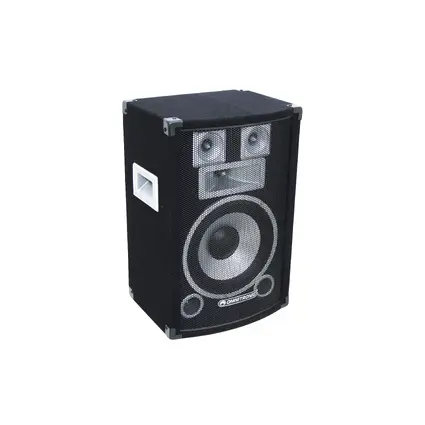

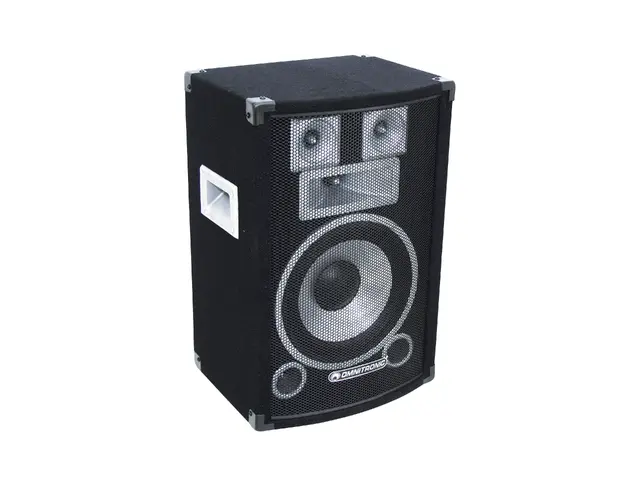

OMNITRONIC DS-103 3-way speaker, 250 W

Name: OMNITRONIC DS-103 3-way speaker, 250 W
Brand: OMNITRONIC

Rugged full-range speaker system

OMNITRONIC DS-103 3-way speaker, 250 W

The article is no longer in our assortment.

Item no. 11037110

Print product

Product badge

High performance at a low price: the OMNITRONIC DS-series! Available in four differently powered versions, the DS-series provides the right speaker-system for almost every need. The stable wooden scratch-resistant housing with felt cover is extremely rugged, which makes this series also perfect for mobile DJs.

Features

Rugged full-range speaker system

3-way party speaker system for disco and rock music
Piezo super tweeter for powerful treble
High-quality horn for smooth mid-range
Bass-reflex system
Optional subbass provides a powerful bass
With tray handles
Stable wooden housing scratch-resistant, black felt covering
Strong protective grille for perfect protection
With stable protective steel corners
Can be used lying, standing, on a subwoofer, on a speaker stand or stand
With flange for speaker stand installation etc.
Compact speaker system for car transport
Ideal for mobile discotheques or for permanent installation in party rooms etc.

Technical specifications

Frequency range:	50 - 18000 Hz
Width:	37 cm
Height:	55 cm
Depth:	28 cm
Weight:	11,10 kg
Rated power:	125 W RMS
Program power:	250 W
Components:	25 cm woofer (10"), horn, 2 tweeters
Connection:	2 Speaker sockets
Maximum SPL:	98 dB
Impedance:	8 ohms
Dimensions (H x W x D):	550 x 370 x 280 mm

Packaging units

PU	EAN	Weight	Dimensions
1	4026397199093	12,05 kg	38cm x 31cm x 58cm

Support

Spare parts

Loading spareparts. Please wait...

Downloads

User manual

Name	Version	Language
11037110-Manual-15118-1.100-de_en.pdf (5 MB)	1.100	de_en

Data sheet

Name	Version	Language
11037110-Datasheet-14527-1.000-de_en.pdf (294 KB)	1.000	de_en
