8-channel mixer with 6 outputs and matrix
OMNITRONIC MZD-860 Matrix Zone Distributor

svg
3 U
svg
OMNITRONIC

8-channel mixer with 6 outputs and matrix

OMNITRONIC MZD-860 Matrix Zone Distributor

Item no. 10304115

The OMNITRONIC MZD-860 is a matrix zone distributor of 6 inputs for units with line level (e.g. CD player) and microphones (also phantom-powered) which are freely assignable to each of the 6 outputs. A further stereo line channel connects four units with line level and allows for free assignment. Thus it's possible to supply 6 different PA zones with a mono output by routing different input signals to these zones without having to change the cable configuration. It's also possible to obtain 6 outputs with different mixing as every input has its own level control.
Features

8-channel mixer with 6 outputs and matrix

  • 6 microphone/line channels, switchable at the front, with separate gain controls, 2-band equalizer, level control and clip LED
  • 1 stereo line channel with 4-way input selector, gain control, 2-band equalizer, level control and clip LED
  • Matrix input assignment: each input channel is freely assignable to each of the 6 outputs
  • Each microphone input with low-noise preamplifier and optional +48 V phantom power
  • 6 mono outputs with level control and 6-digit LED level meter
  • Color illuminated buttons

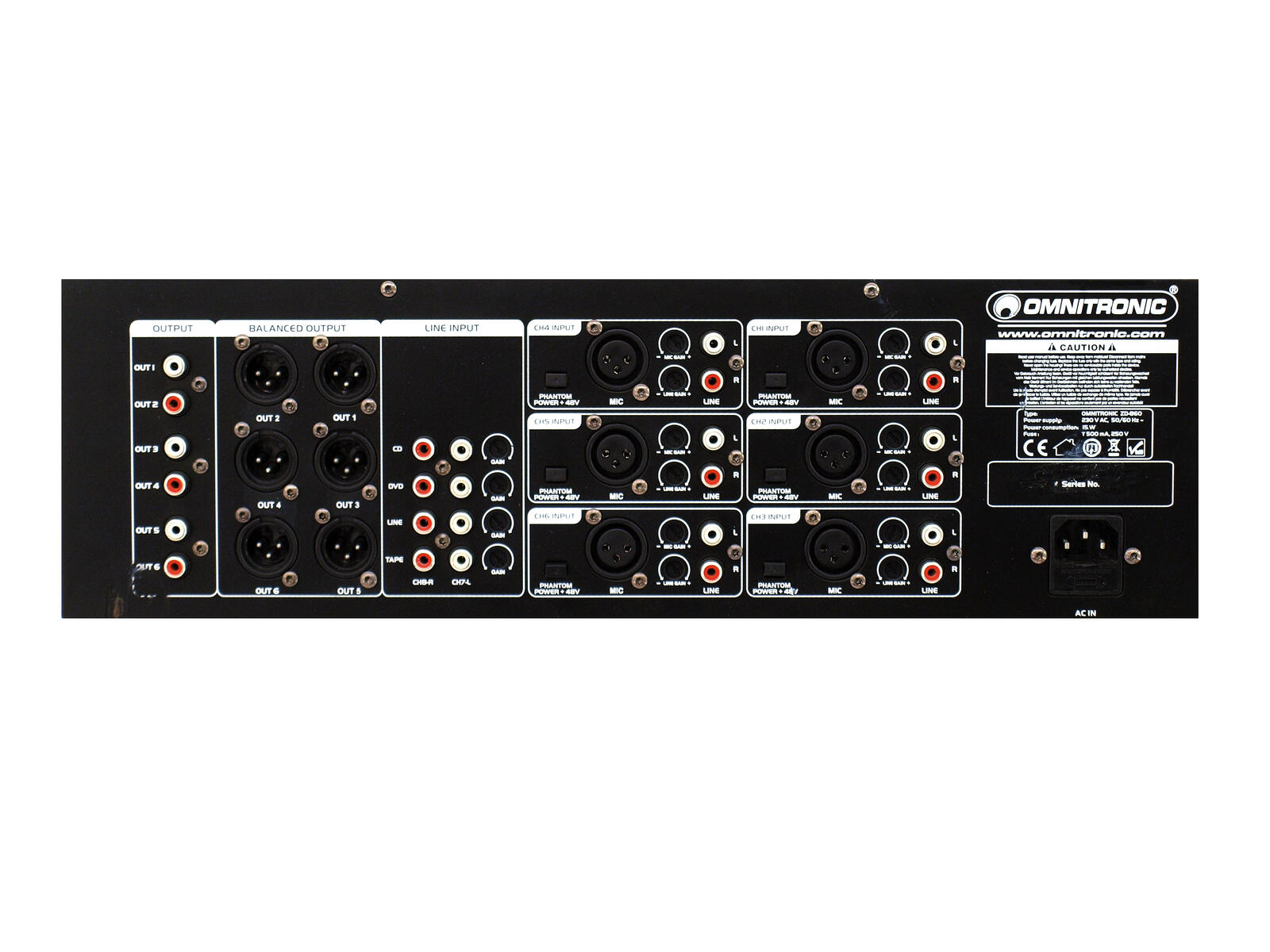

  • Inputs: 6 x line (stereo RCA), 6 x microphone (XLR), 4 x aux (stereo RCA)
  • Outputs: 6 x master (optionally XLR or RCA)
  • Rack installation, 3 U
  • Housing design: (19") 48.3 cm rack installation 3 U
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:15,00 W
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Frequency range:20 - 20000 Hz
Housing design:(19") 48.3 cm rack installation 3 U
Width:48,3 cm
Height:13,35 cm
Depth:200 cm
Weight:4,75 kg
Input impedance:20 kohms (XLR), 10 kohms (RCA)
Output impedance:300 ohms (XLR), 150 ohms (RCA)
Input gain:+12 dB to +60 dB (mic), 0 dB to +12 dB (line)
Channel level:~ to +6 dB/ 0.5 dB
Output level:~ to +6 dB/ 0.5 dB
7 x EQ treble:±12 dB
7 x EQ low:±12 dB
S/N ratio:75 dB (mic), 85 dB (line)
THD:1% (mic), 0.05 % (line)
Packaging units
PU EAN Weight Dimensions
1 4026397374254 5,40 kg 55cm x 26cm x 21cm
4 4026397380736 22,80 kg 57cm x 54,5cm x 43cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
10304115-Manual-43383-1.000-de_en.pdf (4 MB) 1.000 de_en
All images
Name Version Language
10304115-Images.zip
Publications
main catalog 2019 St. E #28
On page: 26
Size: 284 MB
