Données techniques

Alimentation électrique:	115/230 V CA, 50/60 Hz
Puissance totale de raccordement:	1300,00 W
Plage de fréquence:	120 - 18000 Hz
Dimension:	Largeur : 42 cm Profondeur : 27,5 cm Hauteur : 25 cm
Poids:	22,50 kg
Top:
Rated power:	150 W RMS
Program power:	200 W
Components:	20 cm woofer (8"), 2 cm horn (0.75")
Connection:	1 Speaker socket
Sensitivity:	99 dB
Maximum SPL:	121 dB
Impedance:	4 ohms
Crossover frequency:	2.5 kHz
Dispersion angle:	90° x 40°
Dimensions (H x W x D):	420 x 275 x 250 mm
Subwoofer:
Rated power:	2 x 300 W RMS
Program power:	2 x 450 W
Components:	38 cm woofer (15"), dual voice-coil
Inputs:	2 x XLR, 2 x 6.3 mm jack
Through:	2 x XLR
Outputs:	2 Speaker sockets
Sensitivity:	101 dB
Maximum SPL:	127 dB
Impedance:	8 ohms
Dimensions (H x W x D):	545 x 455 x 640 mm
Amplifier:
Total power output:	900 W RMS
Nominal power output satellite:	2 x 150 W RMS / 4 ohms
Nominal power output subwoofer:	600 W RMS (300 + 300 W)
Min. input sensitivity:	0.775 V
Control elements:	Power switch, Gain-control (one per channel), Low/Mid/High-equalizer, Master-control, Ground Lift, limiter
LED indicators (per channel):	Power, Signal/Limit
Protection circuits:	Short-circuit, DC-protection-circuit, Thermal protection-circuit, Softstart, opto-limiter and subsonic filter
Equalizer:
Tone control/channel:
Treble:	±10 dB at 10 kHz
Middle:	±10 dB at 1.3 kHz
Bass:	±10 dB at 75 Hz
Active crossover:
Crossover frequency:	50-500 Hz, -3 dB

Unités de conditionnement

UC	EAN	Poids	Dimension
1	4026397181517	24,00 kg	56cm x 32cm x 48cm
1	4026397181586	59,50 kg	72,5cm x 52cm x 61cm

Pièces de rechange

Transistor C 5200 NPN

Relay 24V/30A AS-900 (Powersupply)

FUTURELIGHT bridge rectifier KBPC 3510

Téléchargements

Spécifications

Nom	Version	Langue
Spécifications en PDF
Étiquette de l'article
Spécifications en PDF neutre
Étiquette de l'article neutre

Illustration

Nom	Version	Langue
11038810-Illustration-9614-de.pdf (35 KB)	0.0000	de
11038810-Illustration-9670-de.pdf (104 KB)	0.0000	de
11038810-Illustration-37866-Ring-bolt-M10-50mm-de.pdf (12 KB)	0.0000	de

Fiche technique

Nom	Version	Langue
11038810-Fiche_technique-9603-1.0000-de.pdf (2 MB)	1.0000	de
11038810-Fiche_technique-9604-1.0000-en.pdf (2 MB)	1.0000	en

Document technique

Nom	Version	Langue
11038810-Service-15943-1.0000-de.pdf (312 KB)	1.0000	de

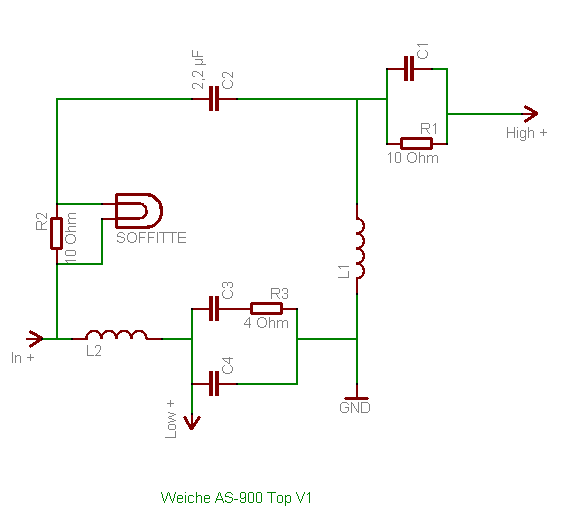

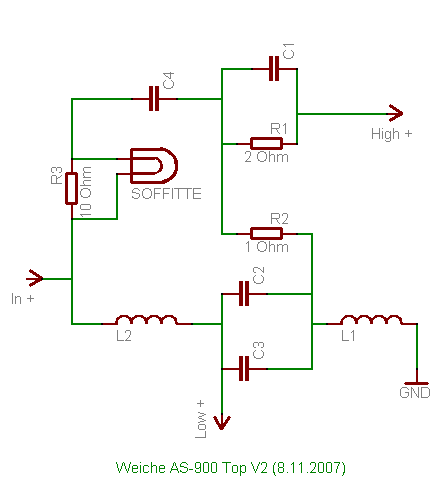

11038810-Service-41891-Schaltung-Crossover-de.pdf (725 KB)	0.0000	de

Toutes les images

Nom	Version	Langue
11038810-Images-.zip

OMNITRONIC AS-900 Active system, 900 watt

OMNITRONIC AS-900 Active system, 900 watt

L'article n'est plus disponible.

No. 11038810

Système actif complet

Two-way satellite-system consisting of two tops and one subwoofer
Due to compact transportation size ideal for solo entertainers, mobile discotheques and small bands
Easy transportation via 4 wheels
Easy-to-use complete system with amplifiers, equalizer, limiter and crossover
Ground Lift-switch against humming
Many protection-circuits for optimized equipment-protection: opto-limiter and subsonic filter for protection from extremely low frequencies
Rugged full-range top speaker in a stable wooden housing
Trapezoidal housing shape for easy clustering
Constant directivity horn with coil-driver
Tops with passive 2-way crossover
Powerful, dry bass via voluminous housing with bass-reflex-system
Balanced frequency range with high sound-pressure
Very high durability
Speaker connection via lockable Speaker-plugs
Housing made of 15-mm (top) or 18-mm (sub) wood
Scratch-resistant lacquer surface
Impact-resistant steel grille with acoustic foam
With flange for speaker-stand installation etc.
Bass-flange with M20 thread for safe installation
Tops can be used lying, standing, on the subwoofer, on a speaker-stand or stand or suspended
Subwoofer can be used lying or standing
Compact speaker-system for car transport
Can be operated mono or stereo
With XLR-Through-sockets for connecting further systems
Large amplification systems can be realized via several AS-900 systems
Ideal as PA-system for mobile use
Delivery includes two 5-meter Speaker-cables
Speaker-stands, connection-cables and transportation bag must be ordered separately
