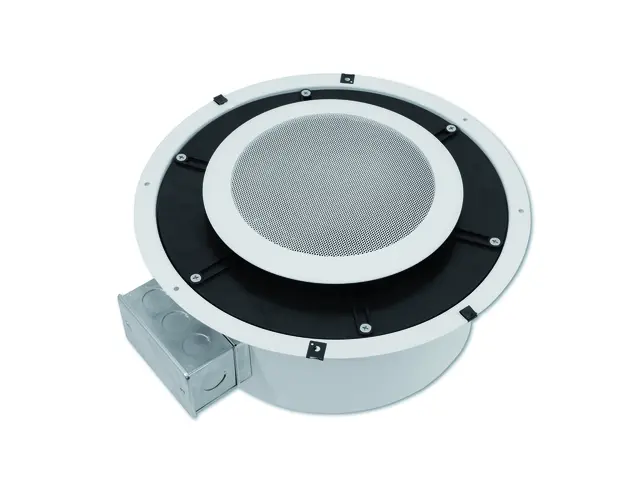

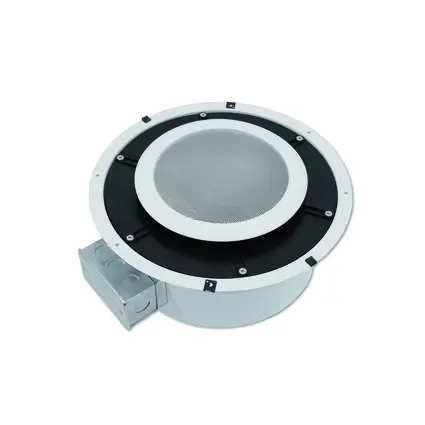

HiFi ceiling mount speaker with firedome
OMNITRONIC GCS-530 Ceiling speaker 30W/pa

HiFi ceiling mount speaker with firedome-MainBild

OMNITRONIC

HiFi ceiling mount speaker with firedome

OMNITRONIC GCS-530 Ceiling speaker 30W/pa

The article is no longer in our assortment.

No. 80710111

Here you find the manual and downloads for
OMNITRONIC GCS-530 Ceiling speaker 30W/pa

Features

HiFi ceiling mount speaker with firedome

2-way system with 13 cm woofer (5") and 1.5" tweeter
For 8-ohm and 100 V systems
Front-mounted 4-step power selector
Steel firedome for safety in case of fire
Sturdy steel grille in off-white
Installation via drill holes in the housing
Incl. mounting bracket for secure installation

Technical specifications

Frequency range:	65 - 22000 Hz
Speaker:	1 x woofer 5"
Dimensions:	Width: 36 cm Depth: 34,5 cm Height: 15 cm
Input:	100 V or 8 ohms
Components:	13 cm woofer (5"), 4 cm tweeter (1,5")
Rated power (100 V):	3.75/7.5/15/30 W RMS
Rated power (8 ohms):	30 W RMS
Sensitivity:	88 dB
Maximum SPL:	107 dB
Dimensions (L x W x H):	360 x 345 x 150 mm
Weight:	3.2 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397349122	8,90 kg	76,5cm x 37,5cm x 19,5cm
2	4026397368246	18,60 kg	76,5cm x 38cm x 42cm

Support

Spare parts

No spare parts available.

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
