Mobile network control system for LSD displays

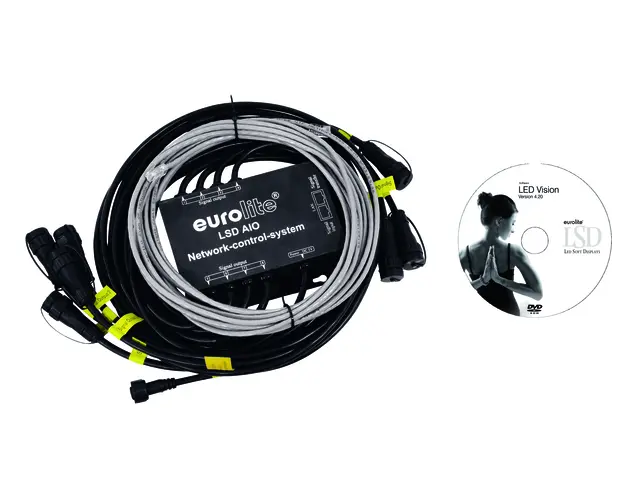

EUROLITE LSD AIO Network control system MK2

EUROLITE

Mobile network control system for LSD displays

EUROLITE LSD AIO Network control system MK2

Item no. 80503301

Features
  • Control unit and PC software LED Vision for controlling LSD displays (all models)
  • Ideal for mobile use with notebooks - requires no additional video card
  • For 128 x 128 pixels
  • Serial connection for up to 1024 x 896 pixels possible
  • 8 data signal outputs (each controls 128 x 16 pixels)
  • Ethernet input and output, LAN cable included
  • System requirements: separate 1 Gbps NIC, Windows 7 and better, >1.8 GHz CPU, >1 GB disk space
  • Create stunning light shows for your displays with the included media software
  • Supported files: text, word documents, all images (BMP, JPG, GIF, PCX...), all video (MPG, MPEG, MPV, AVI, VCD, DVD, SWF, RM, RMJ, ASF, MOV, etc.), flash animations, real-time camera signals
  • Compatible to MADRIX software
Technical specifications
Power supply:5 V DC via display
Signal connection:2 x RJ-45
Display outputs:8 x 15-pin DIN jack
Serial connection:max. 56 units
Dimensions (L x W x H):160 x 130 x 48 mm
Weight:1.9 kg
Packaging units
PU EAN Weight Dimensions
1 4026397605501 2,07 kg 35cm x 26cm x 8cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
Catalog pages
Name Version Language
00115092.pdf 27.00 de
00115529.pdf 27.00 en
Software
Name Version Language
00108101.zip 4.20 de
All images
Name Version Language
80503301.zip
