LED soft displays (economy version)
EUROLITE LSD-50E IP44 (H)2.4m x (W)1.6m

EUROLITE

LED soft displays (economy version)

EUROLITE LSD-50E IP44 (H)2.4m x (W)1.6m

Item no. 80503234

Features
  • Inexpensive economy version of the successful LED soft displays
  • Flexible displays with tri-color RGB LEDs (type SMD 3528) for bright and colorful projection of videos and graphics
  • Modular display concept allows the build-up of large areas, ideal for outdoor use with large viewing distances
  • Bendable and foldable PVC material suitable for various shapes, e.g. columns, circles, angles
  • Proven connector system with push buttons and hook-and-loop connections
  • Fast and uncomplicated installation, indoor and outdoor (IP44)

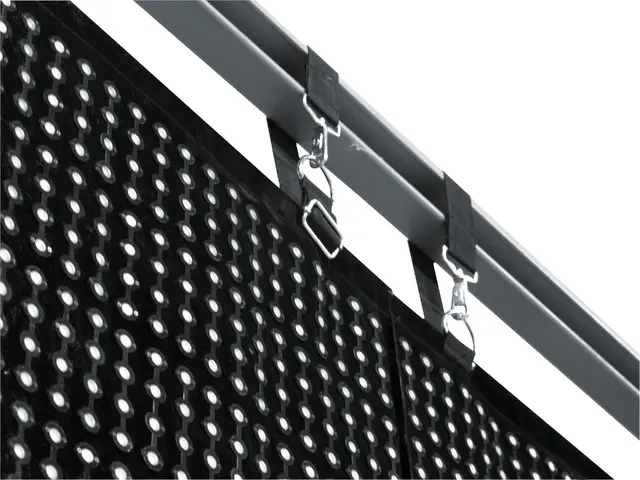

  • Truss suspension via built-in belts
  • Water-repellent and flame-resistant
  • Low weight and small volume for convenient transport
  • Easy maintenance - LEDs can be replaced without difficulty
  • Controllable via optional network components and PC software
  • All-in-one control system T9 (80503301): network interface and software LED Show T9 - ideal system for mobile use with notebooks with 1-gigabit NIC
  • Control system LED studio: receiver interface (80503311), PCI sending card and software LED Studio (80503130)
  • Recommended media software: MADRIX
  • Switch-mode power supply for operation between 100 and 240 Volts
  • Power output for passing on the power supply
  • Available in different sizes and pixel pitches
  • Custom sizes available upon request (in 0.8 m units)
Technical specifications
Power supply:90-260 V AC, 50/60 Hz
Resolution (W x H):32 x 48 pixels
Pixel pitch:50 mm
Pixel density:400/m²
Pixel configuration:tri-color RGB LEDs, type SMD 3528
Lifetime:approx. 100000 hours
Display port:DVI/RJ45
Display mode:synchronous to video source
Drive mode:1/8 scan
Screen resolution:max. 1280 x 1024 (LED Studio)
max. 1024 x 896 (LED Show T9)
Brightness:150 cd/m² (nits)
Viewing angle:120°
Frame rate:60 Hz
Data refresh rate:600 Hz
Colors:16.7 million (R 256, G 256, B 256)
Protection grade:IP44
Operating temperature:-10 to 45 °C
Humidity:10 to 90 %
Dimensions (W x H):1600 x 2400 mm
Weight:2.5 kg
Power consumption:10.00 W
IP classification:IP44
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397428759 15,15 kg 82cm x 56cm x 19,5cm
