LED beam bar with TILT movement and 7 W LEDs

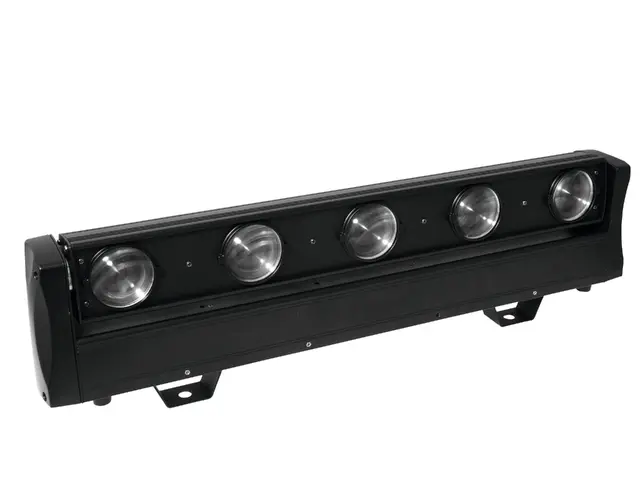

EUROLITE LED BBS-5 Bar

svg
EUROLITE

LED beam bar with TILT movement and 7 W LEDs

EUROLITE LED BBS-5 Bar

Features

LED beam bar with TILT movement and 7 W LEDs

  • Stepless vertical movement via control panel or DMX
  • Equipped with five 5 x CREE XM-L 7W cold white LEDs
  • 7, 8 or 12 DMX channels selectable
  • Each LED can be controlled individually
  • Suitable for pixel mapping applications
  • Perfect as beam effect into the audience
  • Standing or hanging installation possible
  • Functions: Built-in programs, dimmer and strobe effect with variable speed, sound-control, Master/Slave operation
  • Dimmer speed (step response) adjustable
  • Automatic position correction
  • Sound-controlled via built-in microphone
  • Adjustable microphone sensitivity via Control Board
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Comfortable addressing and setting via Control Board with LED display and four operating buttons with 14 segment display
  • Switch-mode power supply for operation between 100 and 240 Volts
  • Power connection via Neutrik PowerCon jack and included power cable
  • Feed-through output allows to power up to 8 devices
  • DMX control via every standard DMX controller
  • Preprogrammed in Light´J
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:60,00 W
Preprogrammed in:Light´J
Dimensions:Width: 66,3 cm
Depth: 8 cm
Height: 14,3 cm
DMX channels:7/8/12
DMX connection:3-pin XLR
Sound-control:via built-in microphone
Flash-rate:30 Hz
LED type:CREE XM-L 7W cold white
LED number:5
Maximum TILT-movement:240°
Beam angle:
Color temperature:6300-7000 K
Dimensions (L x W x H):663 x 80 x 143 mm
Weight:5.10 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
Packaging units
PUEANWeightDimensions
140263975084445,80 kg74cm x 15cm x 25cm
2402639750845112,35 kg76cm x 31cm x 29cm
