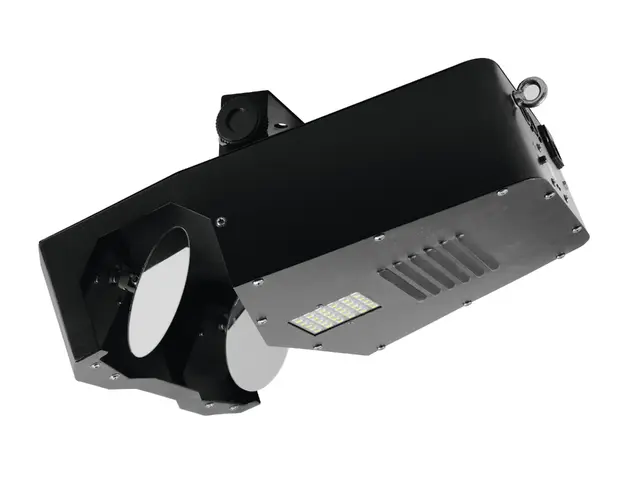

Double LED scanner and strobe effect
EUROLITE LED TWS-20 Hybrid Beam effect

EUROLITE

Double LED scanner and strobe effect

EUROLITE LED TWS-20 Hybrid Beam effect

Item no. 51918681

Features
  • Hybrid effect - LED multi-scanner and strobe in one device
  • Double multi-scanner with moving mirrors
  • Bright R, G, B, A and W LEDs are arranged behind the left and right lenses; white SMD LEDs are centered on the underside of the device
  • Operable in stand-alone mode or with DMX512 interface
  • DMX512 control possible via any commercial DMX controller (occupies max. 8 channels)
  • 2 or 8 DMX channels selectable for numerous applications
  • Sound-control via built-in microphone
  • Microphone sensitivity adjustable via rotary control
  • The colorful beams change their direction of movement at every bass-beat in sound controlled mode
  • Comfortable addressing and setting via control panel with LED display and four operating buttons
  • Functions: Auto mode, sound control, internal programs, strobe settings via DMX, Master/Slave
  • Equipped with 128 x 5 mm RGBAW LEDs as well as 36 x SMD LEDs in white
  • Convenient control also via Wi-Fi networks with your tablet or smartphone and the Eurolite Hybrid App plus the USB-DMX interface (item 51860120) and the light control software FreeStyler (freeware)
  • Eurolite Hybrid App is available for free in the App Store
  • Locking possibility at the mounting bracket
  • IEC power cord with safety-plug included in delivery
  • Switch-mode power supply allows for automatic power supply adaption between 100 and 240 volts without power selector
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
DMX channels:2/8
DMX connection:3-pin XLR
Sound-control:via built-in microphone
LED type:5 mm RGBAW / SMD-5050 white
LED number:128 / 36
Beam angle:15°
Dimensions (L x W x H):403 x 300 x 162.8 mm
Weight:4 kg
Power consumption:28.00 W
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397482850 5,05 kg 47,5cm x 39cm x 24cm
2 4026397484656 11,05 kg 48,5cm x 41cm x 50cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00075014.pdf 1.00 de/en
Catalog pages
Name Version Language
00086538.pdf 23.00 de
00087116.pdf 23.00 en
Video file
Name Version Language
00075908.flv 0.00 de/en/fr/es
All images
Name Version Language
51918681.zip
