Compact LED flower effect

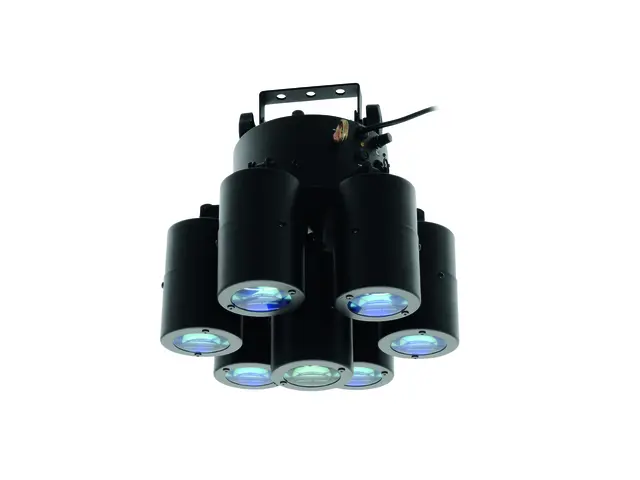

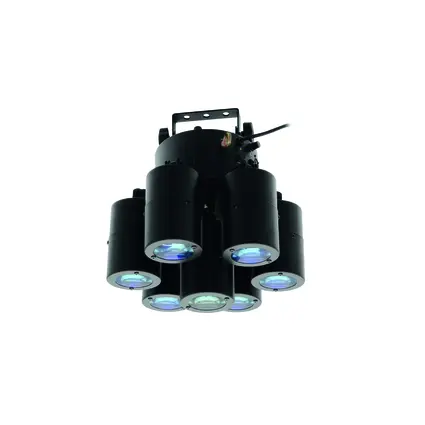

EUROLITE LED SVF-1 Flower effect

EUROLITE

Compact LED flower effect

EUROLITE LED SVF-1 Flower effect

Item no. 51918662

Features
  • Dynamic effect with adjustable lamp heads
  • Operable in stand-alone mode or DMX interface
  • DMX512 control possible via any commercial DMX controller (occupies 2 channels)
  • Sound-control via built-in microphone
  • Microphone sensitivity adjustable via rotary control
  • Functions: Auto mode, sound control, internal programs, Master/Slave
  • Addressing and setting via DIP switches
  • Equipped with 448 x 5 mm LEDs
  • Standing or hanging installation possible
  • Mounting bracket for installation on a truss system included
  • Ideal as centerpiece for small dance floors or for mobile use
  • Ready for connection via power cord with safety-plug
Technical specifications
Power supply:230 V AC, 50 Hz
DMX channels:2
DMX connection: 3-pin XLR
Sound-control:via built-in microphone
LED type:5 mm
LED number:448 (20R, 15G, 12B, 9W) x 8
Beam angle:25°
Dimensions (L x W x H):625 x 580 x 325 mm
Weight:6 kg
Power consumption:60.00 W
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397454932 6,55 kg 43,5cm x 43,5cm x 38,5cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00073902.pdf 1.10 de/en
Catalog pages
Name Version Language
00086542.pdf 23.00 de
00087120.pdf 23.00 en
Video file
Name Version Language
00072528.flv 0.00 de/en/fr/es
All images
Name Version Language
51918662.zip
