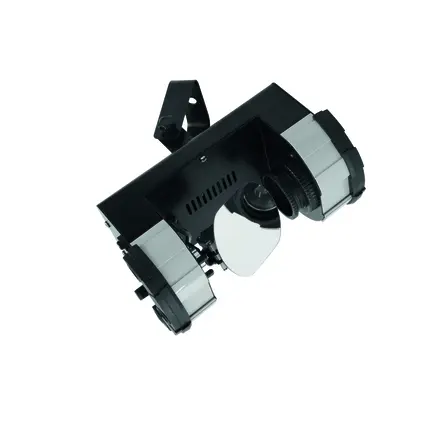

Spot with 10 W LED with narrow light beams in RGBW
EUROLITE LED PST-10 QCL Scan Light

EUROLITE

Spot with 10 W LED with narrow light beams in RGBW

EUROLITE LED PST-10 QCL Scan Light

Stock for approx. 12 wk(s)
119,50
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 51916151

Features

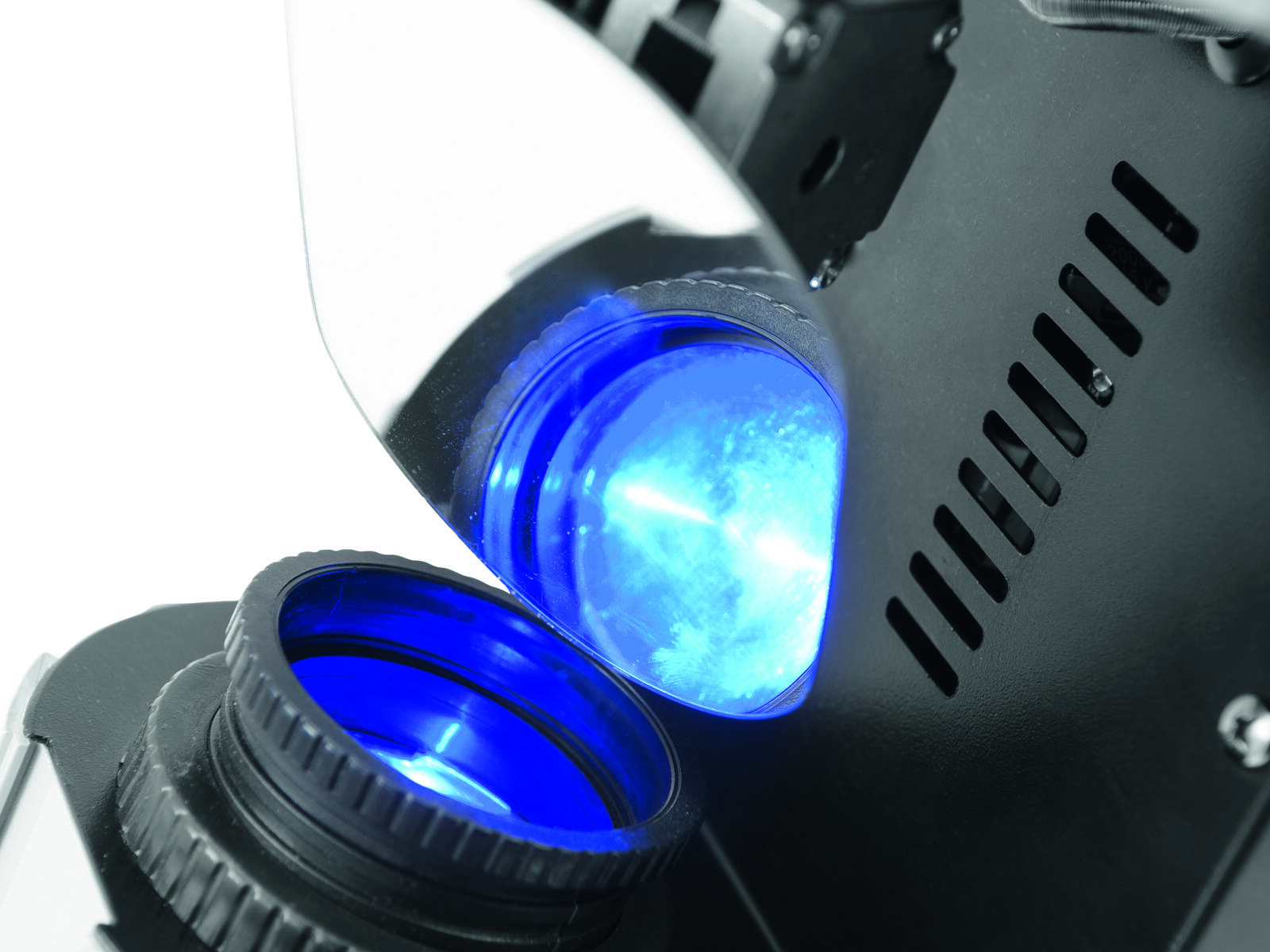

  • Equipped with one QCL LED in the colors red, green, blue and white
  • Extremely narrow beam angle to perfectly illuminate Mirror Balls, for example
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • DMX512 control possible via any commercial DMX controller (occupies 10 channels)
  • Sound-controlled via built-in microphone
  • Microphone-sensitivity adjustable
  • Addressing and setting via control board with LED display and four operating buttons
  • Additional controlling possibility via optional cable remote control
  • Switch-mode power supply for operation between 100 and 240 volts
  • Compact housing with mounting bracket and fixation screws
  • Ready for connection via included IEC power cord with safety power plug
  • Color generation: RGBW
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
DMX channels:10
DMX connection:3-pin XLR
Flash-rate:18 Hz
Sound-control:via built-in microphone
LED type:10 W QCL (red, blue, green, white)
LED number:1
Dimensions:260 x 135 x 265 mm
Lamp type:LED lamp
Weight:2 kg
Cooling fan:No, cooling by convection
IP classification:IP20
Power consumption:30 W
Laser class:Without laser
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397571301 2,72 kg 31,5cm x 22cm x 21cm
4 4026397571318 12,20 kg 48cm x 48cm x 34cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00099131.pdf 1.00 de/en
Support
Name Version Language
51916151 LED PC Control fixtures
00105924.zip
1.00 de
Catalog pages
Name Version Language
00097317.pdf 25.00 de
00098094.pdf 25.00 en
00115114.pdf 27.00 de
00115551.pdf 27.00 en
Video file
Name Version Language
00100610.flv 0.00 de/en/fr/es
All images
Name Version Language
51916151.zip
