Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	200 W
IP classification:	IP20
Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x PowerCON (gray), mounting version
Lamp type:	LED lamp
LED type:	1 x 100 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:	270° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540°, 630° exact positioning (16 bit resolution) auto position correction (feedback)
Equipment:	Gobos
Gobos:	Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 27mm Image diameter 22mm Gobos changeable Slot-in gobo system for easy gobo replacement Shake effect Gobo wheel with static gobos, 7 gobos and open
DMX channels:	17; 19; 26; 33
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan
Control:	Stand-alone; DMX; RDM; W-DMX by wireless solution; sound to light via microphone
Fixtures available for:	LED PC-Control 512; Light Captain; Light´J
Carrier frequency:	2.4 GHz
Beam angle:	13°
Beam angle (1/2 peak):	13°
Housing color:	Black
Dimensions:	Width: 34.3 cm Depth: 25 cm Height: 42.8 cm
Weight:	14.10 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397502763	15,85 kg	56cm x 44cm x 37cm

Spare parts

FUTURELIGHT OC-7 Omega bracket

PCB (DMX) 5-Pol In/Out (CON007C)

PCB (Power Supply) 28V/10,7A (A300a-28P)

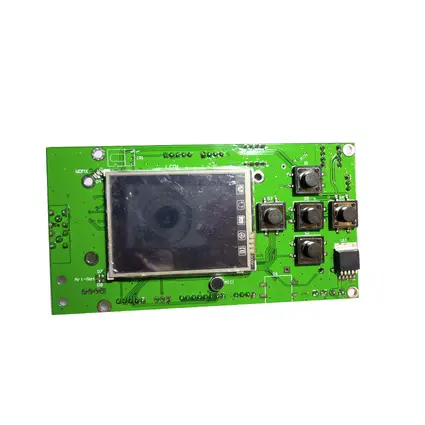

PCB (Display) DMH-100 (PCB DISP004D)

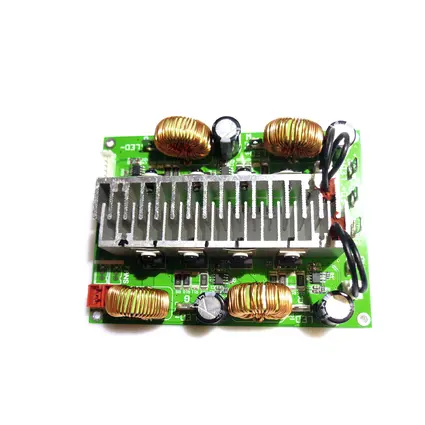

PCB (LED driver) DMH-100 (LED006A)

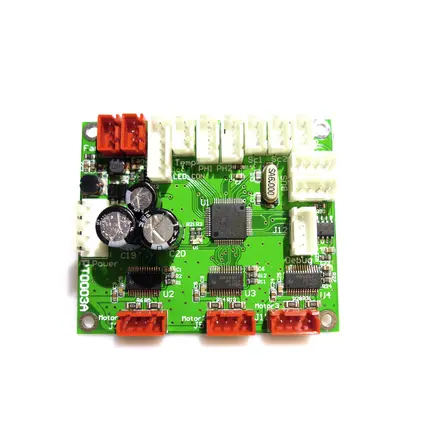

PCB (P/T) DMH-100 (PT003A)(M1,M2,M9)

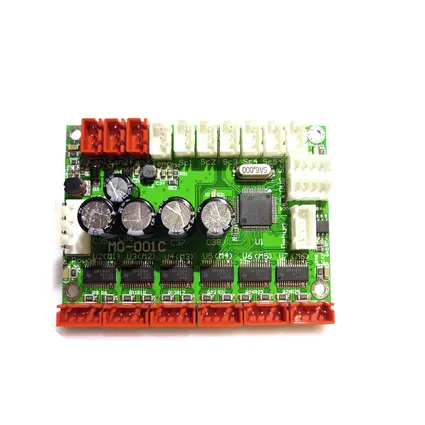

PCB (Motor Driving) DMH-100 (MO001C)

PCB (Magnet Sensor) SC003A (left pins)

PCB (Magnet Sensor) SC003A (Right pins)

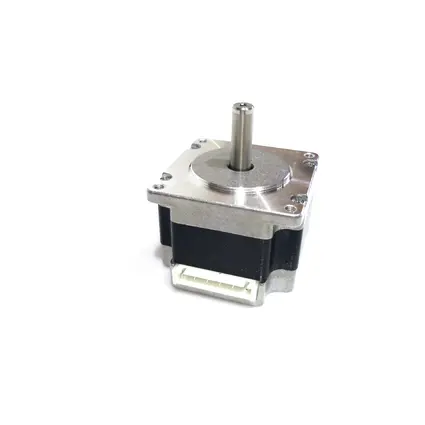

Step Motor HB-57KA001A

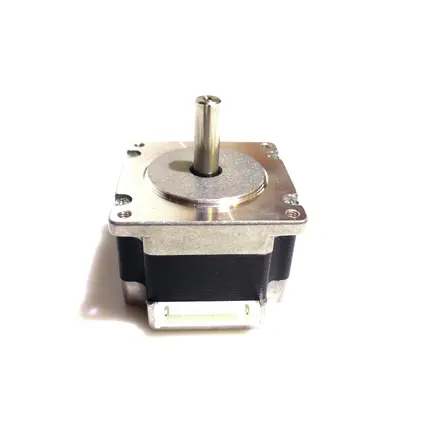

Step Motor HB-57KA0001

Steping Motor HB-42KB001 (Prism Mot)

Stepingmotor HB-42KA001

Steping Motor HB-42KA001-03 (PrismWh)

Steping Motor HB-42K1007-01 (GoboWh)

Step Motor HB-42K1007-02 (Gobo Wheel)

Gobo holder (rotating gobo) Ø=27mm DMH-90/100/150

timing belt Pioneer 72MXL DMH-100

NEUTRIK XLR Mounting Socket 3-pin NC3FDL-1

PCB (Light Sensor) DMH-90 (OP001B-HJ01)

Switch (on/off) 2-pin mini-4B 230V/5A

Fan 12V/0,14A 80x80x25mm (KD1208PTB1)

FUTURELIGHT Fan 12V/0,15A 60x60x15mm (DFH6015S) Sleeve

Pcb (DMX) EYE-7 (CON007A)

FUTURELIGHT Magnet (Resetposition) big 5mm

Cover DMH-90/DMB-60 (Head Cover) sw

Clamp ring (lens) Ø=27mm B-40

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

DMX protocol

Name	Version	Language
51841960-DMX-78012-1.0000-Software-version-1000-de_en.xls (122 KB)	1.0000	de_en
51841960-DMX-80571-1.1000-Software-version-1100-de_en.xls (154 KB)	1.1000	de_en
51841960-DMX-81089-1.2000-Software-version-1101-de_en.xls (155 KB)	1.2000	de_en

Support

Name	Version	Language
51841960-Support-79508-Eurolite-LED-PC-Control-de_en_es_fr.zip (10 KB)	0.0000	de_en_es_fr
51841960-Support-105891-1.0000-51841960-LED-PC-Control-fixtures-de.zip (3 KB)	1.0000	de

Software

Name	Version	Language
51841960-SW-79978-Firmware-V1001-de.zip (83 KB)	0.0000	de
51841960-SW-80647-Firmware-V1100-en.zip (230 KB)	0.0000	en
51841960-SW-81063-Firmware-V1101-de.zip (99 KB)	0.0000	de

Video file

Name	Version	Language
51841960-Video-79902-de_en_es_fr.flv (45 MB)	0.0000	de_en_es_fr

All images

Name	Version	Language
51841960-Images-.zip

Video link

https://www.youtube-nocookie.com/embed/nIDeoMUhHgw

FUTURELIGHT DMH-100 RGBW LED Moving Head

High performance LED moving head with 4in1 LED and unique color effect prism-MainBild

High performance LED moving head with 4in1 LED and unique color effect prism-Bild-1

FUTURELIGHT DMH-100 RGBW LED Moving Head

The article is no longer in our assortment.

No. 51841960

13°

High performance LED moving head with 4in1 LED and unique color effect prism

Equipped with a 100 W COB LED in RGBW colors
With integrated wireless receiver for WDMX operation (Wireless Solution - made in Sweden)
Color effect prism: Not only the gobos, also the colors are split
Stepless RGBW color mixture
Color presets
Effect wheel with rotating 3-facet prism and 8-facet prism and frost filter
Exact positioning via 16 bit PAN/TILT movement resolution
Exact color setting via 16 bit resolution
Motorized focus
Autofocus
Steplessly adjustable iris
Dimmer
Strobe effect with adjustable speed
Random strobe effect
Automatic position correction
PAN angle switchable between 540° and 630°
Switch-mode power supply, automatic power supply adaption between 100 and 240 Volts without power selector
Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
DMX-controlled operation or stand-alone operation with Master/Slave function
The scenes can be modified via the Control Board or via an external controller and loaded into the memory
Number of scenes can be changed individually
Software upload by optional accessories via DMX link
Power connection via Neutrik PowerCon jack and included power cable
Feed-through output allows to power another device
After 8 devices the fixtures must have a renewed connection with the power mains
DMX control via any standard DMX controller
1 LED 100 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
PAN angle switchable between 540° and 630°
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Gobos
Gobo effect; beam effect
Gobo wheel with rotating gobos, 7 gobos and open
gobos changeable
Slot-in gobo system for easy gobo replacement
Shake effect
Gobo wheel with static gobos, 7 gobos and open
The device is cooled by temperature-controlled fan
Control via stand-alone; DMX; RDM; W-DMX by wireless solution; sound to light via microphone
Fixtures available for LED PC-Control 512; Light Captain; Light´J
With a beam angle of 13°
