PRO beam moving head with 150 W COB LED and many features
FUTURELIGHT DMB-160 LED Moving Head

PRO beam moving head with 150 W COB LED and many features-MainBild

3°

PRO beam moving head with 150 W COB LED and many features

FUTURELIGHT DMB-160 LED Moving Head

The article is no longer in our assortment.

Check out the alternatives:

FUTURELIGHT DMB-100 LED Moving Head

alternative is the successor

Stock for approx. 12 wk(s)

Priceon demand

No. 51841807

Print product

Product badge

Features

PRO beam moving head with 150 W COB LED and many features

With glass lens
Extremely high light output
The scenes can be modified via the Control Board or via an external controller and loaded into the memory
Number of scenes can be changed individually
1 powerful LED 150 W COB (chip-on-board) cold white (CW)
Positioning within 540° PAN, 270° TILT
PAN angle switchable between 540° and 630°
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Gobo wheel with static gobos; prism 6-fold linear; prism 8-fold rotating; frost filter; focus motor-driven
Gobo effect
Color wheel with 14 dichroic filters plus open
rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 17 gobos and open
shake effect
The device is cooled by temperature-controlled fan
Control via RDM; DMX; stand-alone; W-DMX by wireless solution upgradeable; sound to light via microphone
Flicker-free
With a beam angle of 3°
Multicolor LCD display
Dimmer electronic
Preprogrammed in LED PC-Control 512; Light Captain

Package contents

1 x moving light, 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x mounting bracket, 1 x XLR cable

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	200 W
IP classification:	IP20
Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x PowerCON (gray), mounting version
Lamp type:	LED lamp
LED type:	1 x 150 W COB (chip-on-board) cold white (CW)
Max. TILT movement:	270° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540°, 630° exact positioning (16 bit resolution) auto position correction (feedback)
Equipment:	Gobo wheel with static gobos; prism 6-fold linear; prism 8-fold rotating; frost filter; focus motor-driven
Color generation:	Color wheel with 14 dichroic filters plus open Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with static gobos, 17 gobos and open Shake effect
DMX channels:	11; 13; 14; 17
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan
Control:	RDM; DMX; stand-alone; W-DMX by wireless solution upgradeable; sound to light via microphone
Preprogrammed in:	LED PC-Control 512; Light Captain
Projection:	Flicker-free
Beam angle:	3°
Beam angle (1/2 peak):	3°
Illuminance in Lux (lx):	Cold white (CW) 3m: 76776 lx, 6m: 18482 lx
Housing color:	Black
Display type:	Multicolor LCD display
Dimensions:	Width: 34,3 cm Depth: 25 cm Height: 42,8 cm
Weight:	15,55 kg
Noise classification:	Class 3 (clearly perceptible sounds)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397528657	18,05 kg	61cm x 44cm x 37cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

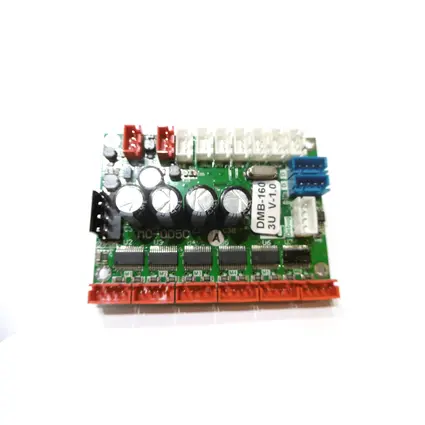

Pcb (Power supply) 28V/10A (A280a-28P)

PCB (LED Treiber) DMH-160 (LED002C)

PCB (DMX) 3-Pol/5-Pol In/Out (CON0020)

More 16 spare parts
