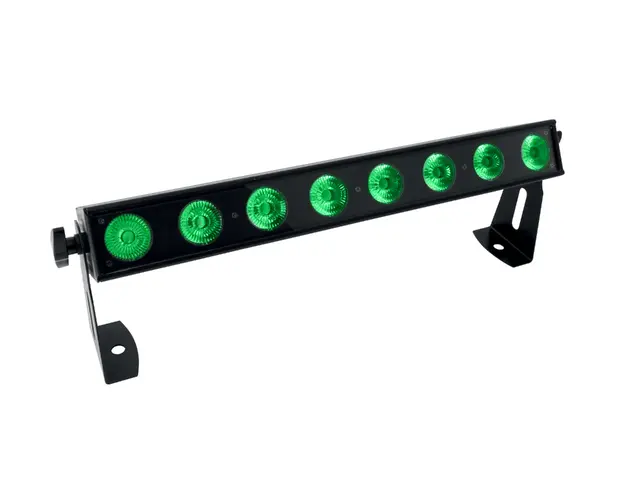

LED color changing bar with 10 W RGBWA+UV LEDs (6in1)
FUTURELIGHT POS-8 LED HCL Powerstick

22°

The article is no longer in our assortment.

No. 51841367

Features

LED color changing bar with 10 W RGBWA+UV LEDs (6in1)

Equipped with 8 hexacolor LEDs in the colors red, green, blue, amber, white and UV
Each LED can be controlled individually
Suitable for pixel mapping applications
Hanging as well as standing installation possible
Functions: Static colors RGBAW+UV color mixture, color presets, preset color temperatures, automatic color change, built-in programs, dimmer, strobe effect, Master/Slave operation
Dimmer speed (step response) adjustable
Adjustable microphone sensitivity
DMX-controlled operation or stand-alone operation with Master/Slave function
Comfortable addressing and setting via Control Board with LC display and four operating buttons
Switch-mode power supply for operation between 100 and 240 Volts
Power connection via Neutrik PowerCon jack and included power cable
Feed-through output allows to power up to 8 devices
DMX control via every standard DMX controller
8 powerful LEDs 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
Strobe effect; UV effect
Control via stand-alone; DMX; sound to light via microphone
Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE
Flicker-free
With a beam angle of 22°

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	85,00 W
IP classification:	IP20
Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x PowerCON (gray), mounting version
Lamp type:	LED lamp
LED type:	8 x 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
Flash rate:	0 - 30 Hz
DMX channels:	3 (HSV hue/saturation/value); 3 (HSI hue/saturation/intensity); 6; 8; 12; 48; 53
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Control:	Stand-alone; DMX; sound to light via microphone
Preprogrammed in:	Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE
Projection:	Flicker-free
Beam angle:	22°
Beam angle (1/2 peak):	22°
Beam angle (1/10 peak):	33°
Housing color:	Black
Dimensions:	Length: 55,5 cm Depth: 8 cm Height: 18,3 cm
Weight:	3,70 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397510829	4,20 kg	58cm x 16cm x 22cm
