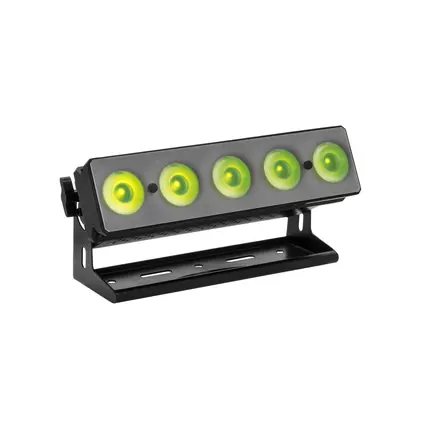

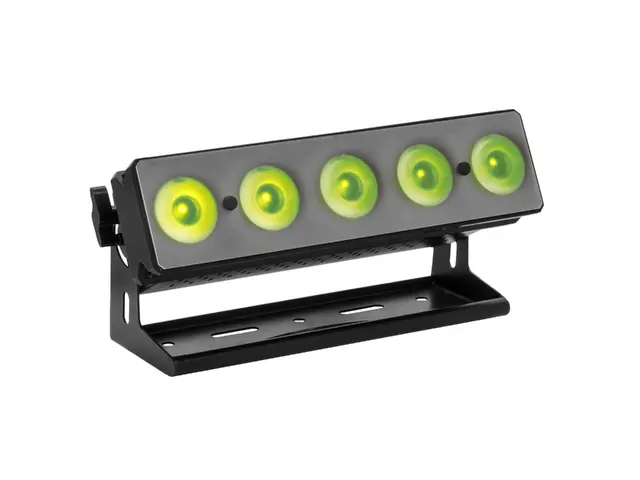

Bar with narrow beam 5 x 15 W RGBW LED and frost plate
FUTURELIGHT Stage Pixel Bar 5

svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
FUTURELIGHT

Bar with narrow beam 5 x 15 W RGBW LED and frost plate

FUTURELIGHT Stage Pixel Bar 5

Stock for approx. 12 wk(s)
449,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 51841358

Features

Bar with narrow beam 5 x 15 W RGBW LED and frost plate

  • Equipped with five high-power 4in1 LEDs in the colors red, green, blue and white
  • Particularly bright illuminating power of the LEDs
  • Collimator lenses for homogeneous beams with 4° beam angle
  • Removable frost filter
  • Each LED can be controlled individually
  • Quick and easy control via Art-Net
  • For use via appropriate lighting control software supporting Art-Net
  • Programmable color change speed, strobe effect and dimmer
  • Dimmer speed (step response) adjustable
  • Strobe effect with 1-18 flashes per second
  • RGBW color mixing
  • Static colors
  • Internal programs
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Manual, sound, DMX- or ArtNet-controlled operation
  • For large stage backgrounds in public places, main halls and lounges
  • Hanging as well as standing installation possible
  • Locking possibility at the mounting bracket
  • Addressing via control panel with LCD screen and four operating buttons
  • EtherCON terminals
  • Neutrik powerCON terminals for power linking up to 8 units
  • Switch-mode power supply for operation between 100 and 240 volts
  • LED: 5 x high-power 15 W 4in1 QCL RGBW (homogenous color mix)
  • Can be operated in 4; 6; 8; 20; 24 CH mode
  • Controling by ArtNet; Stand-alone; Sound to light via Microphone; DMX; RDM
  • Flicker-free projection
  • Effect: Strobe effect
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:100 W
IP classification:IP20
Power connection:Mains input PowerCON (blue), mounting version Power supply cord with safety plug (provided)
Power output:1 x PowerCON (gray), mounting version
LED:5 x high-power 15 W 4in1 QCL RGBW (homogenous color mix)
Flash rate:0 - 18 Hz
DMX channels:4; 6; 8; 20; 24
DMX input:1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version
Network connection:Protocol: ArtNet 3 via 2x RJ-45 Ethercon (F) mounting version
Control:ArtNet
Stand-alone
Sound to light via Microphone
DMX
RDM
Beam angle:
Beam angle (1/2 peak):
Beam angle (1/10 peak):
Housing color:Black
Dimension:Length: 44 cm
Depth: 16 cm
Height: 17.3 cm
Weight:6.15 kg
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397561081 7,20 kg 53,5cm x 27cm x 23cm
