Moving Head Wash with 3 W RGBW LEDs

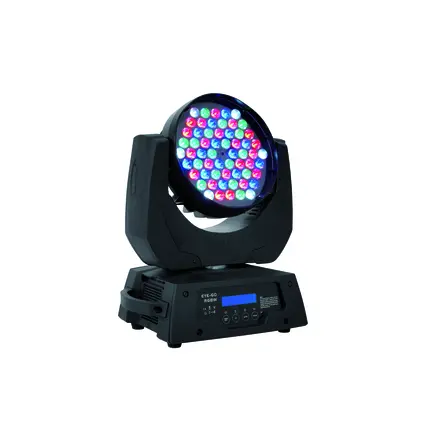

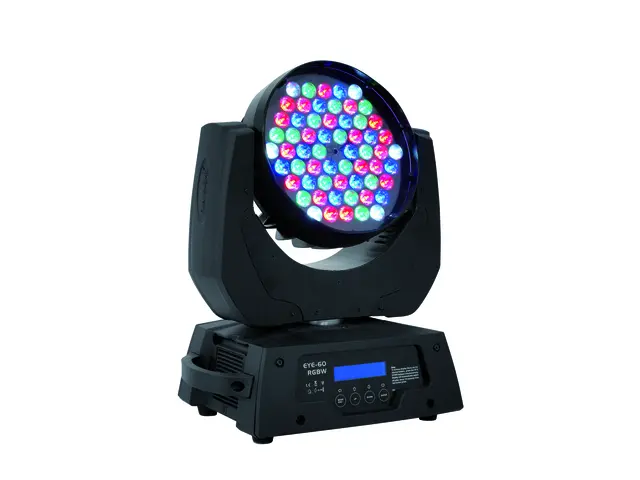

FUTURELIGHT EYE-60 LED Moving-Head Wash

FUTURELIGHT

Moving Head Wash with 3 W RGBW LEDs

FUTURELIGHT EYE-60 LED Moving-Head Wash

Item no. 51841337

Features

Moving Head Wash with 3 W RGBW LEDs

  • Equipped with 60 x 3 W LEDs: 22 x red, 17 x green, 15 x blue, 6 x white
  • Correction of the color temperature via 6 cold white LEDs possible
  • Long LED life
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • 56 preprogrammed scenes in Program Run for stand-alone operation
  • Number of scenes in Program Run can be changed individually
  • The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory
  • 7 built-in programs can be called up via DMX controller
  • Software-upload by optional FUTURELIGHT ULB-1 upload box via DMX link (from software version 2.0, 06/2010)
  • Sound-controlled via built-in microphone
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • PAN angle switchable between 630° and 540°
  • Switch-mode power supply
  • Automatic power supply adaption between 100 and 240 Volts without power selector
  • Stepless RGBW color changing
  • Programmable color-change speed and strobe effect
  • Random strobe effect
  • Lightbeam with 22° radiation angle
  • Blue LCD display
  • ESDC function (Easy Service Data Check) with battery-buffered Control Board for operation time readouts etc.
  • Strobe effect with 1-25 flashes per second
  • Masterdimmer
  • Rainbow effect
  • Control Board with LCD display and foil-keyboard for adjusting the DMX starting address, PAN/TILT Reverse, Program, Reset
  • RDMX (Remote DMX Addressing): DMX address setting via controller possible
  • Advantages of LED technology: long life, low power consumption, minimal heat emission, defacto maintenance free with brilliant light radiation
  • DMX control via every standard DMX controller
  • Control: Sound to light via Microphone
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:250 W
Max. TILT movement:1.5°
Max. PAN movement:2.5°
Flash rate:1 - 25 Hz
DMX channels:13
Control:Sound to light via Microphone
Beam angle (1/2 peak):22°
Length:310 mm
Width:31 cm
Height:38.5 cm
Depth:28.5 cm
Weight:8 kg
Device
Battery pack type:1 x Lithium ion 7.4 V, 2.24 Wh
DMX channels:13
DMX connection:3-pin XLR
Flash-rate:25 Hz
Maximum PAN-movement 630°:in 2.5 s
Maximum TILT-movement 265°:in 1.5 s
LED number:60
Beam angle:22°
Dimensions (L x W x H):310 x 285 x 385 mm
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397391114 9,45 kg 36cm x 30cm x 44cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
51841337-Manual-52444-1.200-de_en.pdf (4 MB) 1.200 de_en
DMX protocol
Name Version Language
51841337-DMX-48794-1.000-de_en_es_fr.xls (46 KB) 1.000 de_en_es_fr
Service document
Name Version Language
51841337-Service-55526-1.000-en.pdf (2 MB) 1.000 en
Software
Video file
Name Version Language
51841337-Video-51255-de_en_es_fr.flv (36 MB) 0.000 de_en_es_fr
All images
Name Version Language
51841337-Images.zip
