16 Bit LED Moving Head Wash with 1 W LEDs

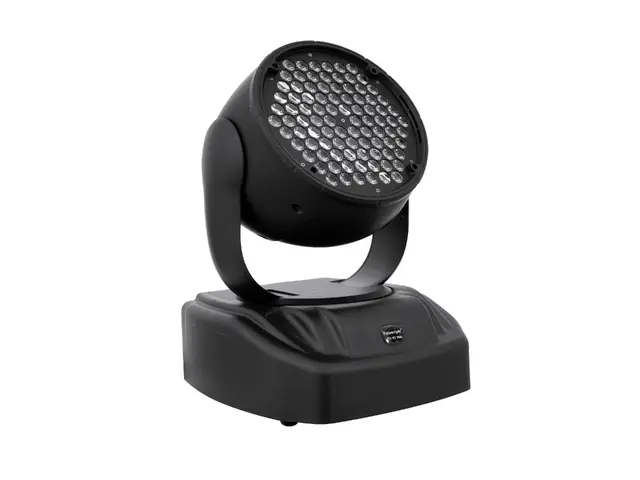

FUTURELIGHT EYE-90 RGB LED-Head Wash

FUTURELIGHT

16 Bit LED Moving Head Wash with 1 W LEDs

FUTURELIGHT EYE-90 RGB LED-Head Wash

Item no. 51841332

Features
  • Equipped with 90 x 1 W LEDs: 30 x red, 30 x blue, 30 x green
  • Long LED life
  • Stepless RGB color changing
  • Masterdimmer
  • Strobe effect
  • Built-in sequences
  • Compact housing
  • Positioning within 540° Pan and 270° Tilt
  • Vector and tracking mode
  • Advantages of LED technology: long life, low power consumption, minimal heat emission, defacto maintenance free with brilliant light radiation
  • Control board with 4-digit display for adjusting the DMX-starting address, Pan/Tilt Reverse, Program, Reset
  • DMX control via every standard DMX controller
Technical specifications
Power supply:230 V, 50 Hz AC ~
DMX channels:12
DMX connection:3-pin XLR
Flash-rate:18 Hz
LED number:90
Beam angle:38°
Length of base:375 mm
Width of yoke:335 mm
Height (head horizontal):460 mm
Weight:11.5 kg
Power consumption:230.00 W
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397394795 14,80 kg 43,5cm x 42cm x 54cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00052280.pdf 1.10 de/en
DMX protocol
Name Version Language
00049495.xls 1.00 de/en/fr/es
Video file
Name Version Language
00051055.flv 0.00 es/fr/en/de
All images
Name Version Language
51841332.zip
